Fender Mustang GTX50 GTX100 User Manual WIFI USE

Mustang GTX’s WiFi connectivity delivers easy wireless network access, enabling users to get the latest Mustang GTX firmware updates (see page 60). To get started, press the MENU utility button and use the ENCODER to scroll to “WIFI & BLUETOOTH,” then press the ENCODER on “WiFi”.

The default WiFi setting is “off,” indicated by a red box labeled “WIFI OFF.” Press the ENCODER again to turn WiFi on, indicated by a green box labeled “WIFI ON.” When WiFi is on, use the ENCODER to scroll through available networks; select a network by pressing the ENCODER on it. If a known network is not displayed, it can be entered manually by selecting the “ADD HIDDEN NETWORK” option at the end of the list of available networks and using the ENCODER to enter the characters (as shown on page 6). Once a network is chosen, select “CONNECT” from the menu shown by pressing the ENCODER on it (other options in this menu are covered on page 34).

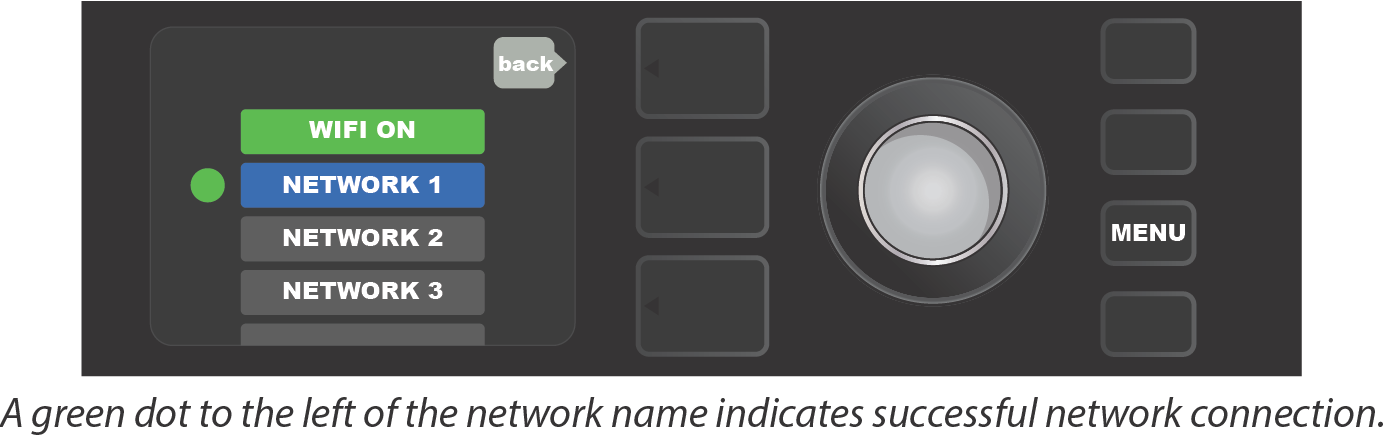

After choosing “CONNECT,” the amp will then prompt the entry of a password. To spell out a password, press the ENCODER once to activate the cursor and turn it to choose a character. Press ENCODER again to enter that character and move to the next; repeat until password is complete. When password is complete, press the top LAYER button (corresponding with onscreen prompt “done”). Successful network connection is indicated by a green dot to the left of the network name. All steps are illustrated below and on the following page.

Note that pressing the PRESET LAYER and CONTROLS LAYER buttons also enable closing out of some menus (indicated by an “x”) or returning to the previous step (indicated by the label “back”).

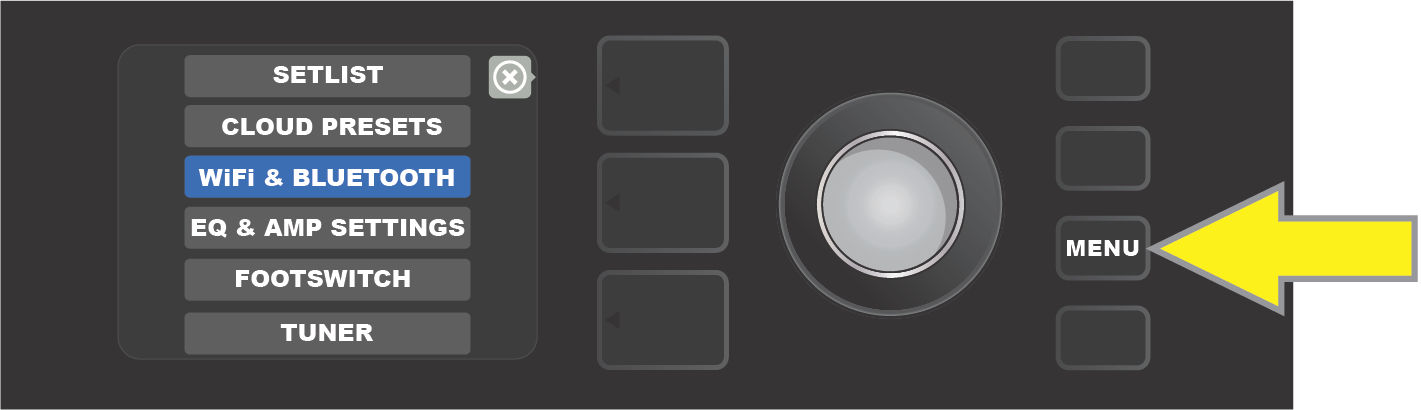

To enable WiFi, first press the MENU utility button.

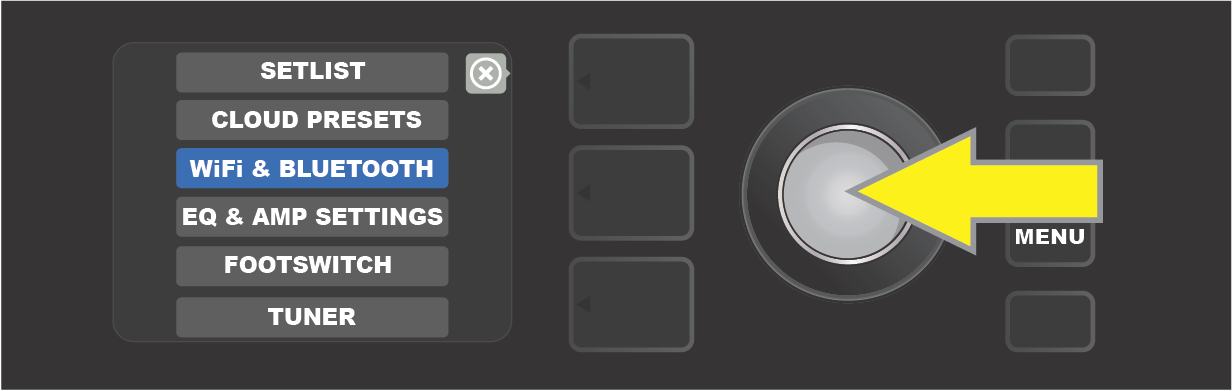

Use the ENCODER to scroll through the menu to “WiFi & Bluetooth,” then press the ENCODER and select “WiFi”.

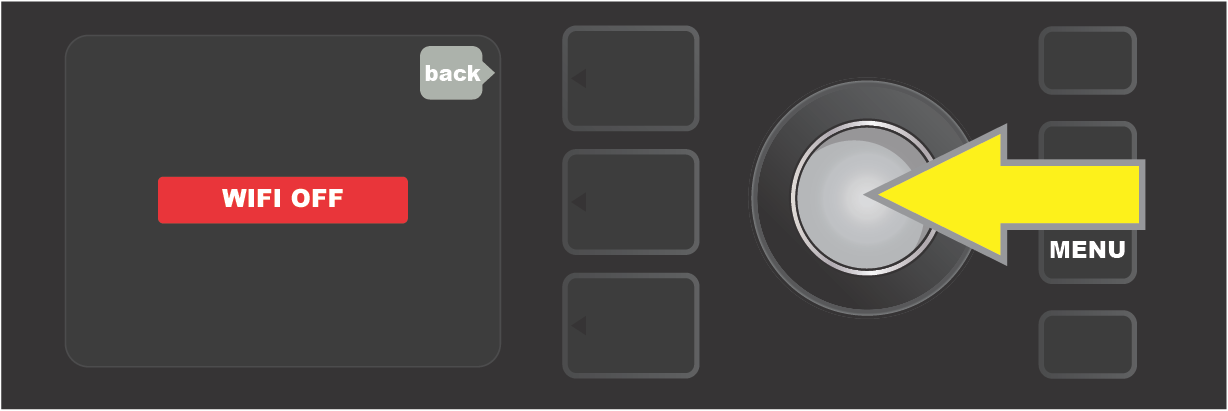

The default WiFi setting is “off” (labeled in a red box); press the ENCODER to turn WiFi on (labeled in a green box).

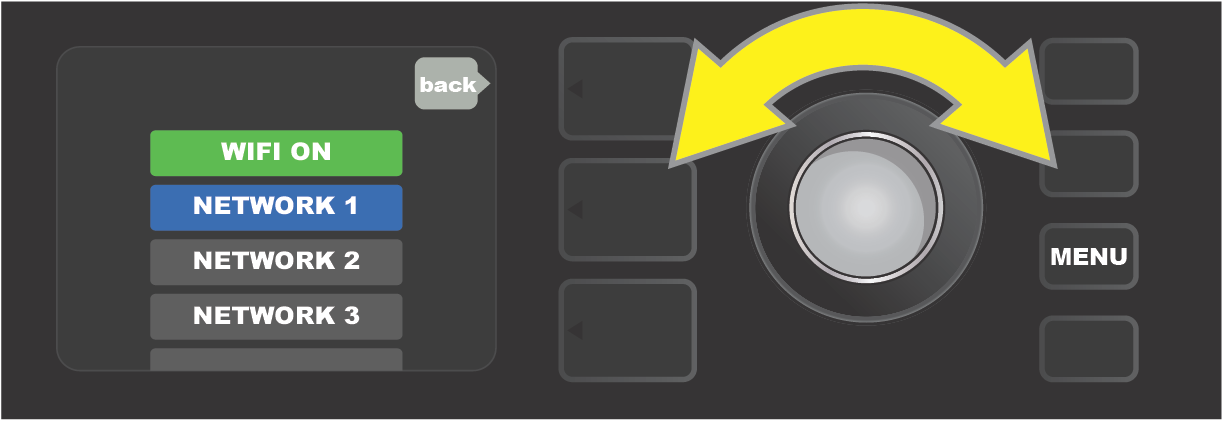

When WiFi is on (as labeled in green box), use the ENCODER to scroll through available networks; select a network by pressing the ENCODER on it.

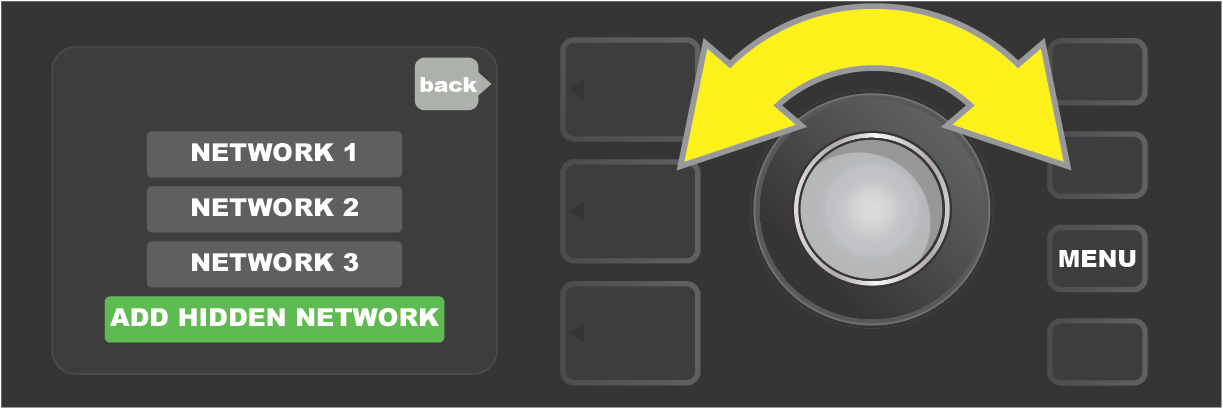

A network can be accessed manually by scrolling to and selecting “ADD HIDDEN NETWORK,” and entering characters by turning and pressing the ENCODER.

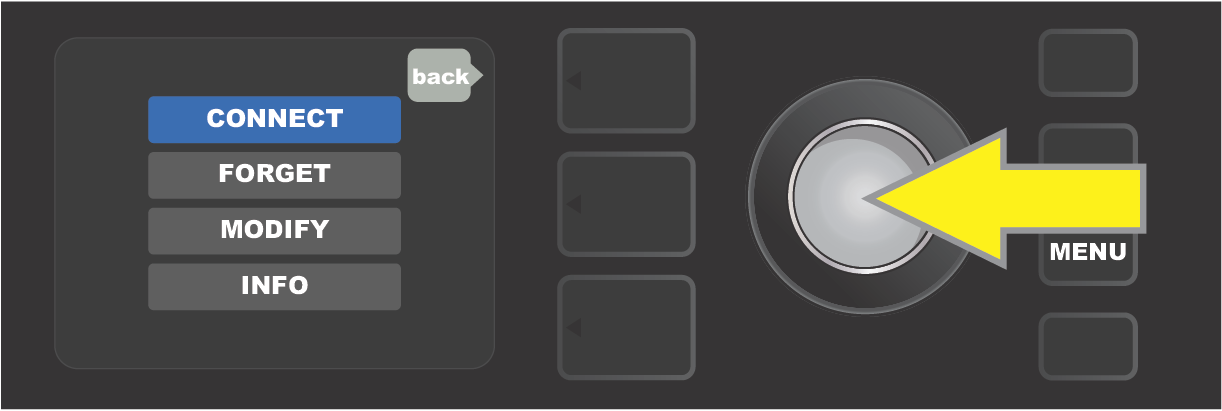

After choosing a network, select “CONNECT” from the menu shown by pressing the ENCODER on it (other options on this menu are covered on page 34).

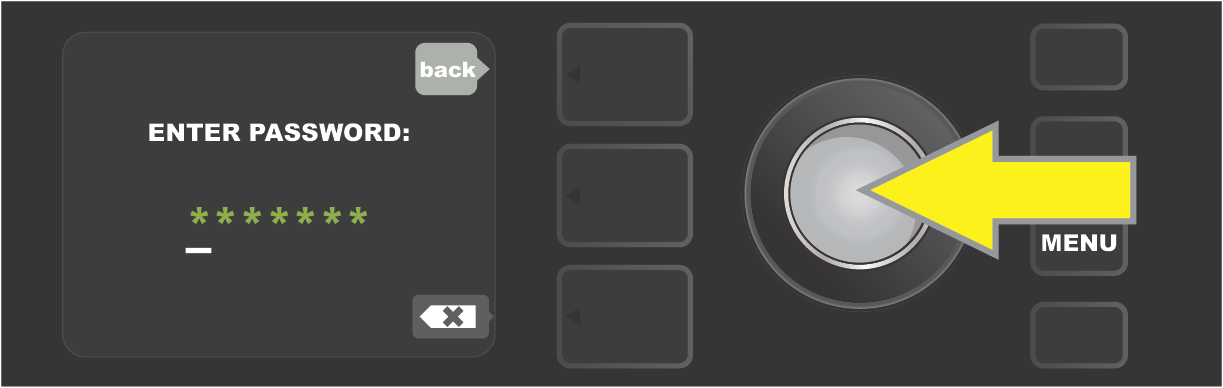

After selecting “CONNECT,” enter a password by turning and pressing the ENCODER to add each character.

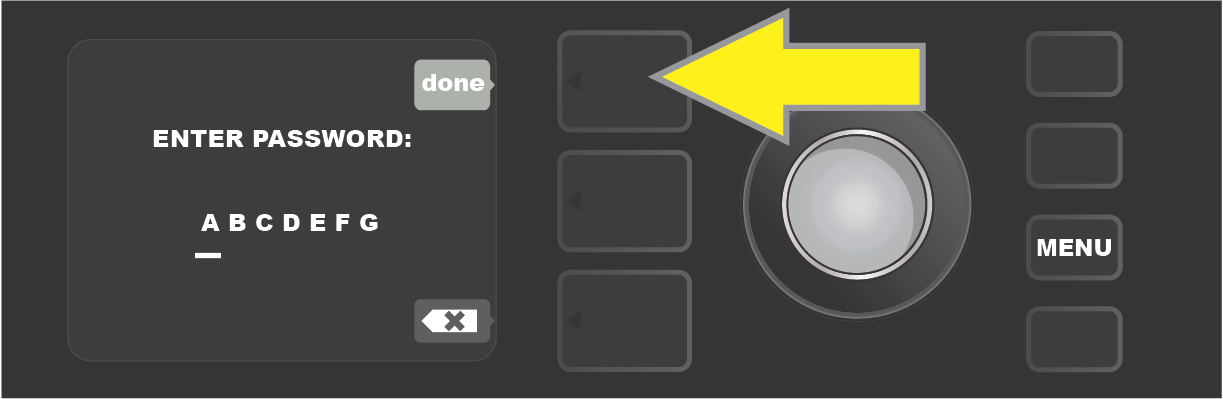

When password is complete, press the PRESET LAYER button (corresponding with onscreen prompt “done”).

When WiFi is turned on in Mustang GTX, there are other network menu options in addition to “CONNECT.” These are labeled “FORGET,”“MODIFY” and “INFO” (see illustration below). Use the ENCODER to scroll through and select one of these options, which are described below.

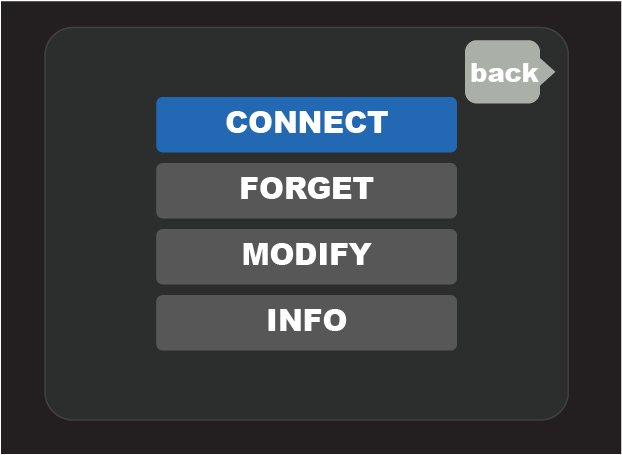

Close-up detail of DISPLAY WINDOW showing additional WiFi network options “FORGET,” “MODIFY” and “INFO”.

FORGET: For disconnecting a network and removing it from the amp’s memory. To re-establish a connection with a “forgotten” network, follow the steps for “ADD HIDDEN NETWORK” (pages 32-33).

MODIFY: For modifications to the current network’s displayed “SSID,”“PROTOCOL” and “PASSWORD” param-ters. Use the ENCODER to scroll to and select one of these parameters, then turn and press the ENCODER to enter individual characters until modifications are complete.

INFO: Displays the current network’s name (SSID), signal description, protocol, and connection status. This information can not be modified by the user.
