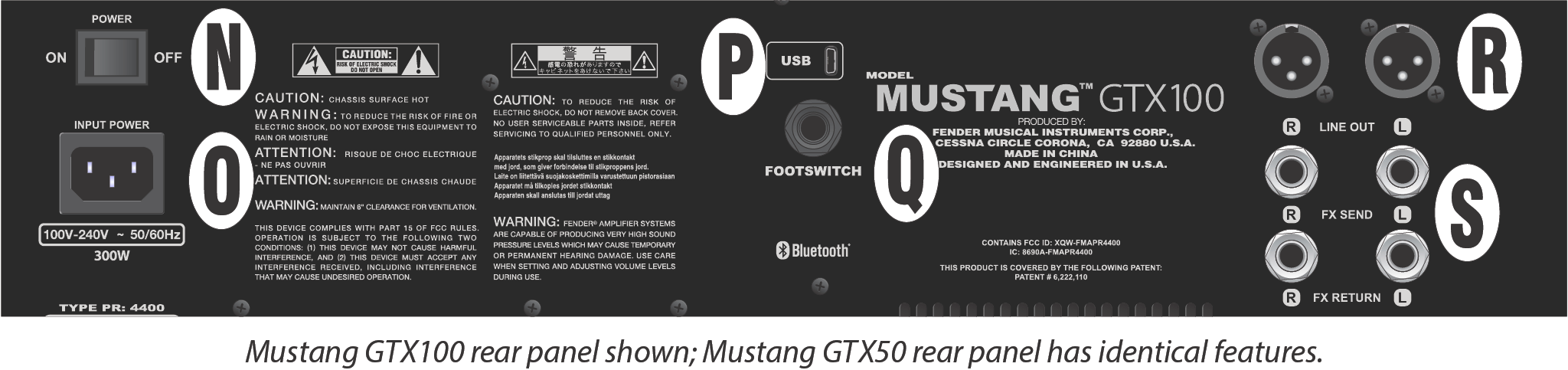

Fender Mustang GTX50 GTX100 User Manual REAR PANEL

N. POWER: Turns amplifier on and off.

O. IEC POWER INLET: Using the included power cord, connect to a grounded outlet in accordance with the INPUT POWER voltage and frequency specified at the power inlet.

P. USB PORT: Amp connection point for USB audio recording.

Q. FOOTSWITCH: Connect the GTX-7 footswitch. MGT-4 footswitch or EXP-1 Expression Pedal here.

R. LINE OUT: Balanced line outputs for connection to external recording and sound reinforcement equipment.

S. FX SEND/RETURN: Right/left send and return for stereo external effects use. Effects added here are “global” (not preset-specific) and act as the last elements in the signal path.
