Fender Mustang GTX50 GTX100 User Manual USB CONNECTIVITY

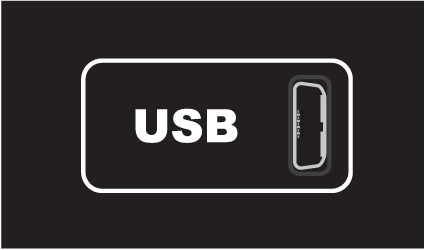

The Mustang GTX rear panel features a USB audio port for recording. Using a micro USB cable (not included), connect a computer with recording software to this port. No external driver is needed to connect to an Apple computer. To connect to a Windows-based computer, the user must download the ASIO driver setup with Fender Mustang device, available at www. fender.com/support/articles/fender-universal-asio-drive. Note that USB audio and Bluetooth audio streaming (page 35) can not be used simultaneously.

A gain control for the USB is located in the “EQ & AMP SETTINGS“ menu. Press the MENU utility button, then use the ENCODER to scroll to and select “EQ & AMP SETTINGS“, and then “LINE OUT/ USB GAIN”. Use the ENCODER to scroll to and select a new USB gain value (page 50).
