Fender Mustang GTX50 GTX100 User Manual BLUETOOTH USE

Mustang GTX amplifiers feature Bluetooth connectivity for easy pairing with streaming audio devices and the Fender Tone™ application. Favorite music streaming applications from the user’s audio device can be used to stream audio to Mustang GTX.

To enable Bluetooth, press the MENU utility button and use the ENCODER to scroll to “WIFI & BLUETOOTH,” then press the ENCODER on “BLUETOOTH”. The default Bluetooth setting is “off,” indicated by a red box labeled “BLUETOOTH OFF.” Press the ENCODER again to turn Bluetooth on, indicated by a green box labeled “BLUETOOTH ON.” Once Bluetooth is on, select “MUSTANG GTX” on the external device being connected to the amp. Users who wish to rename Mustang GTX on their external devices can do so by pressing the CONTROLS LAYER button corresponding to the “gear” icon in the DISPLAY WINDOW, and using the ENCODER to enter each character in a new name (as shown on page 6). Pressing the PRESET LAYER button enables closing out of a menu (indicated by an “x” in a circle) or returning to the previous step (indicated by the label “back”).

Note that Bluetooth audio streaming and USB audio (page 38) can not be used simultaneously.

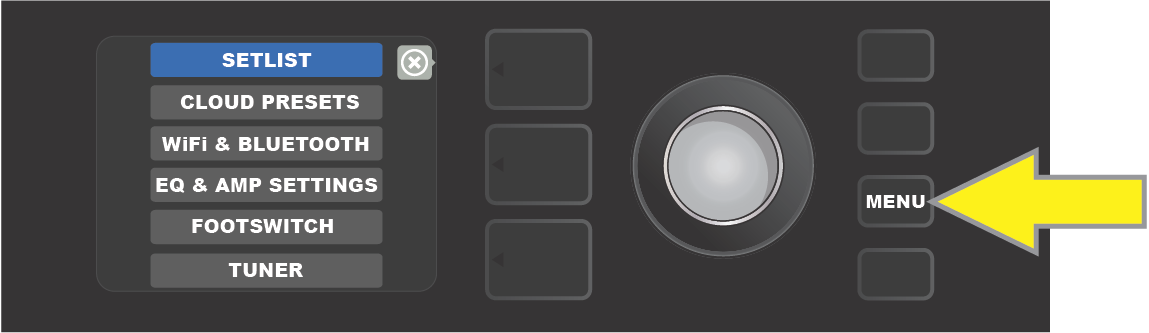

To enable Bluetooth, first press the MENU utility button.

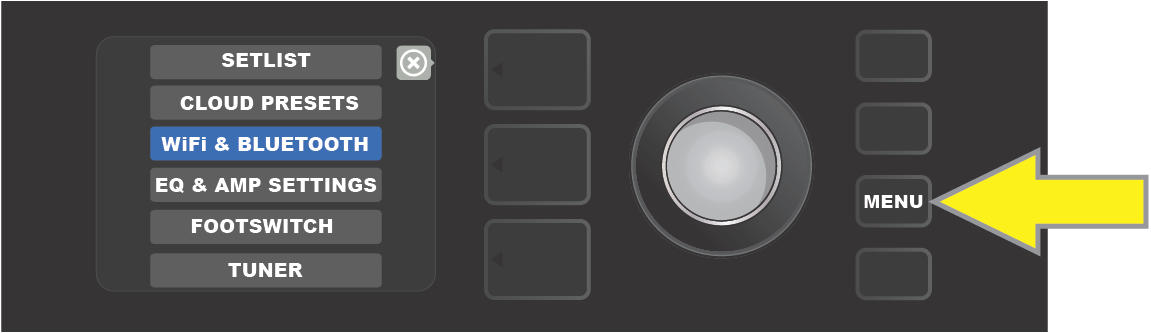

Use the ENCODER to scroll through the menu to “WIFI & BLUETOOTH,” then press the ENCODER on “BLUETOOTH”.

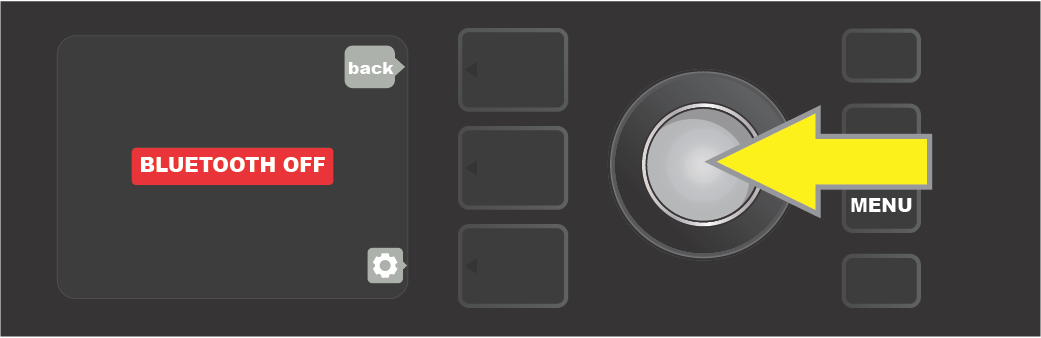

The default Bluetooth setting is “off” (labeled in a red box); press the ENCODER to turn Bluetooth on (labeled in a green box).

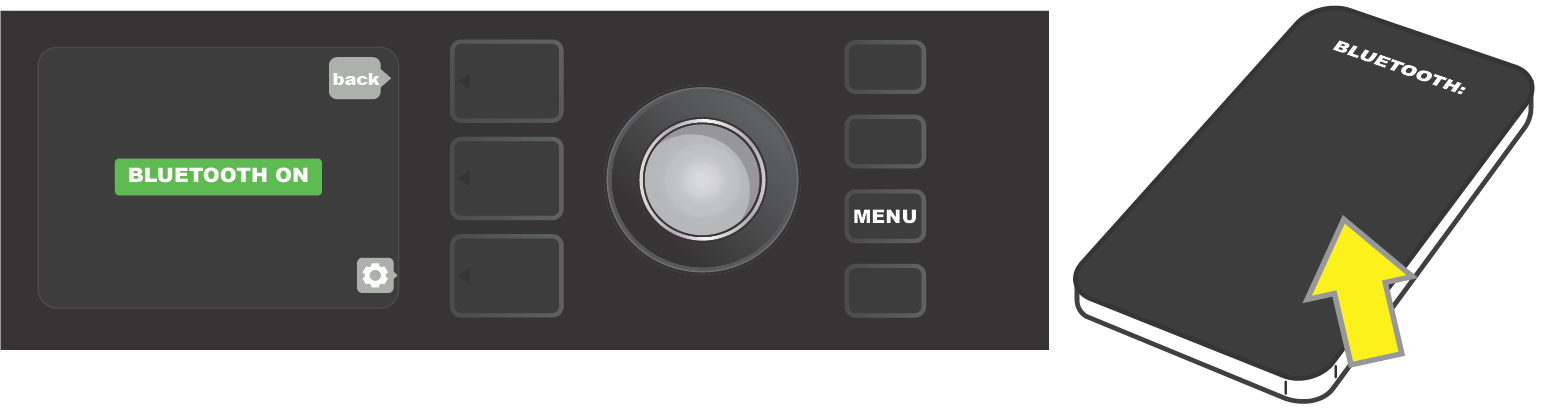

When amp Bluetooth function is on (as labeled in green box), select “MUSTANG GTX” on external device.

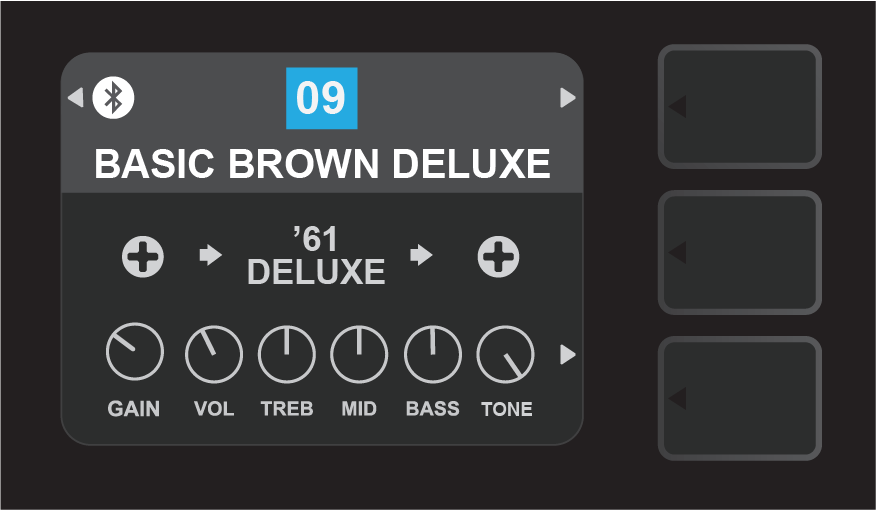

When a streaming device is connected to Mustang GTX, a Blutooth icon will appear at the top left of the DISPLAY WINDOW, indicating streaming readiness:

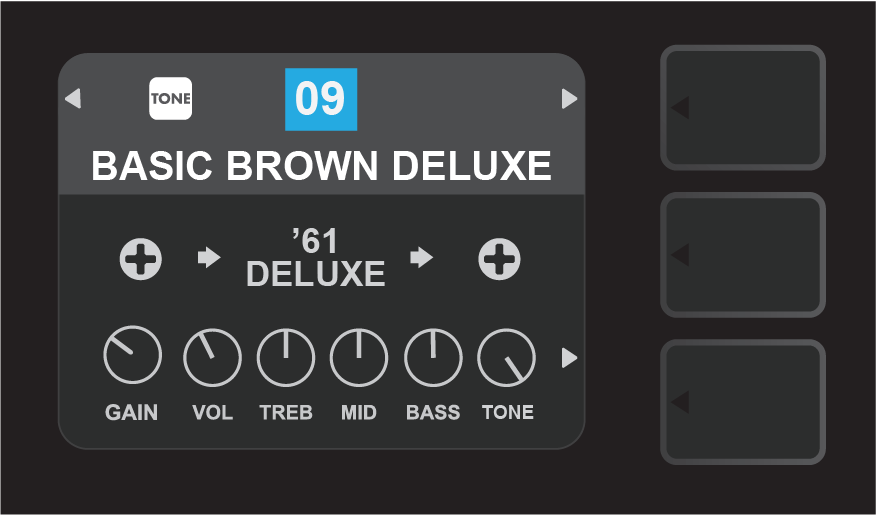

When the Fender TONE app is connected to Mustang GTX, a “TONE” icon will appear at the top left of the DISPLAY WINDOW:

BLUETOOTH VOLUME CONTROL

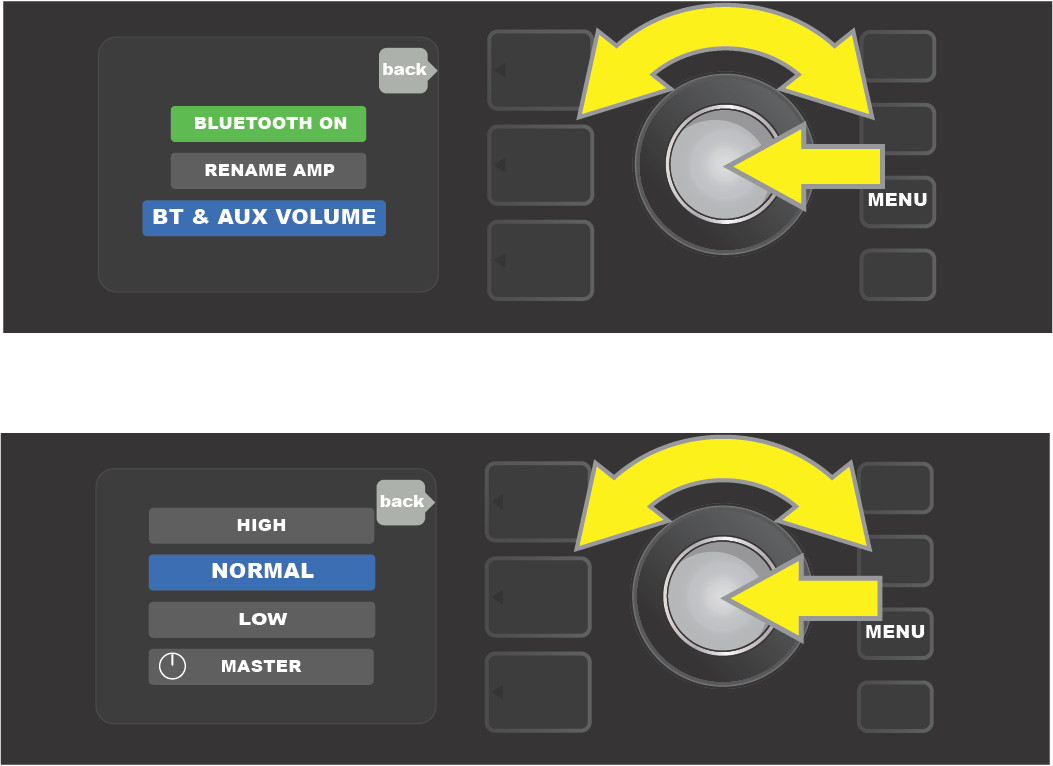

The volume level of a Bluetooth device used with Mustang GTX can be controlled using the volume control on the external device itself, or by using the “BT & AUX VOLUME” menu function. To use this function within the BLUETOOTH menu, use the ENCODER to scroll to and select “BT & AUX VOLUME”. Use the ENCODER to scroll to and select one of four options. “MASTER” enables Bluetooth volume to be set using the Mustang GTX top panel MASTER VOLUME control. “HIGH” and “LOW” offer further customized volume levels, and “NORMAL” returns the user to the amp’s “medium” default Bluetooth volume setting (see illustrations below).
