Fender Rumble Studio 40 Stage 800 User Manual GLOBAL EQ

“Global EQ” is a MENU utility button function (see page 33) that provides access to different equalization curves for easier adjustment of overall amp response to different acoustic environments. This is particularly helpful when users have all their favorite presets and settings dialed in, but then find themselves in, for example, brighter- or boomier-sounding rooms, halls, outdoor areas, etc. Rather than re-adjust each and every preset and setting, users can quickly and easily select one of seven different EQ profiles shaped to suit the surroundings at hand.

Activate this function by pressing the MENU utility button and using the ENCODER to scroll to and select “GLOBAL EQ.” Scroll to and select any of the options presented—”FLAT EQ” (a good default choice that actually provides no additional equalization), two “BRIGHT CUT EQ” settings for de-accentuating top end, two “BRIGHT BOOST EQ” settings for accentuating the top end, and two “LOW CUT EQ” settings for trimming bass response (see illustrations below).

To access the Global EQ function, first press the MENU utility button.

Use the ENCODER to scroll to and select “GLOBAL EQ.”

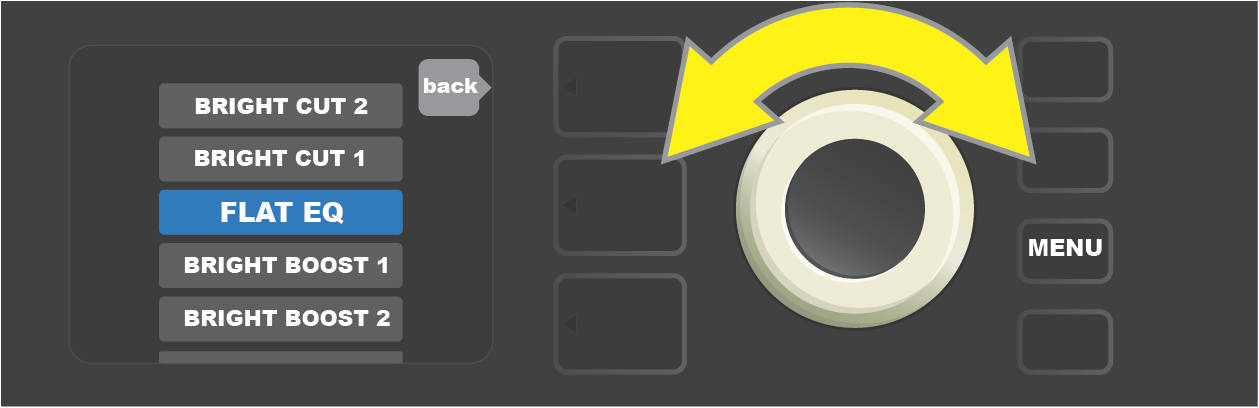

Turn the ENCODER to scroll to a “GLOBAL EQ” option.

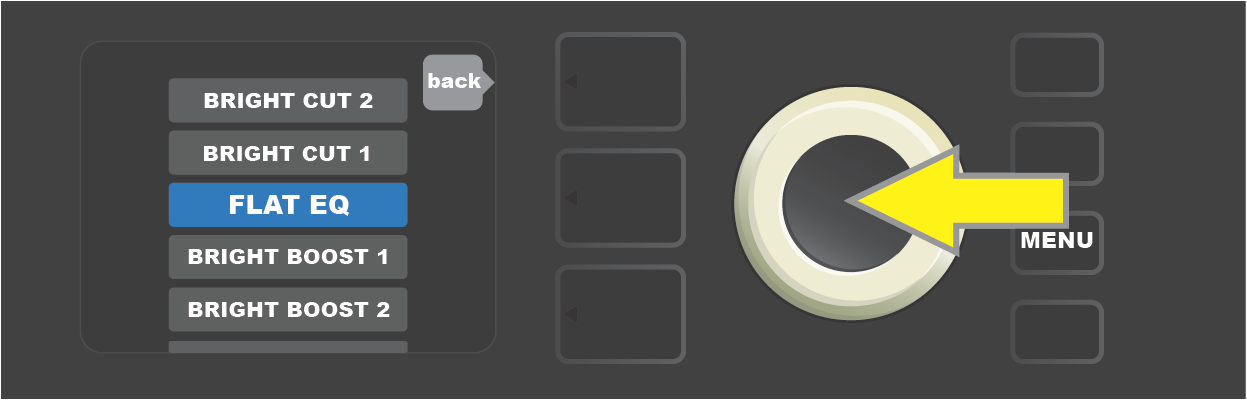

Press the ENCODER to select a “GLOBAL EQ” option.
