Fender Rumble Studio 40 Stage 800 User Manual AMP SETTINGS

“Amp Settings” is a MENU utility button function (see page 33) that enables quick and easy restoration of the factory presets and amplifier settings, in addition to cloud logout and rear-panel USB/line out functions. To access these, press the MENU utility button, use the ENCODER to scroll to and select “AMP SETTINGS,” and scroll to and select any of the five options presented. These are:

RESTORE SETTINGS: For restoring original factory settings except for presets and Setlists. Use the ENCODER to scroll to and select “YES” or “NO”.

RESTORE ALL: For restoring original factory settings including presets. Use the ENCODER to scroll to and select “YES” or “NO”. Note that selecting “YES” will delete existing Setlists.

CLOUD LOGOUT: For logging out of the cloud when using Cloud Presets (see page 59). Use the ENCODER to scroll to and select “YES” or “NO”.

LINE OUT/USB GAIN: Gain control for use when recording using the rear-panel line outputs or USB audio port (see page 44). Turn and press the ENCODER to select a gain value.

LINE OUT OPTIONS: For configuring the rear-panel balanced line outputs (see page 44). Turn and press the ENCODER to select “PRE/POST” (mono) or “STEREO” options.

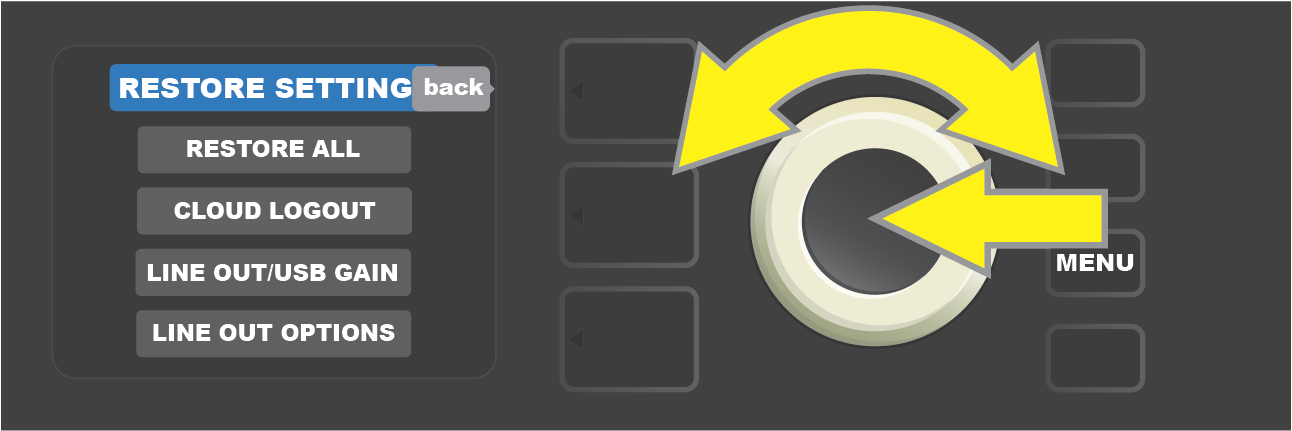

To access the Amp Settings function, first press the MENU utility button.

Use the ENCODER to scroll to and select “AMP SETTINGS.”

Use the ENCODER to scroll to and select one of the five “Amp Settings” options.

Note that the “RESTORE ALL” function is also accessible as a start-up option detailed in the “Factory Restore and Firmware Updates” section (see page 62).
