Sonos CONNECT:AMP User Manual Surround speakers

You can easily pair two PLAY:1 or PLAY:3 speakers with a PLAYBAR to function as left and right surround channels in your Sonos surround sound experience.

If you have a CONNECT:AMP and speakers, the release of Sonos software update 4.2 makes it possible to configure the CONNECT:AMP for surround use. Both the CONNECT:AMP and the PLAYBAR must be wired in this configuration—this is a requirement only when configuring a CONNECT:AMP for surround. It is not a requirement for normal use of these products.

Set up CONNECT:AMP surround

📘

Note: If this is a newly purchased CONNECT:AMP, be sure to add it to your Sonos system before attempting to set up surround speakers.

1. Connect the PLAYBAR to your router with an Ethernet cable.

2. Connect the CONNECT:AMP to your router, or to the PLAYBAR, with an Ethernet cable.

3. Attach desired speakers to the CONNECT:AMP (power rating should be at least 75W for 8 Ohm speakers and at least 150W for 4 Ohm speakers.)

4. Position the speaker connected to the Left terminal on the CONNECT:AMP as the left surround speaker in your surround sound setup.

5. Position the speaker connected to the Right terminal on the CONNECT:AMP as the right surround speaker in your surround sound setup.

   📘

   Note: Make sure your PLAYBAR is not currently configured with any other surround speakers. It can be configured with a SUB.

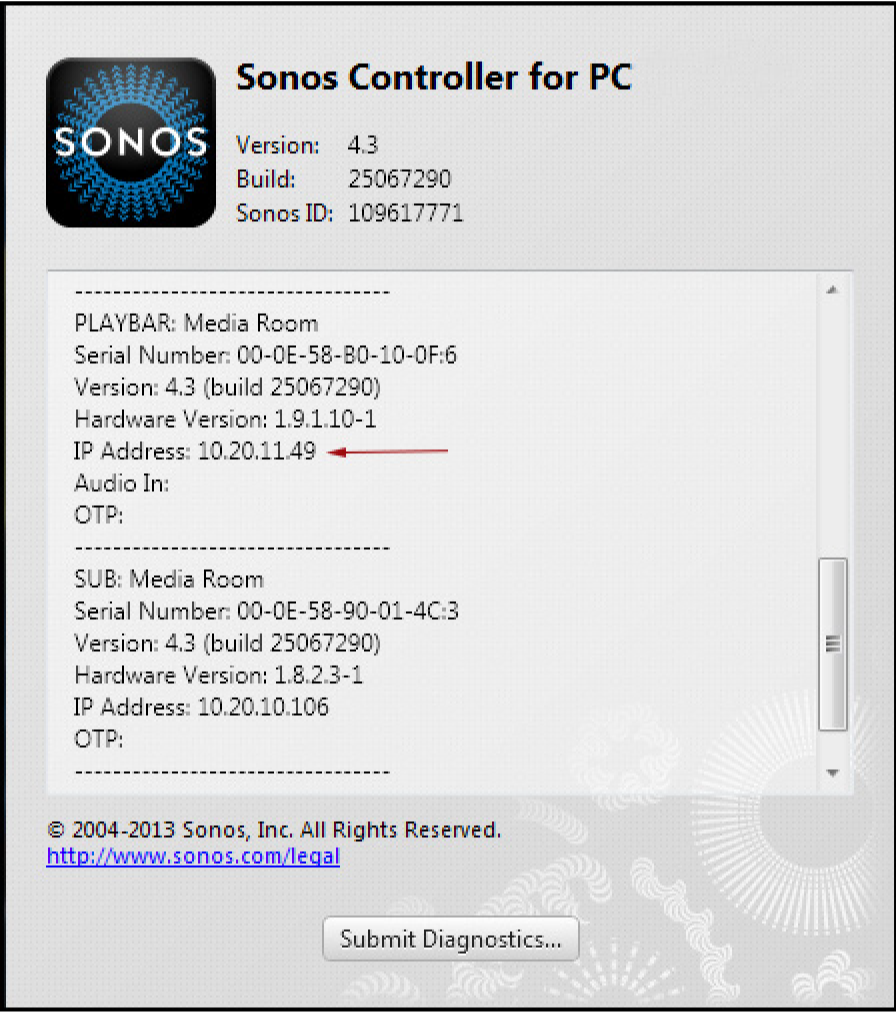

6. Locate the IP address for your PLAYBAR.



   • Using the Sonos app on a PC, select Help -> About My Sonos System.

   • Using the Sonos app on a Mac, select Sonos -> About My Sonos System.

   • Using the Sonos app on a mobile device, select Settings -> About My Sonos System.

7. Open a browser on your computer.

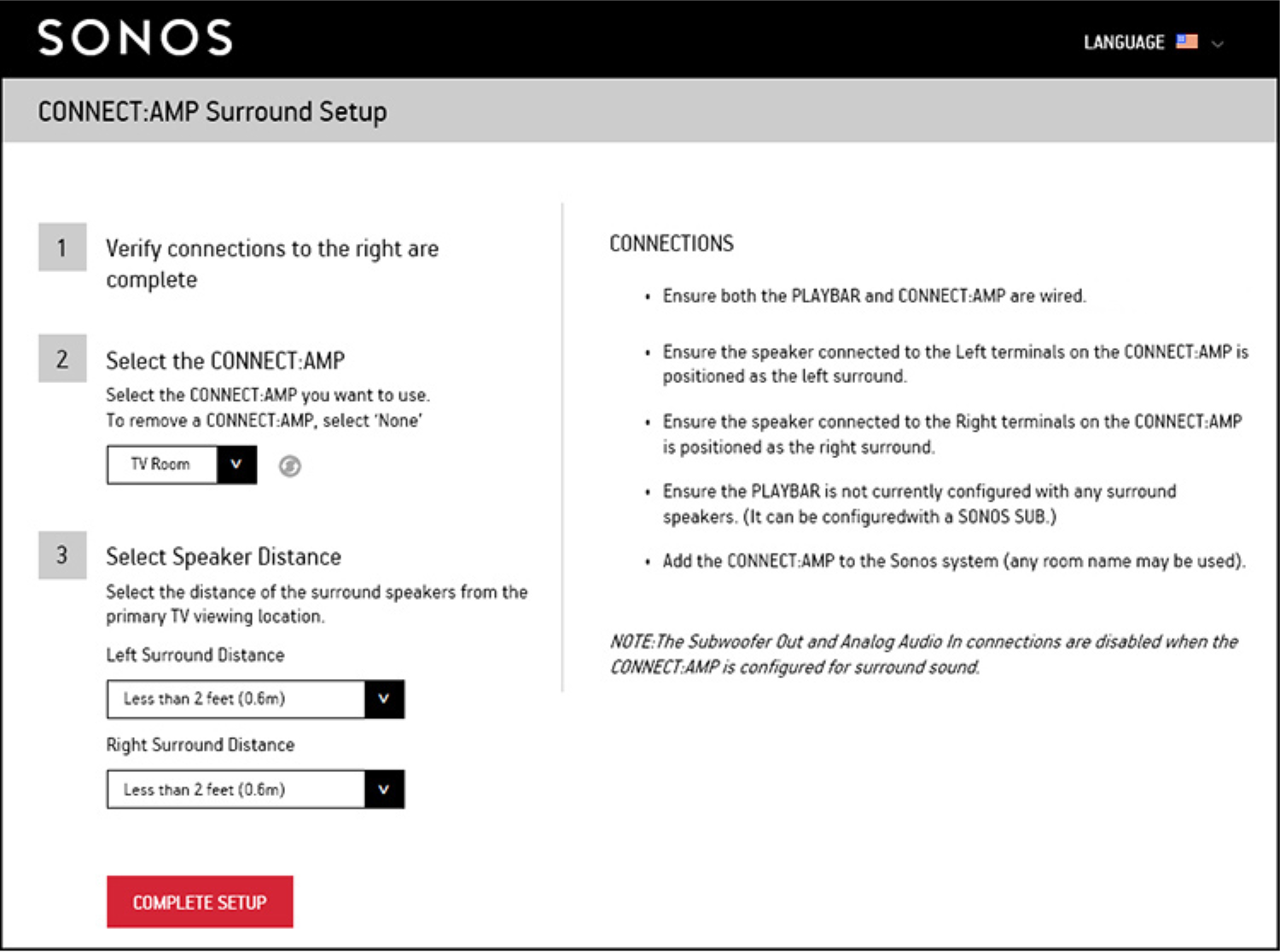

8. Type http://playbarIP:1400/wiredsat.htm (e.g. http://10.20.11.49:1400/wiredsat.htm) into the address bar and then follow the prompts to complete the CONNECT:AMP surround setup.



Remove CONNECT:AMP surround

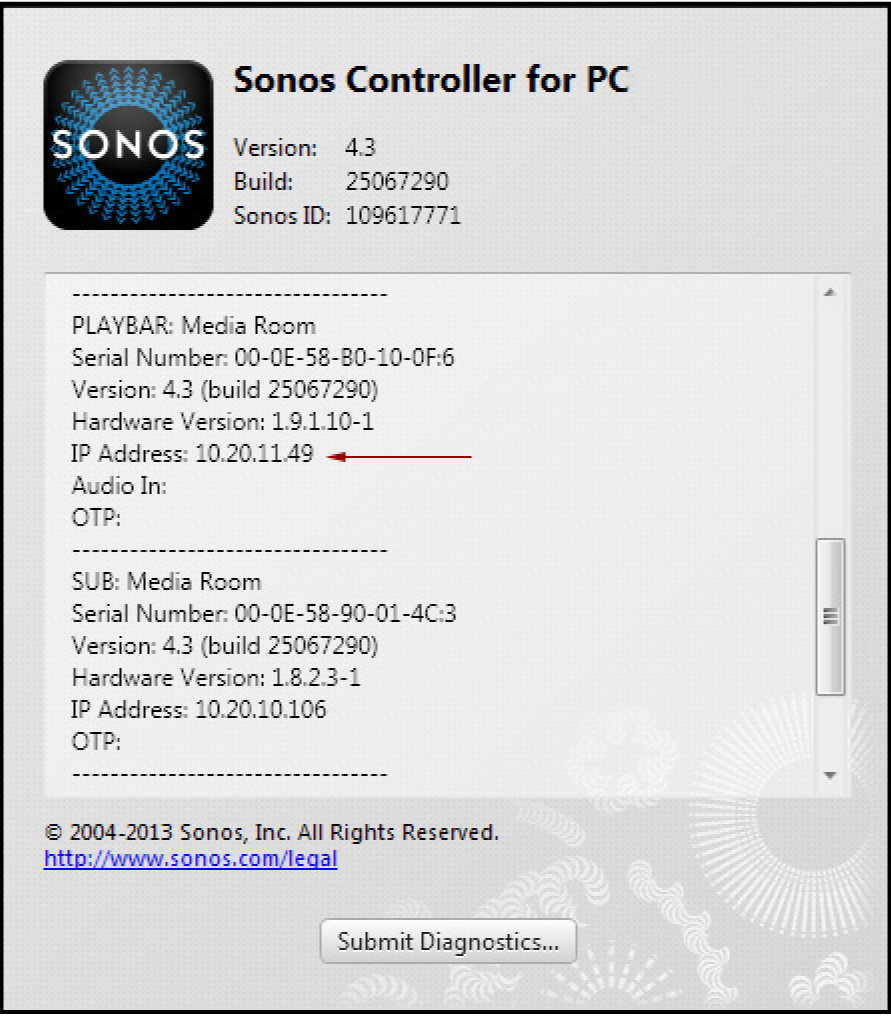

1. Locate the IP address for your PLAYBAR.



   • Using the Sonos app on a PC, select Help -> About My Sonos System.

   • Using the Sonos app on a Mac, select Sonos -> About My Sonos System.

   • Using the Sonos app on a mobile device, select Settings -> About My Sonos System.

   • Using the Sonos app on a PC, select Help -> About My Sonos System.

   • Using the Sonos app on a Mac, select Sonos -> About My Sonos System.

   • Using the Sonos app on a mobile device, select Settings -> About My Sonos System.

2. Open a browser on your computer.

3. Type http://playbarIP:1400/wiredsat.htm (e.g. http://10.20.12.49:1400/wiredsat.htm) into the address bar.

4. From the CONNECT:AMP drop-down, choose None and then click Complete Setup.

5. If desired, you can now disconnect the CONNECT:AMP from your router and move it to a new location.
