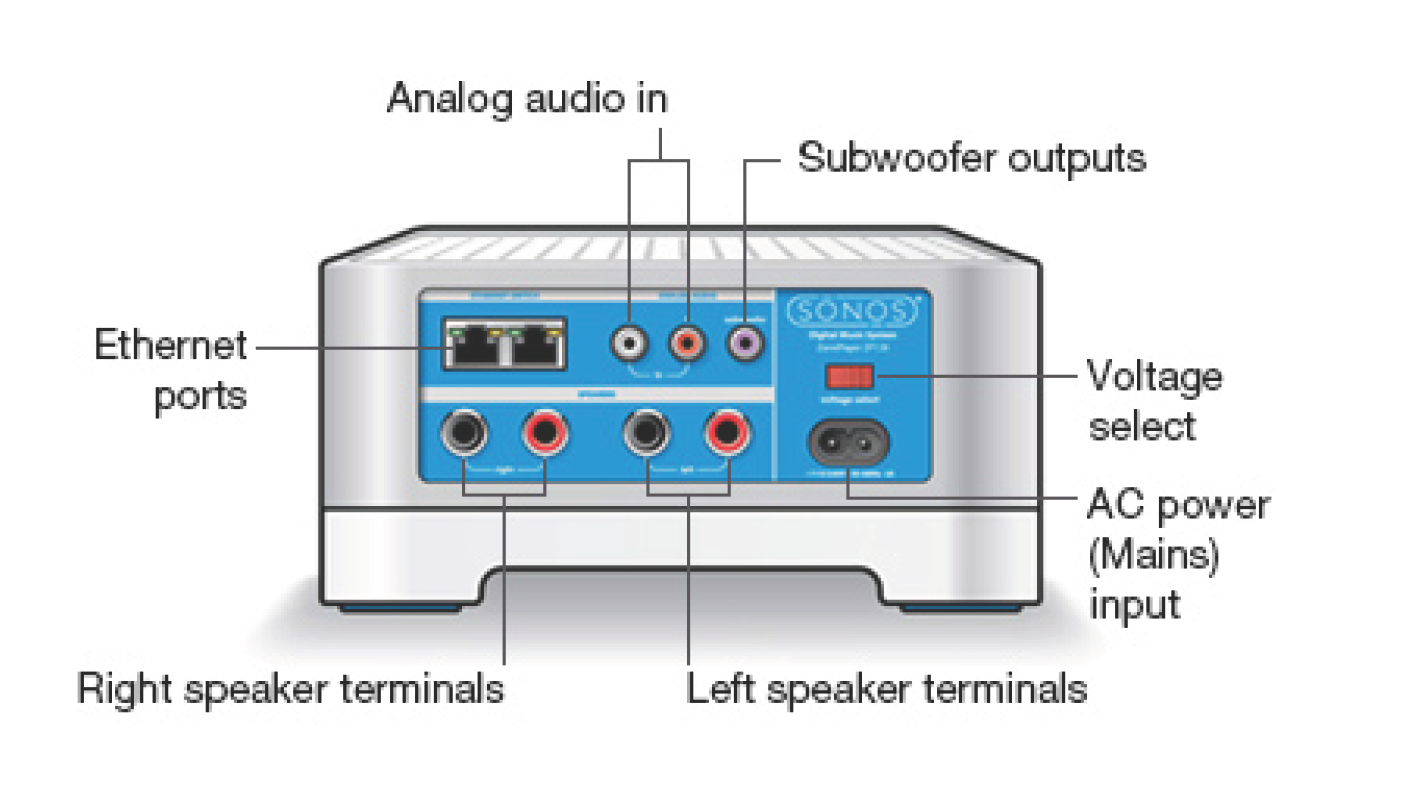

Sonos CONNECT:AMP User Manual CONNECT:AMP back
![Sonos CONNECT:AMP](https://usermanual-prod.b-cdn.net/images/48c2f8de-15b7-4827-b62e-b6a5f6acf852.jpg?token=k7h04c9CyBtNKrC9pv4blDUtCYD_AylqhXR40sdfzt4&width=400&expires=33258022954)
![](https://usermanual-prod.b-cdn.net/bcdn_token=L2AmJI2WEsBr8JfekJlfa7ujBble5TC-uRn89UlX3Dc&token_path=%2Fdocuments%2Ff25a9b83-816c-4fe5-baa0-6e21ba78529a%2Fextract%2Ffigures%2F&expires=33258022954/documents/f25a9b83-816c-4fe5-baa0-6e21ba78529a/extract/figures/fileoutpart5.png)
Ethernet ports (2) | You can use an Ethernet cable (supplied) to connect to a router, computer, or additional network device such as a network-attached storage (NAS) device. LED indicators:
|
---|---|
Right speaker terminals | Use high-quality speaker wire to connect the right speaker to the CONNECT:AMP. |
Left speaker terminals | Use high-quality speaker wire to connect the left speaker to the CONNECT:AMP. |
Voltage select | 100 – 120V~ / 220 – 240V~ 50 – 60 Hz Select the appropriate voltage setting for your country. |
AC power (mains) input | Use only the supplied power cord to connect to a power outlet (using a third party power cord will void your warranty). |
Analog audio in | You may use a standard RCA audio cable to connect the CONNECT:AMP’s analog audio inputs to the audio outputs from a separate audio component, such as a CD player or a portable music player. |
Subwoofer output Note: If you disconnect your subwoofer, make sure to also disconnect the subwoofer’s cable from the CONNECT:AMP output. | You may connect a powered subwoofer to this output using a standard RCA cable. The system will detect when a cable is connected to the subwoofer output and adjust the crossover frequency automatically. |
