Sonos CONNECT:AMP User Manual Adding to an existing Sonos system


Once you’ve got your Sonos system set up, you can easily add more Sonos products any time (up to 32 rooms).

If your house has structured (built-in) wiring, you can make a wired connection to the additional Sonos products. If you don’t, our built-in wireless technology is ideal for you.

  1. Attach desired speakers.

    • Your speaker’s power rating should be at least 75W for 8 Ohm speakers, and at least 150W for 4 Ohm speakers. Do not connect speakers rated at less than 4 Ohms.

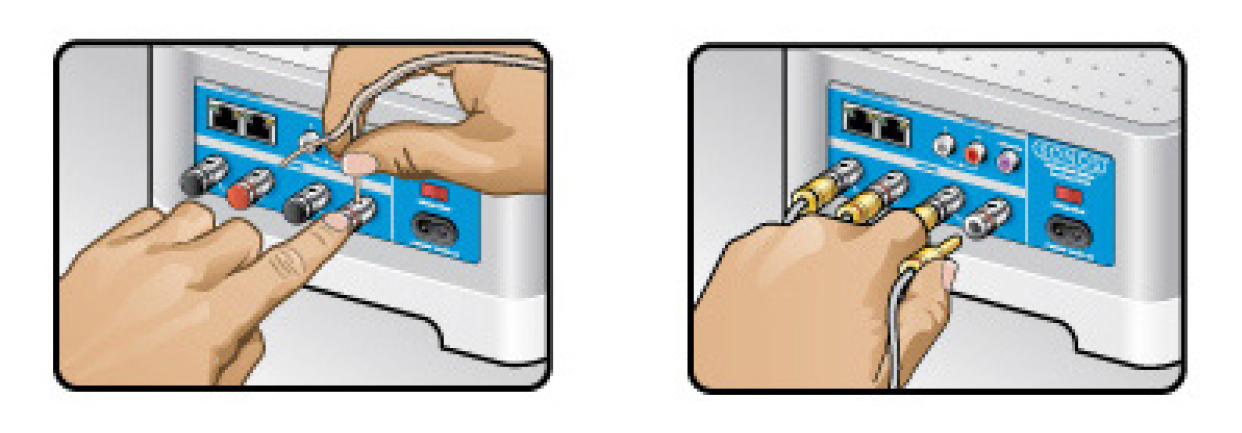

    • Use your thumb or finger to firmly push the spring-loaded speaker connector post inward to reveal the connection hole.

    • Insert the stripped end of the speaker wire into the hole, and then release. The stripped portion should be caught firmly in the connector post.


    Note: Connect the red (+) and black (-) terminals from each speaker to the corresponding terminals on the Sonos CONNECT:AMP. Mismatching of polarities will result in weak central sound, and a distorted sense of sound direction.

    When making connections, ensure that none of the strands of your speaker wire come in contact with an adjoining terminal on the rear panel.

    • Repeat to install the other speaker wires.

    • If your speakers have banana connectors, you can insert the plugs directly into the banana jacks on the back of the CONNECT:AMP instead.

  2. Attach the power cord and plug into a wall outlet—make sure the Voltage Switch on the back of the CONNECT:AMP is set to the proper position for your country before applying power.

    After a few moments, the Status indicator will begin to flash green (if this Sonos product was previously connected to another Sonos system, the Status indicator may be solid white instead.)

  3. Choose one of the following options:

    • Using the Sonos app on a mobile device: Select Add a Player or SUB from Settings, and follow the on-screen prompts to add this product to Sonos.

    • Using the Sonos app on a Mac or PC: Select Add a Player or SUB from the Manage menu and follow the prompts to add this product to Sonos.

    Thick walls, 2.4 GHz cordless telephones, or the presence of other wireless devices can interfere with or block the wireless network signals from Sonos. If you experience difficulty after positioning a Sonos product, try one or more of the following resolutions—relocate the Sonos product; change the wireless channel your music system is operating on; connect a Sonos product to your router if your setup is currently wireless.
