GoPro Omni User Manual THE BASICS

GoPro Omni

  1. Inner Cube (Synchronizer)

  2. Frame (6x Outer Panels)

  3. Camera Position Indicator (1-6)

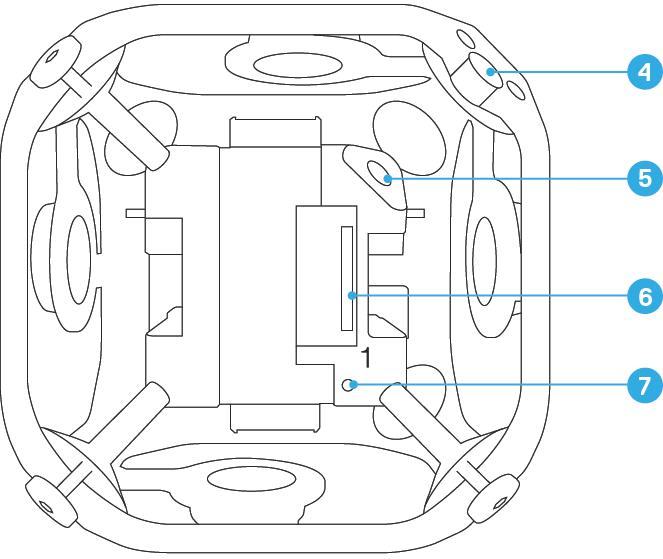

  4. Mounting Corner (1/4-20 Threaded Insert, 1x Top under removable Corner Cap, 1x Bottom)

  5. Power Connector (2.5mm x 5.5mm)

  6. HEROBus Connector (30-pin)

  7. Array Camera Status Light

  1. Camera Status Light (red)

  2. Shutter/Select Button [ ]

  3. Wireless Status Light (blue)

  4. Camera Status Screen

  5. Power/Mode Button [ ]

  6. Micro HDMI Port (cable not included)

  7. microSD Card Slot

  8. Mini-USB Port (supports composite A/V cable/3.5mm stereo mic adapter, not included)

  9. Audio Alert

  10. Microphone

  11. HEROPort

  12. Settings/Tag Button [ ]

  13. Battery Door
