MEMORY CARDS

HERO4 Black requires a microSD, microSDHC, or microSDXC memory card. The card must have a minimum rating of Class 10 or UHS-I, and a capacity of 32GB or 64GB. For a list of SD cards recommended for use with Omni, visit the Omni Support Hub at gopro.com/help.

πŸ“˜

NOTICE: Use care when handling memory cards. Avoid liquids, dust and debris. As a precaution, power off the camera before inserting or removing the card. Check manufacturer guidelines regarding use in acceptable temperature ranges.

🚧

WARNING: Use caution when using your GoPro as part of your active lifestyle. Always be aware of your surroundings to avoid injury to yourself and others.

Abide by all local laws when using your GoPro and related mounts and accessories, including all privacy laws, which may restrict recording in certain areas.

ROLE OF THE PRIMARY CAMERA

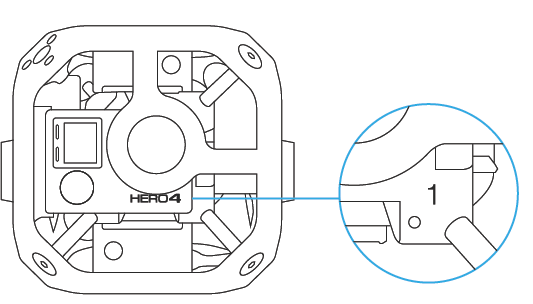

The camera that is connected to the inner cube and marked with 1 is referred to as the primary camera. All other cameras are referred to as secondary cameras.

The primary camera controls all cameras in the array for these functions:

  • Powers all cameras on/off

  • Connects to the Smart Remote so that all cameras can be controlled remotely

  • Displays Array Ready when the system is ready for use

  • Displays Array Error when one of the secondary cameras experiences an error

ASSEMBLING THE ARRAY

Installing the Cameras

The All Inclusive Omni package ships with the cameras already installed. If you want to re-install a camera or if you have the Rig Only version of Omni, follow the steps below.

  1. Confirm that all cameras are HERO4 Black cameras. Other GoPros are not supported.

  2. Confirm that all cameras are using the same version of array firmware. To obtain the latest array firmware for Omni, visit gopro.com/help and log in to the Omni Support Hub. If you need to create a support hub account, follow these instructions: https://community.gopro.com/html/assets/GoProOmniSupportHub.pdf.

  3. Complete these steps for each camera:

    1. Use the included hex key to loosen (but not remove) the screws on

      one of the panels

    2. Gently pull the panel off of the frame.

    3. Connect a camera to the HEROBus connector on the inner cube.

    4. Align the outer panel with the lens, then gently slide the panel onto the lens and move the corners into place

    5. Tighten the screws in a star pattern.

  4. Tighten the screws for the panel.

  5. Repeat steps 3-6 for the remaining cameras.

SUPPLYING POWER TO THE RIG

You have two options for powering the rig: external power or the camera batteries.

πŸ“˜

NOTICE: Do not switch from one power source to another (camera batteries to external power or external power to camera batteries) without first powering off the cameras. Failure to follow this guideline can lead to unexpected powering off, interrupted recordings, and erratic Omni behavior.

Powering the Rig with External Power

For extended recording time, power the rig with an external power source.

  1. Be sure that the battery for the external power unit is charged.

  2. Remove the cameras from the rig.

  3. Remove the batteries from the cameras.

  4. Place the cameras in the rig.

  5. Connect the power cable to the power connector.

πŸ“˜

NOTICE: Do not connect a high-voltage power source to Omni. Omni requires 5V input, but can be powered using a 12V to 5V step-down converter, such as the Core SWX / Switronix XP-DV-5GP. The Omni power connector is a 2.5mm x 5.5mm polarity plug. The step-down converter has an 8A rating.

Powering the Rig with Camera Batteries + Charging in the Rig

With these options, you can charge the camera batteries without removing the cameras from the rig.

  • Using USB cables, connect the camera USB ports to the USB hub (available with the All Inclusive Omni package).

  • Use the power connector to connect the external power to the inner cube.

The camera status lights turn on during charging and turn off when charging is complete.

Powering the Rig with Camera Batteries + Charging Outside of the Rig

With this option, you must remove the cameras from the rig.

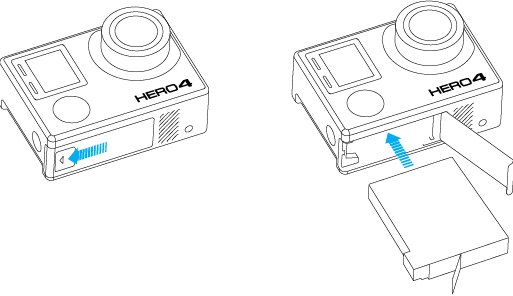

  1. Insert the battery into the camera.

  2. Connect the camera to a computer, USB hub, or other USB charging adapter using the included USB cable. The camera status light turns on during charging and turns off when charging is complete. When charging with a computer, be sure that the computer is connected to a power source. If the camera status light does not turn on, use a different USB port.

For more battery information, see Battery.

🚧

WARNING: Use caution when using your GoPro as part of your active lifestyle. Always be aware of your surroundings to avoid injury to yourself and others.

Abide by all local laws when using your GoPro and related mounts and accessories, including all privacy laws, which may restrict recording in certain areas.

MOUNTING OMNI

  1. If you want to use the top 1/4-20 threaded insert, unscrew the corner cap.

  2. Use a 1/4”-20 screw with the threaded insert on the top or bottom of the rig (near the power connector) to attach Omni to a monopod or other suitable mounting solution.

πŸ“˜

NOTICE: When removing Omni from a monopod or other mounting solution, disconnect the power connector first to avoid damaging the connection.

POWERING ON + OFF ALL CAMERAS IN THE ARRAY

To Power On All Cameras:

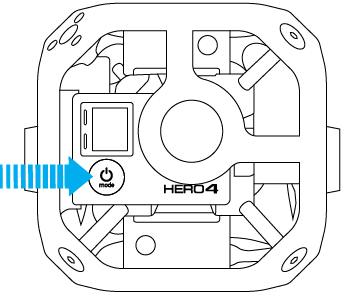

Press the Power/Mode button [ ] on the primary camera. The camera status lights flash three times and the sound indicator emits three beeps. The primary camera powers up, followed by the secondary cameras. When Array Ready disappears, you can begin capturing video or photos.

The array is properly configured if the camera mode icon and AR alternate in the upper left of the camera status screen.

If Array Error appears on the primary camera’s status screen, see Array Error.

To Power Off All Cameras:

Press and hold the Power/Mode button [ ] on the primary camera for three seconds. The camera status lights flash several times and the sound indicator emits seven beeps.
