Fender Mustang GT40 GT100 GT200 User Manual LINE OUT AND FX SEND/RETURN
![Fender Mustang GT40](https://usermanual-prod.b-cdn.net/images/4c3e097c-b551-4207-b8a2-f400442979be.jpg?token=HnZV_WUFqmcf8jw6kCU0vfPuBqjLZbjgVaSZf4m-QkU&width=400&expires=33257980196)
Mustang GT amplifiers feature rear-panel balanced line output jacks (right and left) for connection to external recording and sound reinforcement equipment (see illustration below).
![](https://usermanual-prod.b-cdn.net/bcdn_token=Cx6tkHBdbxIh_NRwfRHfjoLI8U0ghSmMqpagR-6bwGE&token_path=%2Fdocuments%2F9af23005-9a89-430e-8ead-65d277af7772%2Fextract%2Ffigures%2F&expires=33257980196/documents/9af23005-9a89-430e-8ead-65d277af7772/extract/figures/fileoutpart112.png)

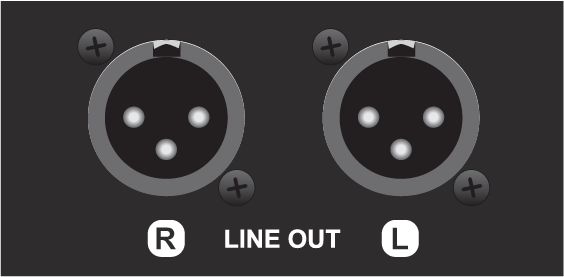

Close-up detail of rear-panel right and left balanced line outputs.
Mustang GT100 and GT200 also feature an effects loop. The right/left FX send and right/left FX return jacks on the far right of the rear panel are for mono or stereo external effects use (see illustration below); a mono effect can be plugged into the right or left channel. Note that effects connected to these jacks are “global” (not preset-specific) and will act as the last elements in the signal path.
![](https://usermanual-prod.b-cdn.net/bcdn_token=Cx6tkHBdbxIh_NRwfRHfjoLI8U0ghSmMqpagR-6bwGE&token_path=%2Fdocuments%2F9af23005-9a89-430e-8ead-65d277af7772%2Fextract%2Ffigures%2F&expires=33257980196/documents/9af23005-9a89-430e-8ead-65d277af7772/extract/figures/fileoutpart113.png)

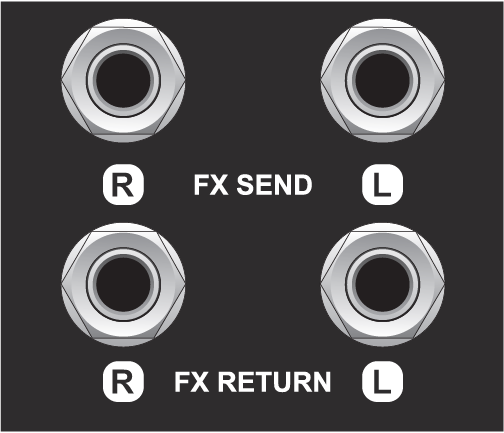

Close-up detail of rear-panel right and left FX send/return jacks.
