Fender Mustang GT40

Fender Mustang GT40 GT100 GT200 User Manual GLOBAL EQ

Fender Mustang GT40

“Global EQ” is a MENU utility button function (see page 25) that provides access to different equalization curves for easier adjustment of overall amp response to different acoustic environments. This is particularly helpful when users have all their favorite presets and settings dialed in, but then find themselves in, for example, brighter- or boomier-sounding rooms, halls, outdoor areas, etc. Rather than re-adjust each and every preset and setting, users can quickly and easily select one of four different EQ profiles shaped to suit the surroundings at hand.

Activate this function by pressing the MENU utility button and using the ENCODER to scroll to and select “GLOBAL EQ.” Scroll to and select any of the four options presented—”FLAT EQ” (a good default choice that actually provides no additional equalization), “BRIGHT BOOST EQ” for accentuating the top end, “BRIGHT CUT EQ” for de-accentuating top end, or “LOW CUT EQ” for trimming bass response (see illustrations below).

To access the Global EQ function, first press the MENU utility button.

Use the ENCODER to scroll to and select “GLOBAL EQ.”

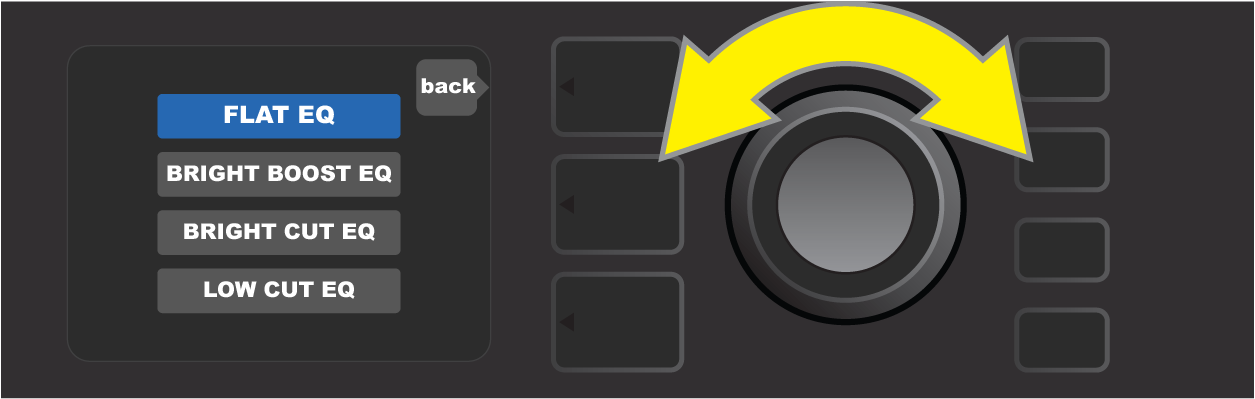

Turn the ENCODER to scroll to one of four “GLOBAL EQ” options.

Press the ENCODER to select a “GLOBAL EQ” option.
