Blackmagic Ultimatte12 User Manual Rack Mounting

Teranex Mini Rack Shelf is a 1RU shelf that lets you install Blackmagic Ultimatte 12 HD Mini and Ultimatte 12 HD models into a broadcast rack or road case.

Blackmagic Ultimatte 12 HD Mini and Ultimatte 12 HD are small, so you can install them next to other Blackmagic Design equipment that share a similar form factor, such as Teranex Mini converters, Blackmagic MultiView 4 and Blackmagic Web Presenter. For example, installing a Blackmagic Ultimatte 12 HD Mini together with a HyperDeck Studio HD Mini means you can record your program or monitor output. This modular design lets you build your own custom video solutions that are portable and easy to use.

The Teranex Mini Rack Shelf Kit contains the following:

1 x Teranex Mini Rack Shelf
1 x 1/6 rack width blanking panel Use the 1/6 blanking panel when mounting 1/2 rack width products with a 1/3 width unit or blanking panel
	2 x 1/3 rack width blanking panel Use 1/3 width blanking panels when mounting single products
	Screws Countersunk mounting Flat nylon screws for 1/6 screws blanking panels

To mount Ultimatte 12 HD Mini and Ultimatte 12 HD models:

1. The first step to mount any product to the Teranex Mini rack shelf is to remove the rubber feet from your device.

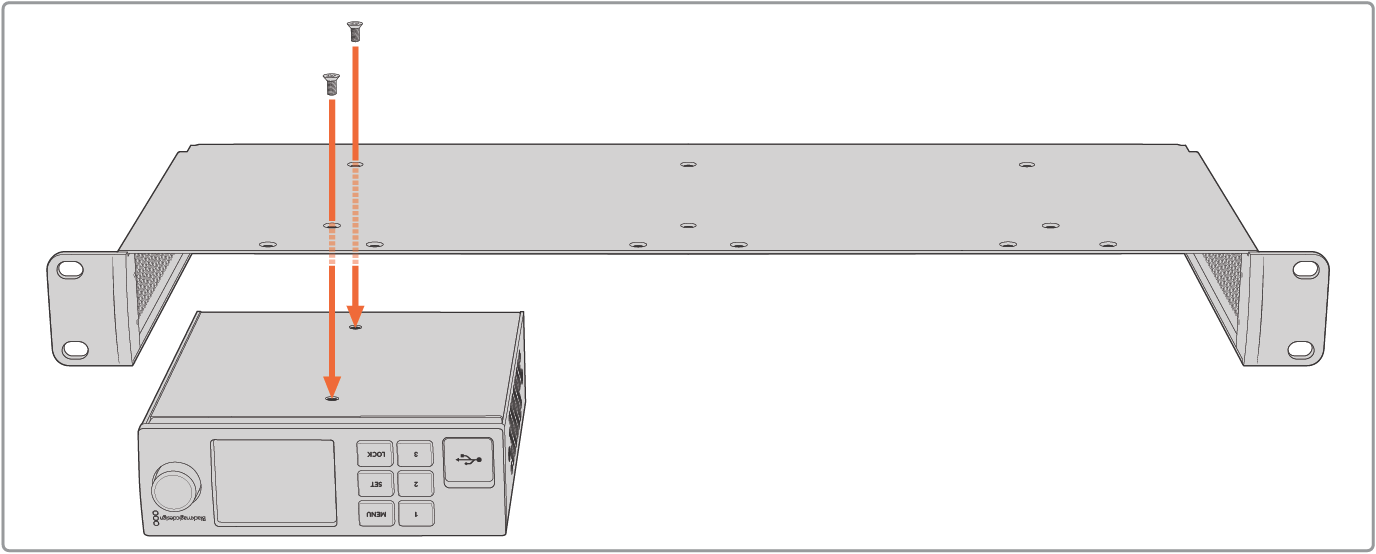

2. With both the rack and device upside down, line up the pre drilled holes on the rack with the threaded mounting holes on the device. This will be via two central mounting points on 1/3 width products or up to three mounting points on larger products such as HyperDeck Studio HD Plus. The location of the mounting points will depend on whether you are installing the unit on the left or right of the rack.

3. Using the supplied M3 5mm countersunk screws, mount the device to the rack.

4. Once you’ve installed your HyperDeck or other Blackmagic Design product, turn the rack shelf right side up and install into your equipment rack.

Blanking panels can be used to fill spaces in your rack that may be left available, such as when mounting a HyperDeck Studio HD Mini with a Blackmagic Web Presenter.

To attach the 1/6 blanking panel:

The 1/6 blanking panel is designed to be attached to 1/2 rack width products, such as HyperDeck Studio HD Plus when they are mounted solo, or with a 1/3 rack width product such as a Blackmagic Web Presenter. Mount the panel to the side of the device towards the center of the rack to allow for airflow between units.

Remove the 5mm M3 screw near the front of the device.

Line up the blanking panel and attach using the supplied M3 10mm nylon screw.

To attach the side 1/3 width blanking panel:

To install the 1/3 width blanking panel, line up the screw holes and anchor point with the shelf. The 1/3 width blanking panel can be used on either side or the center of the rack. Screw the panel to the shelf using two of the supplied M3 5mm countersunk screws.

For deeper products, such as the Blackmagic Studio Converter, use the Blackmagic Universal Rack Shelf.
