Blackmagic Ultimatte12 User Manual Rack Installation

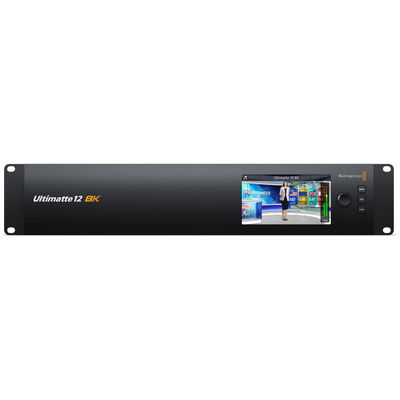

Ultimatte 12 8K and 4K models can be installed into a broadcast rack or road case using the included Ultimatte rack mount kit.

If you are using your Ultimatte on a desk, you can fit the supplied rubber feet to the base. Simply stick a rubber foot to each corner of the underside, taking care not to cover any screws.

The rack mount kit contains the following items:

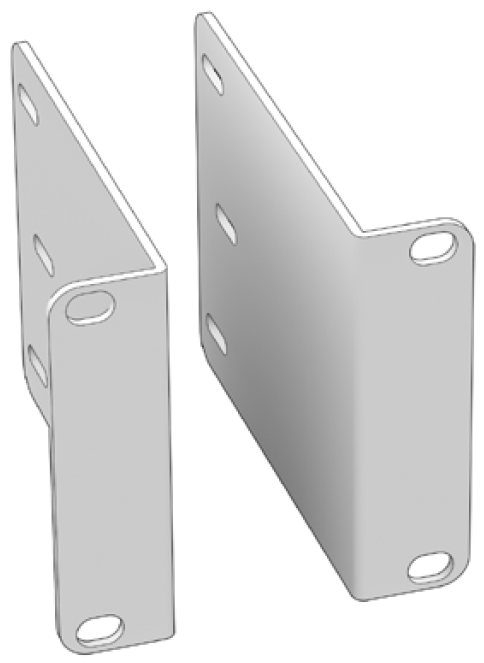

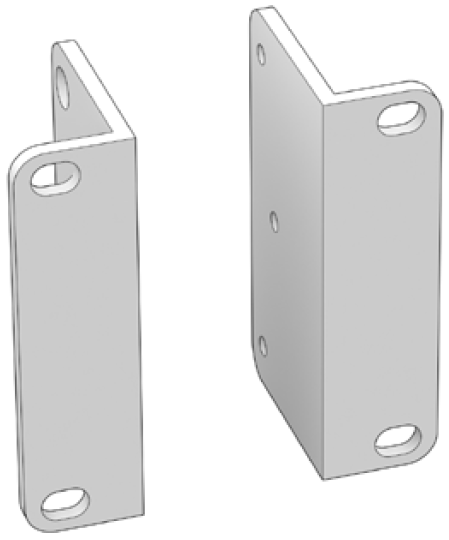

	2 x Front Rack Ears Attach the front rack ears to the outside front edge of the unit.
	2 x Rear Rack Ears Attach the rear rack ears to the outside rear edge of the unit.

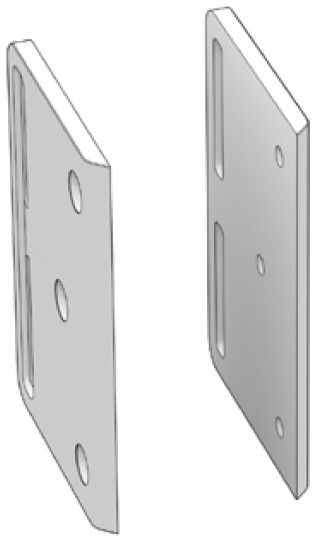

	2 x Chassis Bumpers Two chassis bumpers can be attached to each side of the chassis. These bumpers are designed to protect the rear connectors. They can also provide strain relief for cables that are connected to the unit.
	Screws 12 x M4 Countersunk 6 x M4 Flathead Screws For front rack ears For rear rack ears and chassis bumpers

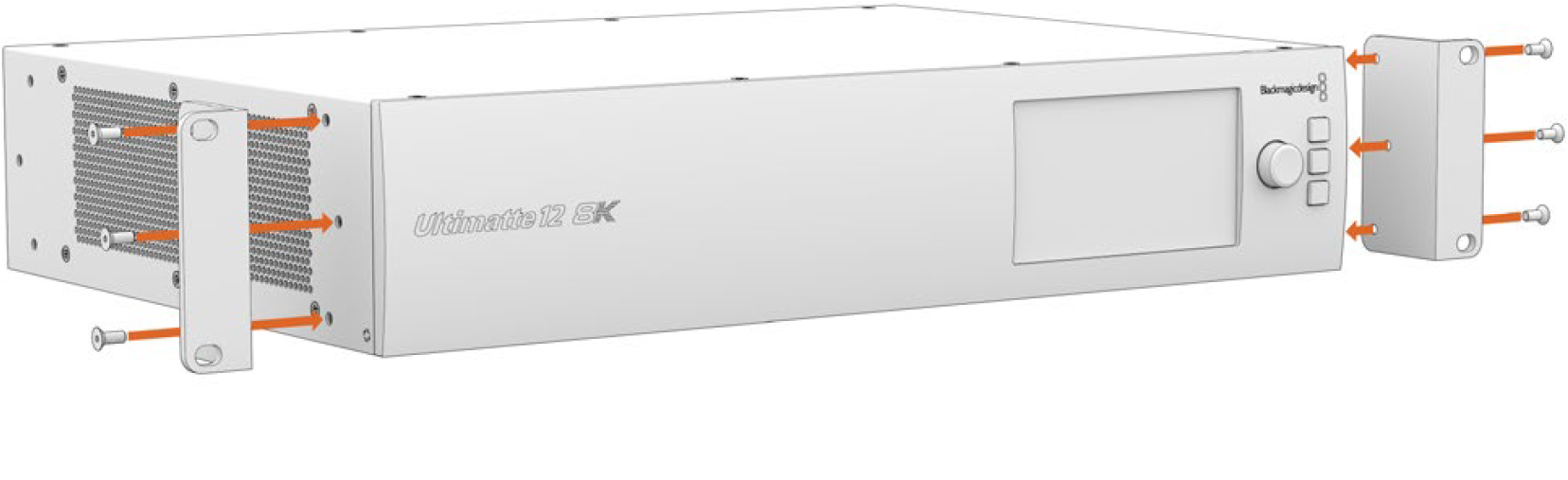

Installing Front Rack Ears

Using a 2mm hex key, attach the rack ears to each side of the unit using the supplied M4 countersunk screws.

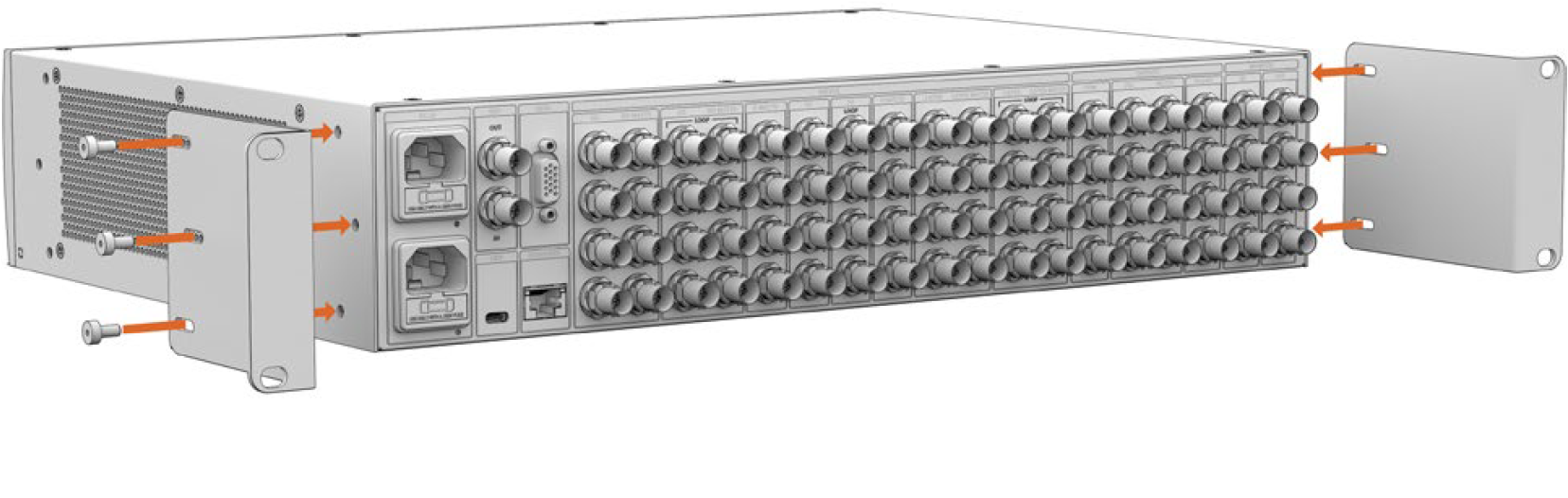

Installing Rear Rack Ears

Using a 3mm hex key, attach the rear rack ears to Ultimatte 12 8K using the supplied M4 flathead screws.

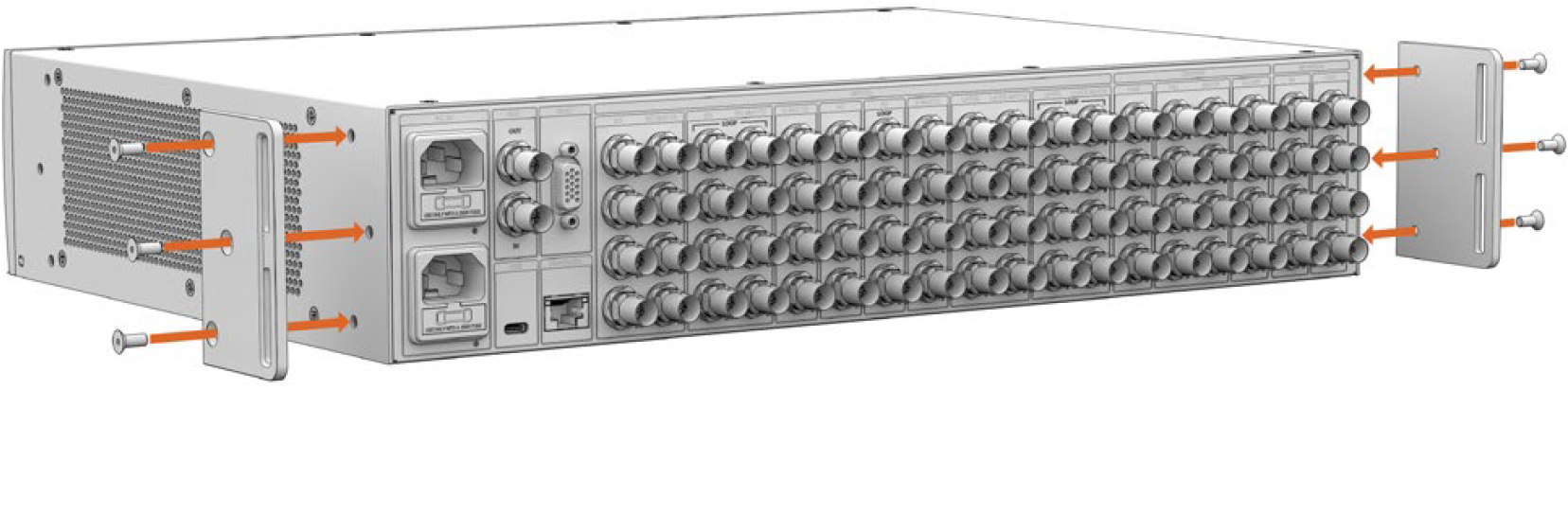

Installing Chassis Bumpers

Install the optional chassis bumpers using the supplied M4 countersunk screws.
