Blackmagic Ultimatte12 User Manual Blackmagic Ultimatte Setup

Blackmagic Ultimatte Setup is used to change settings and update the internal software in your Ultimatte.

To use Ultimatte Setup:

1. Connect Ultimatte to your computer via USB or Ethernet.

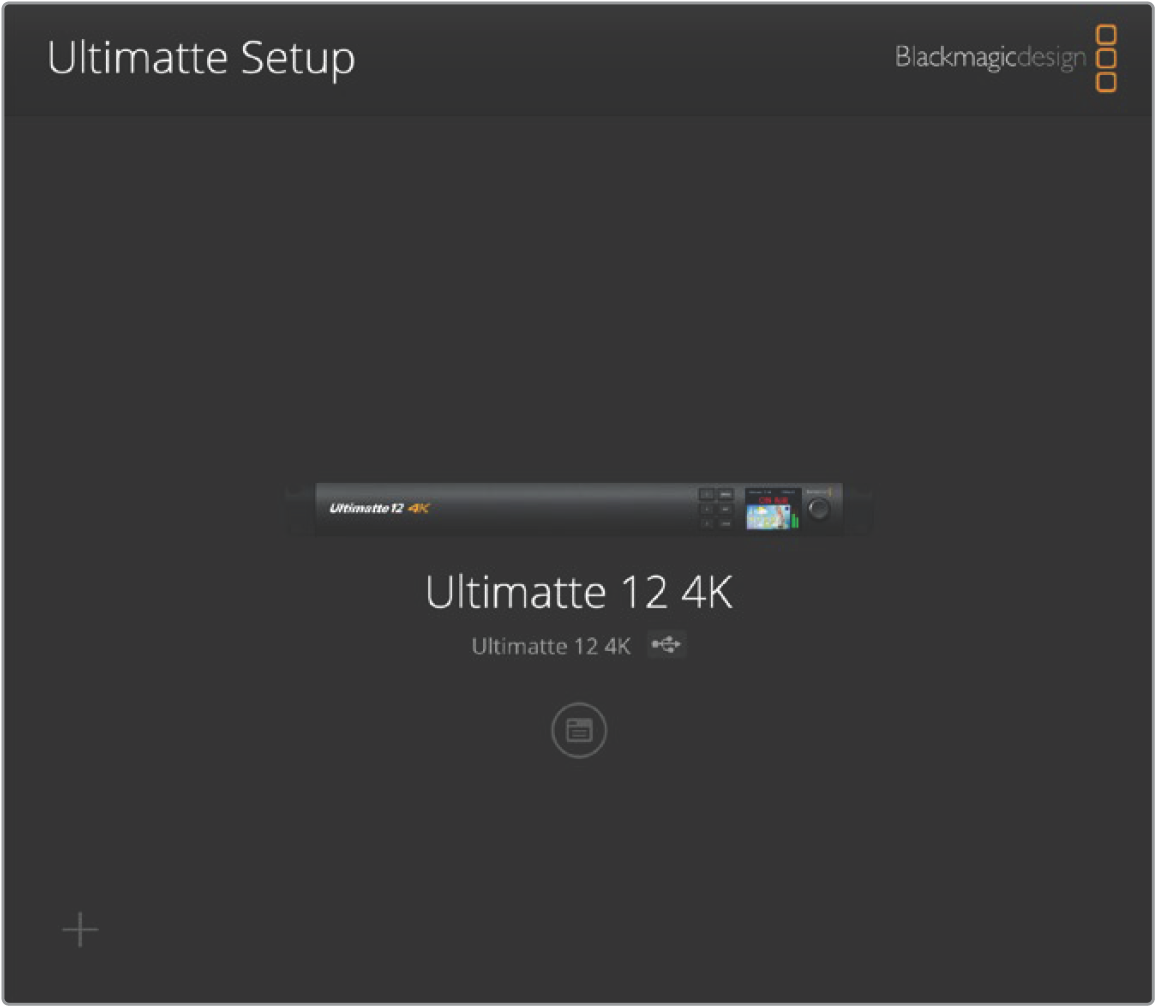

2. Launch Ultimatte Setup. Your Ultimatte model will be named in the setup utility home page.

3. Click on the circular ‘setup’ icon or the image of your Ultimatte to open the setup page.

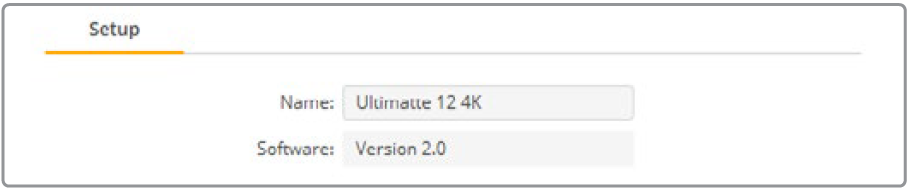

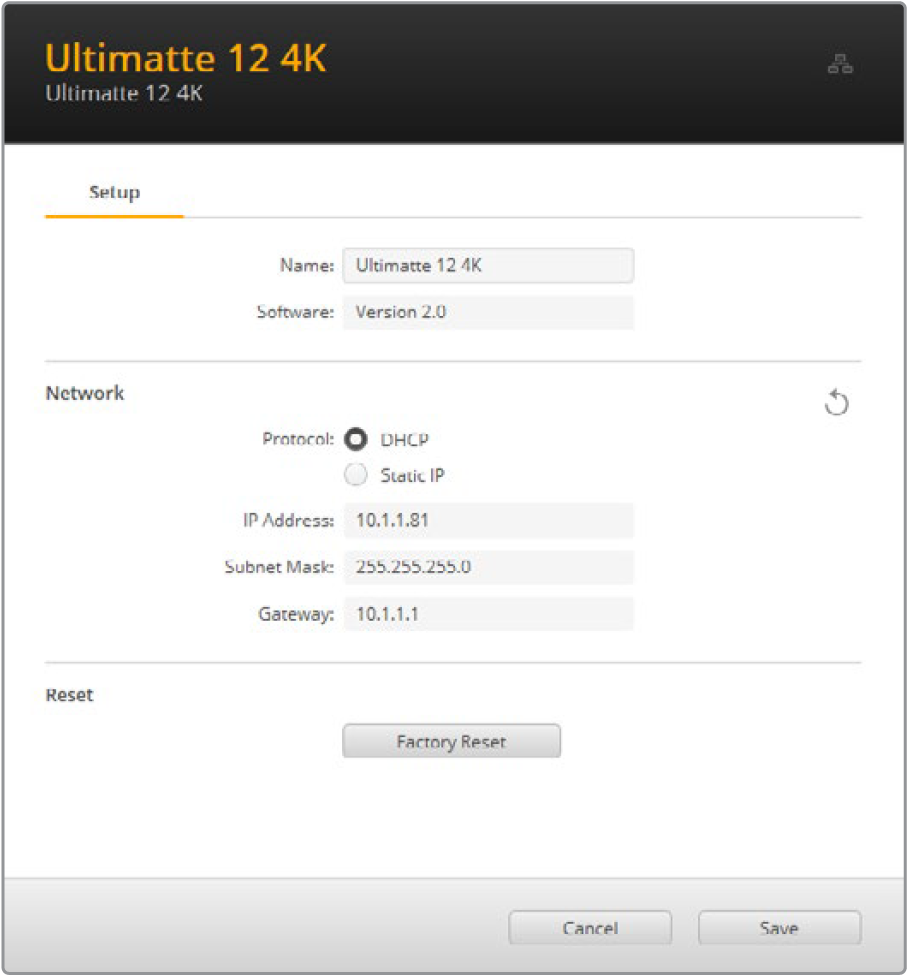

Setup Page

If you have more than one Ultimatte, you may wish to give each unit a discrete name to make them easy to identify. You can do this via the ‘name’ option.

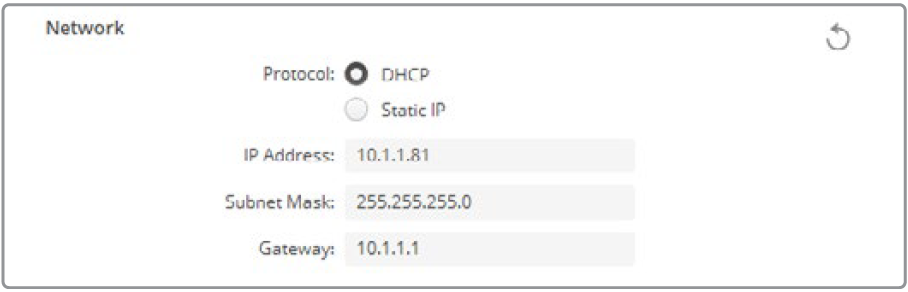

Network

These settings allow you to configure options such as choosing between connecting to a network over DHCP or using a static IP address. For more information on connecting your Ultimatte to a network, refer to the ‘connecting to a network’ section.

Reset

Reset your Ultimatte by clicking the ‘factory reset’ button. This will return your Ultimatte to its original factory settings, any stills saved in the media pool will be deleted.

Updating the Internal Software

The setup utility lets you update your Ultimatte’s internal software in addition to configuring the network settings.

To update the internal software:

1. Download the newest Blackmagic Ultimatte Setup installer from www.blackmagicdesign.com/support.

2. Run the Blackmagic Ultimatte Setup installer on your computer and follow the onscreen instructions.

3. After installation is complete, connect your Ultimatte to your computer via USB or Ethernet.

4. Launch Blackmagic Ultimatte Setup and follow any onscreen prompt to update the internal software. If no prompt appears, the internal software is up to date and there is nothing further you need to do.

Download the latest setup utility for your Blackmagic Ultimatte from the Blackmagic Design support center at
