Blackmagic Ultimatte12 User Manual Archives

An archive is a backup of your Ultimatte that includes its current state, all settings, presets and the contents of the media pool. Creating an archive of your Ultimatte is useful if you regularly switch between different productions or if you are setting up additional Ultimatte units.

Archives are interchangable between Ultimatte models.

Creating an Archive

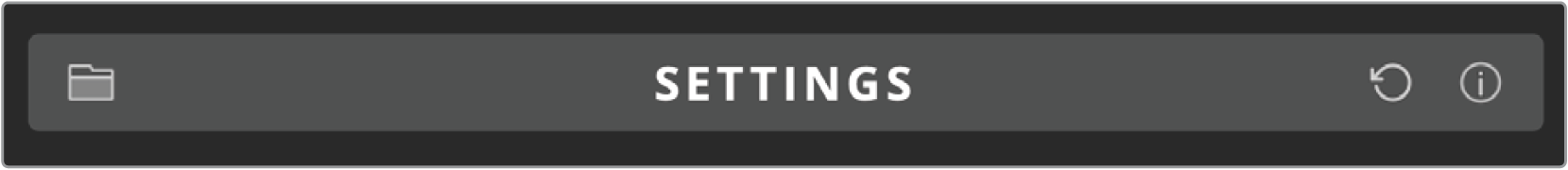

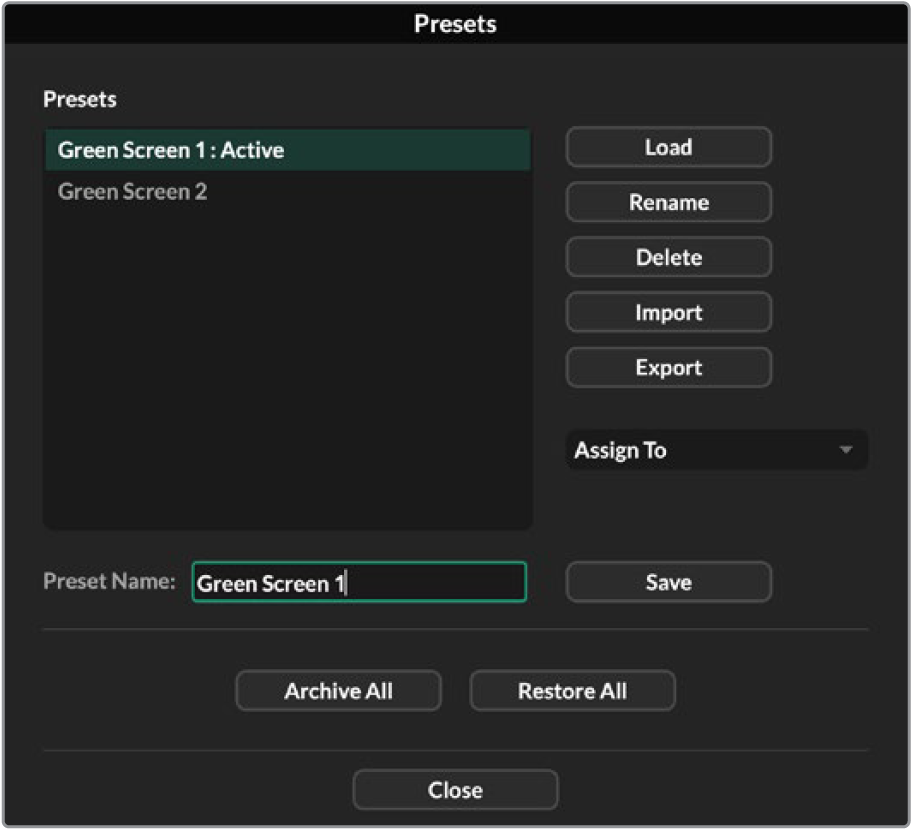

To create an archive click the folder symbol in the files and information section of Ultimatte Software Control, this will open the preset and archive window.

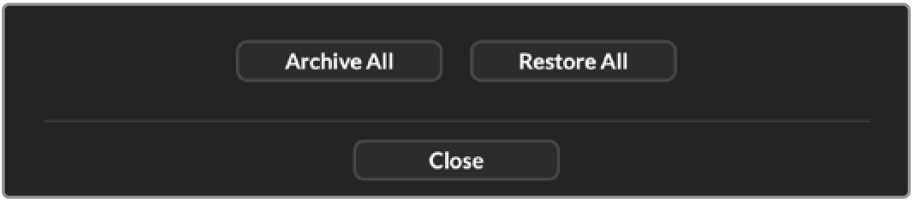

1. At the bottom of the preset and archive window click the ‘archive all’ button.

2. In the dialogue box choose a destination for your archive and type in a name. Click ‘save’.

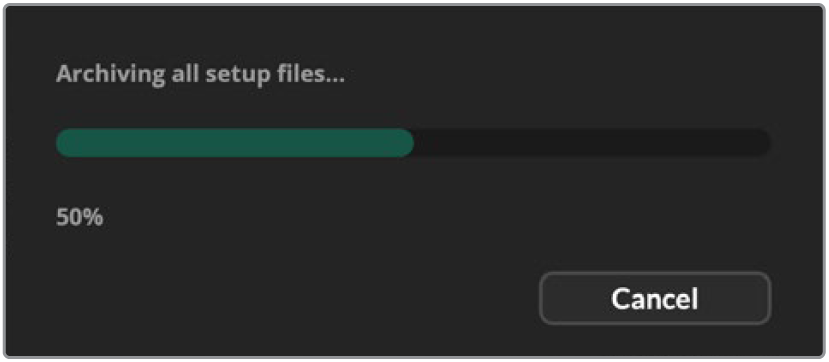

Your Ultimatte will now start creating the archive and display a progress bar. Once complete, the archive will appear as a .zip file on your computer.

Restoring an Archive

To restore an archive, click the folder symbol in the files and information section of Ultimatte Software Control.

1. At the bottom of the preset and archive window click the ‘restore all’ button.

2. In the dialogue box navigate to the archive file that you want to restore. Click ‘open’.

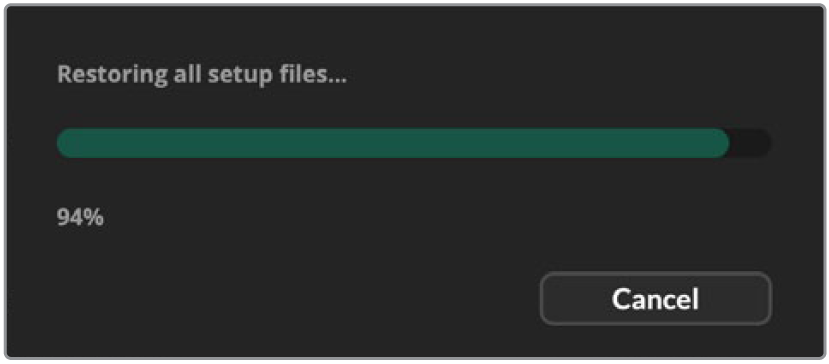

3. Your Ultimatte will now start restoring the archive and a progress bar will be displayed.



   When the restore is complete the settings, presets, quick presets, GPI settings and media pool stills will be available on your Ultimatte.
