Blackmagic Desktop Video User Manual Teranex Mini Rack Shelf

When using Blackmagic UltraStudio HD Mini with other equipment like Blackmagic ATEM Television Studio HD or Blackmagic Teranex Mini converters, you can use Teranex Mini Rack Shelf to install your units into a broadcast rack or road case. Up to three Teranex Mini sized units can fit neatly onto each 1RU Teranex Mini Rack Shelf.

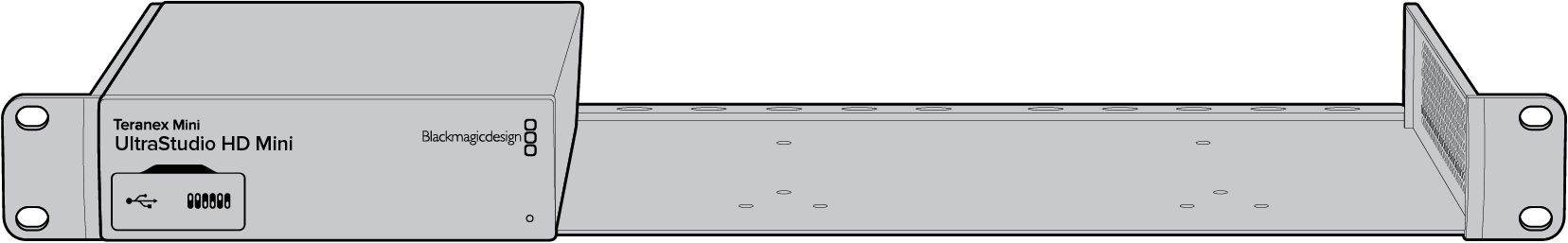

UltraStudio HD Mini is installed into the rack shelf by removing the unit’s rubber feet, if attached, and screwing the unit into the base of the shelf using the mounting holes on the underside.

The Teranex Mini Rack Shelf ships with two original blank panels which you can use to cover gaps if you don’t need to install additional units.

For more information, check the Blackmagic Design website at
