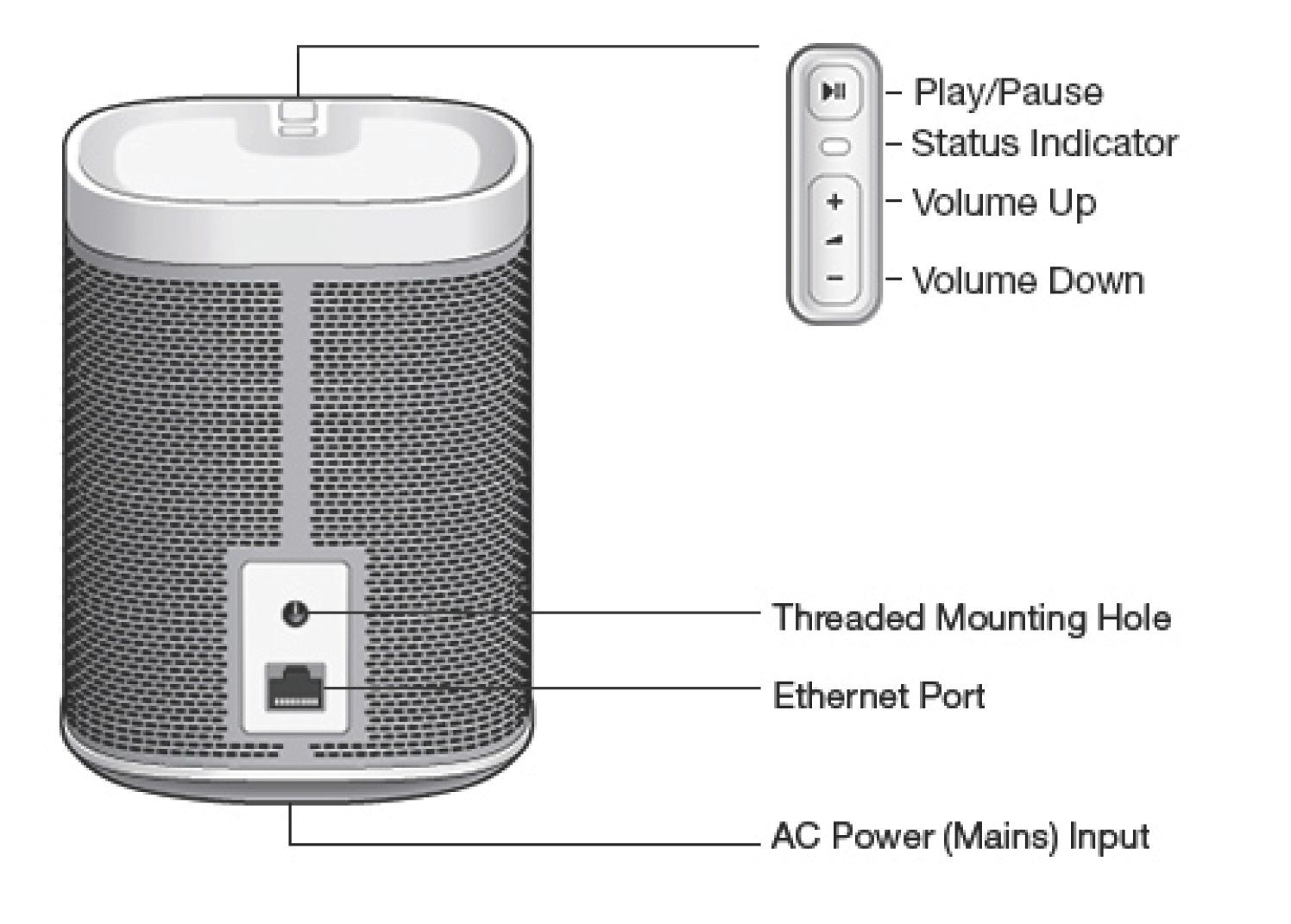

Sonos PLAY:1 User Manual PLAY:1 Top / Back
Sonos is designed to be always on; the system uses minimal electricity whenever it is not playing music. To quickly stop streaming audio in all rooms, select Pause All from Rooms. To stop streaming audio in one room, press the Play/Pause button on the player.
Toggles between playing and pausing the audio in this room (defaults to restarting the same music source when pressed unless a different source is selected).
Indicates the current status. During normal operation the white light is dimly lit. If desired, you can turn off the white light from Room Settings.
See Player Status Indicators for a complete list of status indications.
Volume up (+) Volume down (-)
Press these buttons to adjust the volume up and down.
Threaded mounting hole 1/4 inch / 20-thread
The PLAY:1 has an integrated mounting hole on the back of the unit so it can be wall-mounted if desired (mounting bracket not included.) See Wall Mounting for more information.
You can use an Ethernet cable (supplied) to connect the PLAY:1 to a router, computer, or additional network device such as a network-attached storage (NAS) device.
AC power (mains) input (100 - 240 VAC, 50/60 Hz)
Use only the supplied power cord to connect to a power outlet (using a third-party power cord will void your warranty).
Insert the power cord firmly into the PLAY:1 until it is flush with the bottom of the unit.
