GoPro MAX User Manual Removing the Door

There might be times when you need to remove your camera’s door.

🚧

WARNING: Only remove the door in a dry, dust-free environment. The camera is not waterproof when the door is open or removed.

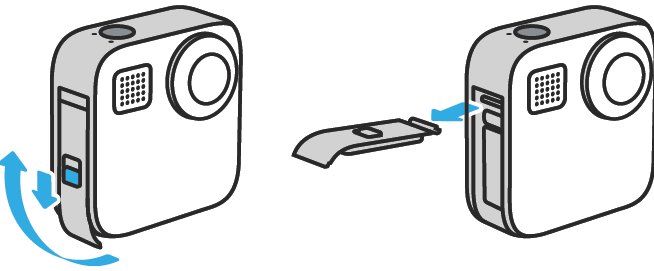

REMOVING THE DOOR

1. Unlock the door, slide it down, and flip it open.

2. Gently force the door open until it snaps off.



🚧

WARNING: Avoid using MAX with the door off. The battery could slide out during use.

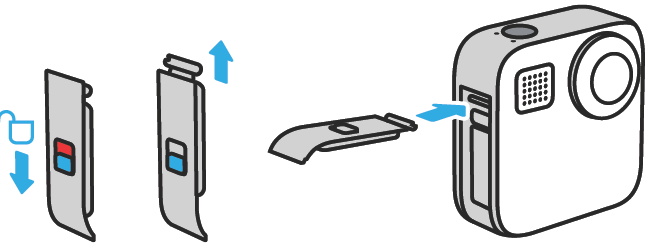

REATTACHING THE DOOR

1. Line the door up with the small silver bar.

2. Press the door tightly into the small silver bar until it snaps into place and is securely attached.



📘

NOTICE: Slide the door all the way up until there’s no gap, and then lock it. Don’t use the lock to slide the door closed.
