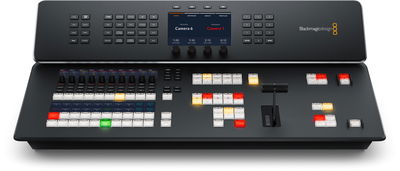

Blackmagic ATEM Television Studio HD User Manual Developer Information
Blackmagic SDI Camera Control Protocol
Version 1.3
If you are a software developer you can use the SDI Camera Control Protocol to construct devices that integrate with our products. Here at Blackmagic Design our approach is to open up our protocols and we eagerly look forward to seeing what you come up with!
Overview
The Blackmagic SDI Camera Control Protocol is used by ATEM switchers, Blackmagic 3G-SDI Shield for Arduino and the Blackmagic Camera Control app to provide Camera Control functionality with supported Blackmagic Design cameras. Please refer to the ‘Understanding Studio Camera Control’ chapter section of this manual, or the ATEM Switchers Manual and SDK manual for more information. These can be downloaded at .
This document describes an extensible protocol for sending a uni directional stream of small control messages embedded in the non-active picture region of a digital video stream. The video stream containing the protocol stream may be broadcast to a number of devices. Device addressing is used to allow the sender to specify which device each message is directed to.
Assumptions
Alignment and padding constraints are explicitly described in the protocol document. Bit fields are packed from LSB first. Message groups, individual messages and command headers are defined as, and can be assumed to be, 32 bit aligned.
Blanking Encoding
A message group is encoded into a SMPTE 291M packet with DID/SDID x51/x53 in the active region of VANC line 16.
Message Grouping
Up to 32 messages may be concatenated and transmitted in one blanking packet up to a maximum of 255 bytes payload. Under most circumstances, this should allow all messages to be sent with a maximum of one frame latency.
If the transmitting device queues more bytes of message packets than can be sent in a single frame, it should use heuristics to determine which packets to prioritize and send immediately. Lower priority messages can be delayed to later frames, or dropped entirely as appropriate.
Abstract Message Packet Format
Every message packet consists of a three byte header followed by an optional variable length data block. The maximum packet size is 64 bytes.
Destination device (uint8) | Device addresses are represented as an 8 bit unsigned integer. Individual devices are numbered 0 through 254 with the value 255 reserved to indicate a broadcast message to all devices. |
Command length (uint8) | The command length is an 8 bit unsigned integer which specifies the length of the included command data. The length does NOT include the length of the header or any trailing padding bytes. |
Command id (uint8) | The command id is an 8 bit unsigned integer which indicates the message type being sent. Receiving devices should ignore any commands that they do not understand. Commands 0 through 127 are reserved for commands that apply to multiple types of devices. Commands 128 through 255 are device specific. |
Reserved (uint8) | This byte is reserved for alignment and expansion purposes. It should be set to zero. |
Command data (uint8[]) | The command data may contain between 0 and 60 bytes of data. The format of the data section is defined by the command itself. |
Padding (uint8[]) | Messages must be padded up to a 32 bit boundary with 0x0 bytes. Any padding bytes are NOT included in the command length. |
Receiving devices should use the destination device address and or the command identifier to determine which messages to process. The receiver should use the command length to skip irrelevant or unknown commands and should be careful to skip the implicit padding as well.
Defined Commands
Command 0 : change configuration
Category (uint8) | The category number specifies one of up to 256 configuration categories available on the device. |
Parameter (uint8) | The parameter number specifies one of 256 potential configuration parameters available on the device. Parameters 0 through 127 are device specific parameters. Parameters 128 though 255 are reserved for parameters that apply to multiple types of devices. |
Data type (uint8) | The data type specifies the type of the remaining data. The packet length is used to determine the number of elements in the message. Each message must contain an integral number of data elements. |
Currently defined values are:
0: void / boolean | A void value is represented as a boolean array of length zero. The data field is a 8 bit value with 0 meaning false and all other values meaning true. |
1: signed byte | Data elements are signed bytes |
2: signed 16 bit integer | Data elements are signed 16 bit values |
3: signed 32 bit integer | Data elements are signed 32 bit values |
4: signed 64 bit integer | Data elements are signed 64 bit values |
5: UTF-8 string | Data elements represent a UTF-8 string with no terminating character. |
Data types 6 through 127 are reserved.
128: signed 5.11 fixed point | Data elements are signed 16 bit integers representing a real number with 5 bits for the integer component and 11 bits for the fractional componentThe fixed point representation is equal to the real value multiplied by 2^11. The representable range is from -16.0 to 15.9995 (15 + 2047/2048). |
Data types 129 through 255 are available for device specific purposes.
Operation type (uint8) | The operation type specifies what action to perform on the specified parameter. Currently defined values are: |
0: assign value | The supplied values are assigned to the specified parameter. Each element will be clamped according to its valid range. A void parameter may only be 'assigned' an empty list of boolean type. This operation will trigger the action associated with that parameter. A boolean value may be assigned the value zero for false, and any other value for true. |
1: offset / toggle value | Each value specifies signed offsets of the same type to be added to the current parameter values. The resulting parameter value will be clamped according to their valid range. It is not valid to apply an offset to a void value. Applying any offset other than zero to a boolean value will invert that value. |
Operation types 2 through 127 are reserved.
Operation types 128 through 255 are available for device specific purposes.
Data (void) | The data field is 0 or more bytes as determined by the data type and number of elements. |
The category, parameter, data type and operation type partition a 24 bit operation space.
Group | ID | Parameter | Type | Index | Minimum | Maximum | Interpretation |
---|---|---|---|---|---|---|---|
Lens | 0.0 | Focus | fixed16 | – | 0 | 1 | 0.0 = near, 1.0 = far |
0.1 | Instantaneous autofocus | void | – | – | – | trigger instantaneous autofocus | |
0.2 | Aperture (f-stop) | fixed16 | – | -1 | 16 | Aperture Value (where fnumber = sqrt(2^AV)) | |
0.3 | Aperture (normalised) | fixed16 | – | 0 | 1 | 0.0 = smallest, 1.0 = largest | |
0.4 | Aperture (ordinal) | int16 | – | 0 | n | Steps through available aperture values from minimum (0) to maximum (n) | |
0.5 | Instantaneous auto aperture | void | – | – | – | trigger instantaneous auto aperture | |
0.6 | Optical image stabilisation | boolean | – | – | – | true = enabled, false = disabled | |
0.7 | Set absolute zoom (mm) | int16 | – | 0 | max | Move to specified focal length in mm, from minimum (0) to maximum (max) | |
0.8 | Set absolute zoom (normalised) | fixed16 | – | 0 | 1 | Move to specified focal length: 0.0 = wide, 1.0 = tele | |
0.9 | Set continuous zoom (speed) | fixed16 | – | -1 | +1.0 | Start/stop zooming at specified rate: -1.0 = zoom wider fast, 0.0 = stop, +1 = zoom tele fast | |
Video | 1.0 Video mode | int8 | [0] = frame rate | – | – | 24, 25, 30, 50, 60 | |
[1] = M-rate | – | – | 0 = regular, 1 = M-rate | ||||
[2] = dimensions | – | – | 0 = NTSC, 1 = PAL, 2 = 720, 3 = 1080, 4 = 2k, 5 = 2k DCI, 6 = UHD | ||||
[3] = interlaced | – | – | 0 = progressive, 1 = interlaced | ||||
[4] = Color space | – | – | 0 = YUV | ||||
1.1 | Gain | int8 | 1 | 16 | 1 = 100 ISO, 2 = 200 ISO, 4 = 400 ISO, 8 = 800 ISO, 16 = 1600 ISO | ||
1.2 | Manual White Balance | int16 | [0] = color temp | 2500 | 10000 | Color temperature in K | |
int16 | [1] = tint | -50 | 50 | tint | |||
1.3 | Set auto WB | void | – | – | – | Calculate and set auto white balance | |
1.4 | Restore auto WB | void | – | – | – | Use latest auto white balance setting | |
1.5 | Exposure (us) | int32 | 1 | 42000 | time in us | ||
1.6 | Exposure (ordinal) | int16 | – | 0 | n | Steps through available exposure values from minimum (0) to maximum (n) | |
1.7 | Dynamic Range Mode | int8 enum | – | 0 | 1 | 0 = film, 1 = video, | |
1.8 | Video sharpening level | int8 enum | – | 0 | 3 | 0 = off, 1 = low, 2 = medium, 3 = high | |
Recording format int16
| – | – | fps as integer (eg 24, 25, 30, 50, 60, 120) | ||||
– | – | fps as integer, valid when sensor-off-speed set (eg 24, 25, 30, 33, 48, 50, 60, 120), no change will be performed if this value is set to 0 | |||||
– | – | in pixels | |||||
– | – | in pixels | |||||
– | – | [0] = file-M-rate | |||||
– | – | [1] = sensor-M-rate, valid when sensor-off-speed-set | |||||
– | – | [2] = sensor-off-speed | |||||
– | – | [3] = interlaced | |||||
– | – | [4] = windowed mode | |||||
1.10 | Set auto exposure mode | int8 | – | 0 | 4 | 0 = Manual Trigger, 1 = Iris, 2 = Shutter, 3 = Iris + Shutter, 4 = Shutter + Iris | |
1.11 | Shutter angle | int32 | – | 100 | 36000 | Shutter angle in degrees, multiplied by 100 | |
1.12 | Shutter speed | int32 | – | 24 | 2000 | Shutter speed value as a fraction of 1, so 50 for 1/50th of a second | |
1.13 | Gain | int8 | – | -128 | 127 | Gain in decibel (dB) | |
1.14 | ISO | int32 | – | 0 | 2147483647 | ISO value | |
Audio | 2.0 | Mic level | fixed16 | – | 0 | 1 |
|
2.1 | Headphone level | fixed16 | – | 0 | 1 |
| |
2.2 | Headphone program mix | fixed16 | – | 0 | 1 |
| |
2.3 | Speaker level | fixed16 | – | 0 | 1 |
| |
2.4 | Input type | int8 | – | 0 | 2 | 0 = internal mic, 1 = line level input, 2 = low mic level input, 3 = high mic level input | |
2.5 | Input levels | fixed16 | [0] ch0 | 0 | 1 | 0.0 = minimum, 1.0 = maximum | |
[1] ch1 | 0 | 1 | 0.0 = minimum, 1.0 = maximum | ||||
2.6 | Phantom power | boolean | – | – | – | true = powered, false = not powered | |
Output | 3.0 | Overlay enables | uint16 bit field | – | – | – | bit flags:
|
3.1 | Frame guides style (Camera 3.x) | int8 | [0] = frame guides style | 0 | 8 | 0 = HDTV, 1 = 4:3, 2 = 2.4:1, 3 = 2.39:1, 4 = 2.35:1, 5 = 1.85:1, 6 = thirds | |
3.2 | Frame guides opacity (Camera 3.x) | fixed16 | [1] = frame guide opacity | 0.1 | 1 | 0.0 = transparent, 1.0 = opaque | |
Overlays (replaces .1 and .2 above from Cameras 4.0) 3.3 | int8 | [0] = frame guides style | – | – | 0 = off, 1 = 2.4:1, 2 = 2.39:1, 3 = 2.35:1, 4 = 1.85:1, 5 = 16:9, 6 = 14:9, 7 = 4:3 | ||
[1] = frame guide opacity | 0 | 100 | 0 = transparent, 100 = opaque | ||||
[2] = safe area percentage | 0 | 100 | percentage of full frame used by safe area guide (0 means off) | ||||
[3] = grid style | – | – | bit flags: [0] = display thirds,
| ||||
Display | 4.0 | Brightness | fixed16 | – | 0 | 1 | 0.0 = minimum, 1.0 = maximum |
4.1 | Overlay enables | int16 bit field | – | – | – | 0x4 = zebra | |
0x8 = peaking | |||||||
4.2 | Zebra level | fixed16 | – | 0 | 1 |
| |
4.3 | Peaking level | fixed16 | – | 0 | 1 |
| |
4.4 | Color bars display time (seconds) | int8 | – | 0 | 30 | 0 = disable bars, 1-30 = enable bars with timeout (s) | |
4.5 | Focus Assist | int8 | [0] = focus assist method | – | – | 0 = Peak, 1 = Colored lines | |
[1] = focus line color | – | – | 0 = Red, 1 = Green, 2 = Blue, 3 = White, 4 = Black | ||||
Tally | 5.0 | Tally brightness | fixed16 | – | 0 | 1 | Sets the tally front and tally rear brightness to the same level. 0.0 = minimum, 1.0 = maximum |
5.1 | Front tally brightness | fixed16 | – | 0 | 1 | Sets the tally front brightness. 0.0 = minimum, 1.0 = maximum | |
5.2 | Rear tally brightness | fixed16 | – | 0 | 1 | Sets the tally rear brightness.
| |
Reference | 6.0 | Source | int8 enum | – | 0 | 2 | 0 = internal, 1 = program, 2 = external |
6.1 | Offset | int32 | – | – | – | +/- offset in pixels | |
Configuration | 7.0 | Real Time Clock | int32 | [0] time | _ | _ | BCD - HHMMSSFF (UCT) |
[1] date | _ | _ | BCD - YYYYMMDD | ||||
7.1 | System language | string | _ | _ | _ | ISO-639-1 two character language code | |
7.2 | Timezone | int32 | _ | _ | _ | Minutes offset from UTC | |
7.3 | Location | int64 | [0] latitude | _ | _ | BCD - s0DDdddddddddddd where s is the sign: 0 = north (+), 1 = south (-); DD degrees, dddddddddddd decimal degrees | |
[1] longitude | _ | _ | BCD - sDDDdddddddddddd where s is the sign: 0 = west (-), 1 = east (+); DDD degrees, dddddddddddd decimal degrees | ||||
Color Correction | 8.0 Lift Adjust fixed16 | [0] red | -2 | 2 | default 0.0 | ||
[1] green | -2 | 2 | default 0.0 | ||||
[2] blue | -2 | 2 | default 0.0 | ||||
[3] luma | -2 | 2 | default 0.0 | ||||
8.1 Gamma Adjust fixed16 | [0] red | -4 | 4 | default 0.0 | |||
[1] green | -4 | 4 | default 0.0 | ||||
[2] blue | -4 | 4 | default 0.0 | ||||
[3] luma | -4 | 4 | default 0.0 | ||||
8.2 Gain Adjust fixed16 | [0] red | 0 | 16 | default 1.0 | |||
[1] green | 0 | 16 | default 1.0 | ||||
[2] blue | 0 | 16 | default 1.0 | ||||
[3] luma | 0 | 16 | default 1.0 | ||||
8.3 Offset Adjust fixed16 | [0] red | -8 | 8 | default 0.0 | |||
[1] green | -8 | 8 | default 0.0 | ||||
[2] blue | -8 | 8 | default 0.0 | ||||
[3] luma | -8 | 8 | default 0.0 | ||||
8.4 | Contrast Adjust | fixed16 | [0] pivot | 0 | 1 | default 0.5 | |
[1] adj | 0 | 2 | default 1.0 | ||||
8.5 | Luma mix | fixed16 | – | 0 | 1 | default 1.0 | |
8.6 | Color Adjust | fixed16 | [0] hue | -1 | 1 | default 0.0 | |
[1] sat | 0 | 2 | default 1.0 | ||||
8.7 | Correction Reset Default | void | – | – | – | reset to defaults | |
Media | 10.0 Codec | [0] = basic codec | – | – | 0 = RAW, 1 = DNxHD, 2 = ProRes, 3 = Blackmagic RAW | ||
– | – | RAW: 0 = Uncompressed, 1 = lossy 3:1, 2 = lossy 4:1 | |||||
int8 enum [1] = codec variant | – | – | ProRes: 0 = HQ, 1 = 422, 2 = LT, 3 = Proxy, 4 = 444, 5 = 444XQ | ||||
– | – | Blackmagic RAW: 0 = Q0, 1 = Q5, 2 = 3:1, 3 = 5:1, 4 = 8:1, 5 = 12:1 | |||||
10.1 Transport mode int8 | [0] = mode | – | – | 0 = Preview, 1 = Play, 2 = Record | |||
[1] = speed | – | – | -ve = multiple speeds backwards, 0 = pause, +ve = multiple speeds forwards | ||||
[2] = flags | – | – | 1<<0 = loop, 1<<1 = play all, 1<<5 = disk1 active, 1<<6 = disk2 active, 1<<7 = time-lapse recording | ||||
[3] = active storage medium | – | – | 0 = CFast card, 1 = SD | ||||
PTZ Control | 11.0 | Pan/Tilt Velocity | fixed 16 | [0] = pan velocity | -1.0 | 1.0 | -1.0 = full speed left, 1.0 = full speed right |
[1] = tilt velocity | -1.0 | 1.0 | -1.0 = full speed down, 1.0 = full speed up | ||||
11.1 | Memory Preset | int8 enum | [0] = preset command | – | – | 0 = reset, 1 = store location, 2 = recall location | |
int8 | [1] = preset slot | 0 | 5 | – |
Example Protocol Packets
Packet Operation Length Byte | |||||||||||||||||
0 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | ||
header command data | |||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
destination | length | command | reserved | category | parameter | type | operation | ||||||||||
trigger instantaneous auto focus on camera 4 | 8 | 4 | 4 | 0 | 0 | 0 | 1 | 0 | 0 | ||||||||
turn on OIS on all cameras | 12 | 255 | 5 | 0 | 0 | 0 | 6 | 0 | 0 | 1 | 0 | 0 | 0 | ||||
set exposure to 10 ms on camera 4 (10 ms = 10000 us = 0x00002710) | 12 | 4 | 8 | 0 | 0 | 1 | 5 | 3 | 0 | 0x10 | 0x27 | 0x00 | 0x00 | ||||
add 15% to zebra level (15 % = 0.15 f = 0x0133 fp) | 12 | 4 | 6 | 0 | 0 | 4 | 2 | 128 | 1 | 0x33 | 0x01 | 0 | 0 | ||||
select 1080p 23.98 mode on all cameras | 16 | 255 | 9 | 0 | 0 | 1 | 0 | 1 | 0 | 24 | 1 | 3 | 0 | 0 | 0 | 0 | 0 |
subtract 0.3 from gamma adjust for green & blue (-0.3 ~= 0xfd9a fp) | 16 | 4 | 12 | 0 | 0 | 8 | 1 | 128 | 1 | 0 | 0 | 0x9a | 0xfd | 0x9a | 0xfd | 0 | 0 |
all operations combined | 76 | 4 | 4 | 0 | 0 | 0 | 1 | 0 | 0 | 255 | 5 | 0 | 0 | 0 | 6 | 0 | 0 |
1 | 0 | 0 | 0 | 4 | 8 | 0 | 0 | 1 | 5 | 3 | 0 | 0x10 | 0x27 | 0x00 | 0x00 | ||
4 | 6 | 0 | 0 | 4 | 2 | 128 | 1 | 0x33 | 0x01 | 0 | 0 | 255 | 9 | 0 | 0 | ||
1 | 0 | 1 | 0 | 24 | 1 | 3 | 0 | 0 | 0 | 0 | 0 | 4 | 12 | 0 | 0 | ||
8 | 1 | 128 | 1 | 0 | 0 | 0x9a | 0xfd | 0x9a | 0xfd | 0 | 0 |
Blackmagic Embedded Tally Control Protocol
Version 1.0 (30/04/14)
This section is for third party developers or users who may wish to add support for the Blackmagic Embedded Tally Control Protocol to their products or system. It describes the protocol for sending tally information embedded in the non-active picture region of a digital video stream.

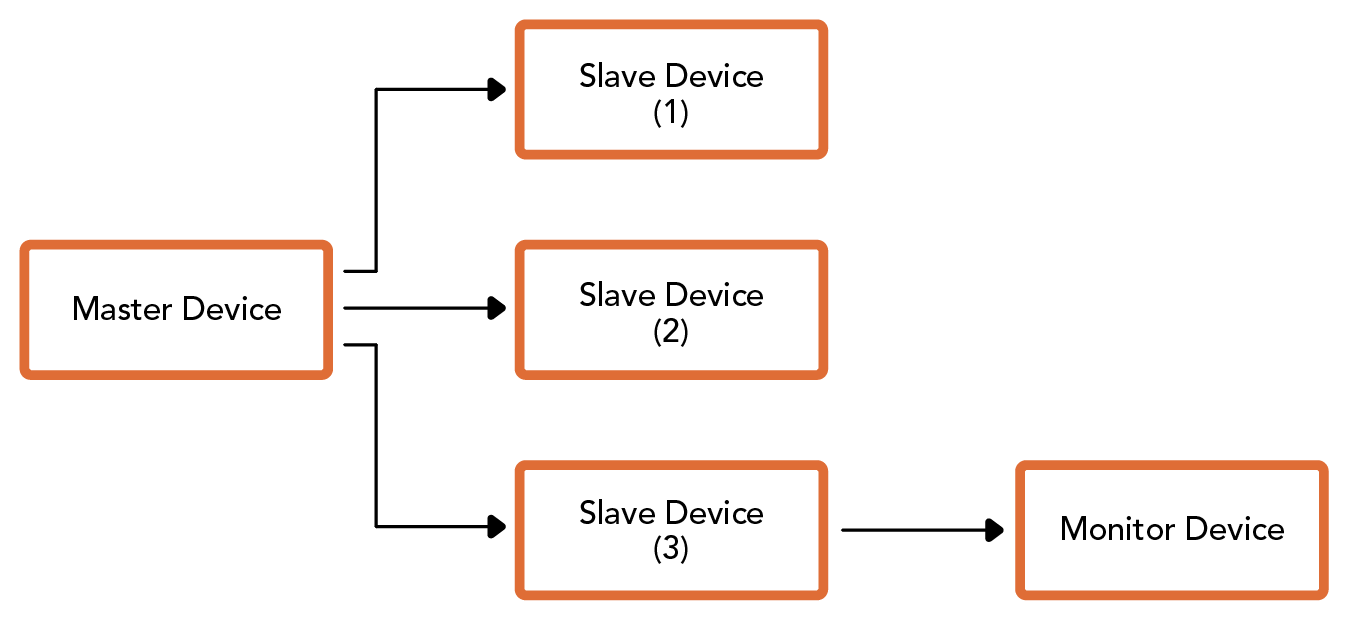

Data Flow
A master device such as a broadcast switcher embeds tally information into its program feed which is broadcast to a number of slave devices such as cameras or camera controllers. The output from the slave devices is typically fed back to the master device, but may also be sent to a video monitor.
The primary flow of tally information is from the master device to the slaves. Each slave device may use its device id to extract and display the relevant tally information.
Slave devices pass through the tally packet on their output and update the monitor tally status, so that monitor devices connected to that individual output may display tally status without knowledge of the device id they are monitoring.
Assumptions
Any data alignment / padding is explicit in the protocol. Bit fields are packed from LSB first.
Blanking Encoding
One tally control packet may be sent per video frame. Packets are encoded as a SMPTE 291M packet with DID/SDID x51/x52 in the active region of VANC line 15. A tally control packet may contain up to 256 bytes of tally information.
Packet Format
Each tally status consists of 4 bits of information:
uint4 | |
bit 0: | program tally status (0=off, 1=on) |
bit 1: | preview tally status (0=off, 1=on) |
bit 2-3: | reserved (0x0) |
The first byte of the tally packet contains the monitor device tally status and a version number.
Subsequent bytes of the tally packet contain tally status for pairs of slave devices. The master device sends tally status for the number of devices configured/supported, up to a maximum of 510.
struct tally
uint8 | |
bit 0: | monitor device program tally status (0=off, 1=on) |
bit 1: | monitor device preview tally status (0=off, 1=on) |
bit 2-3: | reserved (0b00) |
bit 4-7: | protocol version (0b0000) |
uint8[0] | |
bit 0: | slave device 1 program tally status (0=off, 1=on) |
bit 1: | slave device 1 device preview tally status (0=off, 1=on) |
bit 2-3: | reserved (0b00) |
bit 4: | slave device 2 program tally status (0=off, 1=on) |
bit 5: | slave device 2 preview tally status (0=off, 1=on) |
bit 6-7: | reserved (0b00) |
uint8[1] | |
bit 0: | slave device 3 program tally status (0=off, 1=on) |
bit 1: | slave device 3 device preview tally status (0=off, 1=on) |
bit 2-3: | reserved (0b00) |
bit 4: | slave device 4 program tally status (0=off, 1=on) |
bit 5: | slave device 4 preview tally status (0=off, 1=on) |
bit 6-7: . . . | reserved (0b00) |
Byte | 7 MSB | 6 | 5 | 4 | 3 | 2 | 1 | 0 LSB |
---|---|---|---|---|---|---|---|---|
0 | Version (0b0) | Version (0b0) | Version (0b0) | Version (0b0) | Reserved (0b0) | Reserved (0b0) | Monitor Preview | Monitor Program |
1 | Reserved (0b0) | Reserved (0b0) | Slave 1 Preview | Slave 1 Program | Reserved (0b0) | Reserved (0b0) | Slave 0 Preview | Slave 0 Program |
2 | Reserved (0b0) | Reserved (0b0) | Slave 3 Preview | Slave 3 Program | Reserved (0b0) | Reserved (0b0) | Slave 2 Preview | Slave 2 Program |
3 | ... |
Was this information helpful?
