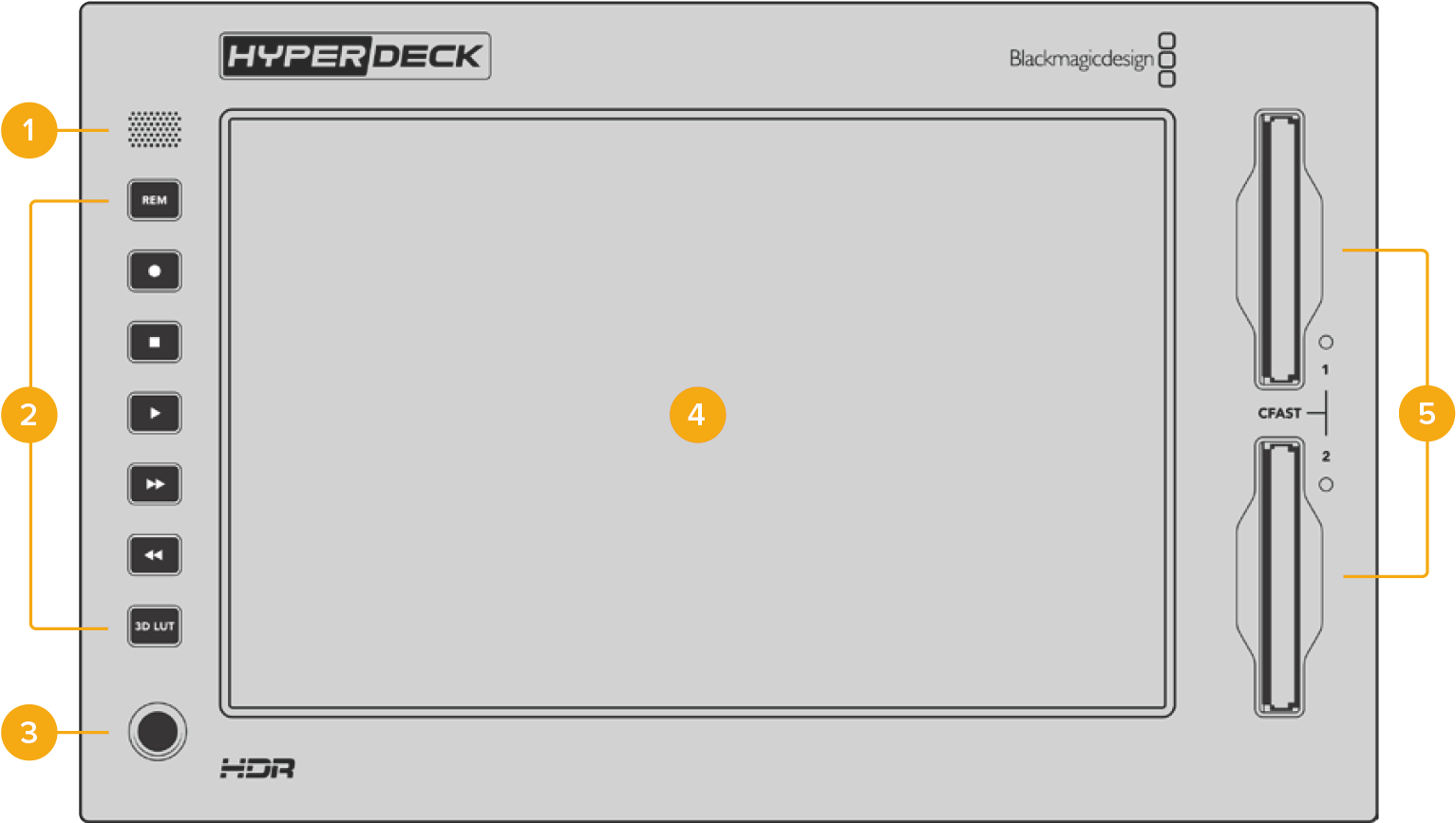

Blackmagic HyperDeck Extreme HDR User Manual HyperDeck Extreme Front Panel
The front panel includes soft touch buttons for easy, immediate access and an ultra bright 2000 nit HDR display to see your video in brilliant true to life colors.
1 Front Panel Speaker
The built in mono speaker on the front panel lets you check your audio levels directly from the front panel. Simply tap on the volume meters on the bottom right of the touchscreen display and adjust the speaker level using the slider.
Tap on the audio meters to display and adjust the speaker level
2 Soft Touch Buttons
The front panel features 7 soft touch buttons so you can quickly access traditional transport controls or apply LUTs. Each button is backlit when the unit is powered so you can easily see the buttons when the unit is installed in low light conditions, such as a dubbing facility.
If you are using a RS-422 device to control playback and recording remotely, press the ‘rem’ button. This will allow the your HyperDeck to be controlled externally from a device such as the HyperDeck Extreme Control or the HyperDeck Ethernet Protocol. The button will illuminate to indicate the remote feature is active. The button will also flash when the ‘identify HyperDeck’ checkbox is selected in HyperDeck Setup. | |
The five transport control buttons including the most commonly used functions for recording and playback; record, stop, play, fast forward and rewind. Use these buttons for immediate control over the record and playback functions. When active the selected button will illuminate. | |
3D LUT lets you toggle the active display LUT on the HDR LCD display. The button will illuminate when active. For more information on LUTs, including how to set your LUT and display it on the LCD and or monitor out, see the ‘LUTS’ section later in this manual. |
📘NOTE It is worth noting that if the unit does not have a valid signal connected, pressing the ‘record’ button has no effect on the unit. This is the same for the play, fast forward and rewind buttons when no storage media is connected.
3 Headphone Port
Connect a set of headphones to the 1/4” headphone jack on the front panel to listen to the audio. To change the headphone volume level, tap on the volume meters on the touchscreen display and adjust the ‘headphone level’ slider.

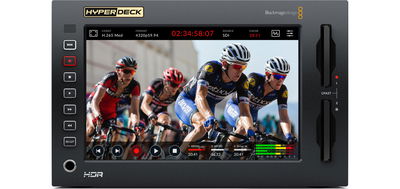

4 Touchscreen
The 7” LCD display features a large ultra bright HDR video display with intuitive touchscreen controls. The wide color gamut displays both Rec. 2020 and Rec. 709 color spaces and 100% of the DCI-P3 format. You can also display full screen video scopes. You can access all available on screen controls and menu options via the touchscreen display!
For more information on the menu settings and using the touchscreen, see the ‘touchscreen display’ section later in this manual.
5 CFast 2.0 Card Slots

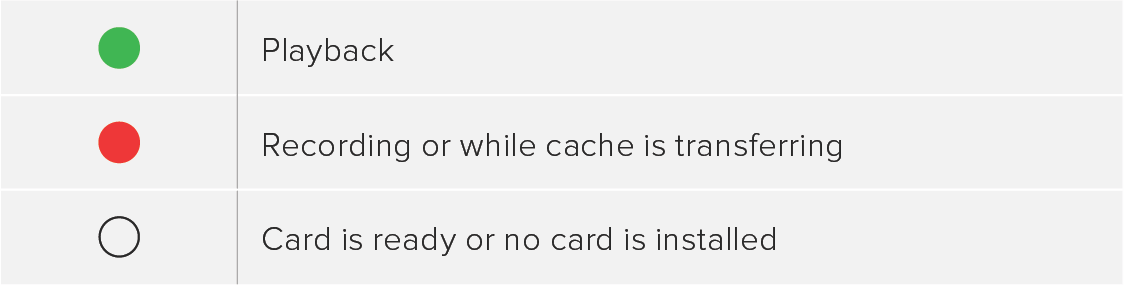

CFast slots on the front of the panel for your CFast cards. LED lights to the right of the slot indicate the media status.
