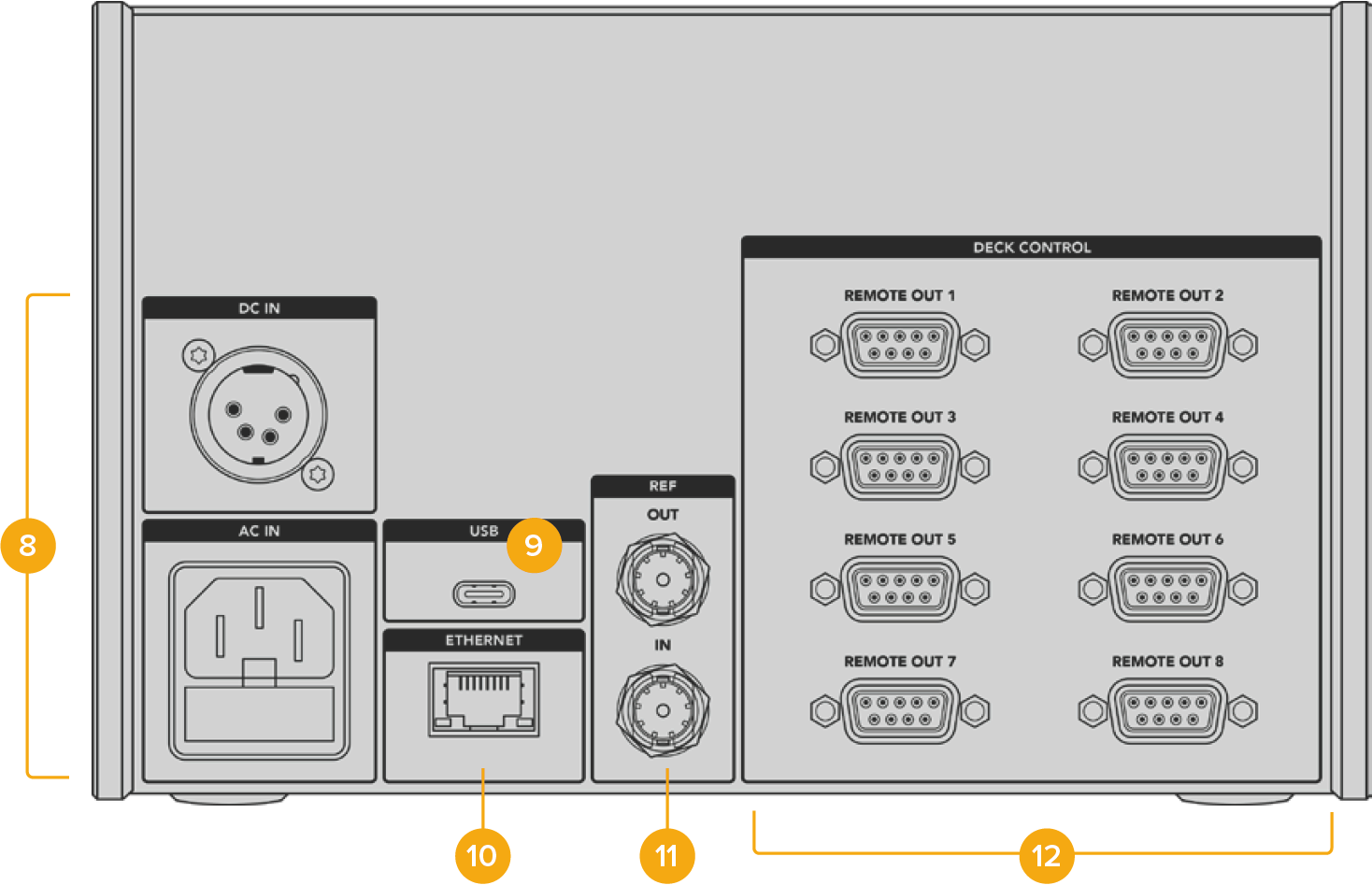

Blackmagic HyperDeck Extreme HDR User Manual HyperDeck Extreme Control Rear Panel

Blackmagic HyperDeck Extreme 8K HDR

8 Power Inputs

The HyperDeck Extreme Control has inputs for both AC and DC power.

9 USB

A USB port lets you connect your controller to a computer so you can update via the HyperDeck Setup Utility.

10 Ethernet

The Ethernet connection is not enabled at this time.

11 Reference

Reference out and reference in connections for synchronous recordings between connected devices.

12 Deck Control

Eight numbered RS-422 connections to connect up to 8 RS-422 enabled devices.
