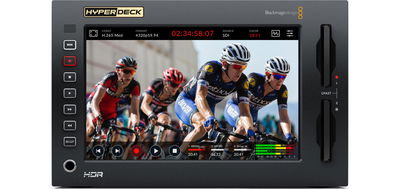

Blackmagic HyperDeck Extreme HDR User Manual Developer Information
Blackmagic HyperDeck Ethernet Protocol
The Blackmagic HyperDeck Ethernet Protocol is a text based protocol accessed by connecting to TCP port 9993 on HyperDeck Extreme. If you are a software developer you can use the protocol to construct devices that integrate with our products. Here at Blackmagic Design our approach is to open up our protocols and we eagerly look forward to seeing what you come up with!
You can connect to your HyperDeck recorder using the HyperDeck Ethernet Protocol using a command line program on your computer, such as Terminal on a Mac and putty on a Windows computer.
The HyperDeck Ethernet Protocol lets you schedule playlists and recordings. The following is an example of how to play 7 clips from clip number 5 onwards via the HyperDeck Ethernet Protocol. If your recorder is installed out of reach, you can also turn on the ‘remote’ feature via Ethernet.
On a Mac
Open the Terminal application which is located with the applications > utilities folder.
Type in “nc” and a space followed by the IP address of your HyperDeck Extreme another space and “9993” which is the HyperDeck Ethernet Protocol port number. For example type: nc 192.168.1.154 9993. The Protocol preamble will appear.
Type “playrange set: clip id: 5 count: 7” and press ‘return’. If you look on the timeline on the front panel of the HyperDeck Extreme, you will see in and out points marked around clips 5 through the end of clip 11.
Type “play”. Clips 5 through 11 will now play back.
To clear the playrange, type “playrange clear”
To exit from the protocol, type ‘quit’.
Protocol Commands
Command | Command Description |
|---|---|
help | Provides help text on all commands and parameters |
commands | return commands in XML format |
device info | return device information |
disk list | query clip list on active disk |
disk list: slot id: {n} | query clip list on disk in slot {n} |
quit | disconnect ethernet control |
ping | check device is responding |
preview: enable: {true/false} | switch to preview or output |
play | play from current timecode |
play: speed: {-5000 to 5000} | play at specific speed |
play: loop: {true/false} | play in loops or stop-at-end |
play: single clip: {true/false} | play current clip or all clips |
playrange | query play range setting |
playrange set: clip id: {n} | set play range to play clip {n} only |
playrange set: clip id: {n} count: {m} | set play range to {m} clips starting from clip {n} |
playrange set: in: {inT} out: {outT} | set play range to play between: - timecode {inT} and timecode {outT} |
playrange set: timeline in: {in} timeline out: {out} | set play range in units of frames between: - timeline position {in} and position {out} |
playrange clear | clear/reset play range setting |
play on startup | query unit play on startup state |
play on startup: enable: {true/false} | enable or disable play on startup |
play on startup: single clip: {true/false} | play single clip or all clips on startup |
play option | query play options |
play option: stop mode: {lastframe/nextclip/black} | set output frame when playback stops |
record | record from current input |
record: name: {name} | record named clip (supports UTF-8 name) |
record spill | spill current recording to next slot |
record spill: slot id: {n} | spill current recording to specified slot use current slot id to spill to same slot |
stop | stop playback or recording |
clips count | query number of clips on timeline |
clips get | query all timeline clips |
clips get: clip id: {n} | query a timeline clip info |
clips get: clip id: {n} count: {m} | query m clips starting from n |
clips get: version: {1/2/3} | query clip info using specified output version: version 1: id: name startT duration version 2: id: startT duration inT outT name version 3: id: startT duration inT outT folder/filename |
clips add: name: {name} | append a clip to timeline |
clips add: clip id: {n} name: {name} | insert clip before existing clip {n} |
clips add: in: {inT} out: {outT} name: {name} | append the {inT} to {outT} portion of clip |
clips remove: clip id: {n} | remove clip {n} from the timeline (invalidates clip ids following clip {n}) |
clips clear | empty timeline clip list |
transport info | query current activity |
slot info | query active slot |
slot info: slot id: {n} | query slot {n} |
slot select: slot id: {n} | switch to specified slot |
slot select: video format: {format} | load clips of specified format |
slot unblock | unblock active slot |
slot unblock: slot id: {n} | unblock slot {n} |
cache info | query cache status |
dynamic range | query dynamic range settings |
dynamic range: playback override: {off/Rec709/Rec2020_SDR/ HLG/ ST2084_300/ST2084_500/ ST2084_800/ST2084_1000/ ST2084_2000/ST2084_4000/ST2048} | set playback dynamic range override |
dynamic range: record override: {off/Rec709/Rec2020_SDR/ HLG/ST2084_300/ST2084_500/ ST2084_800/ST2084_1000/ ST2084_2000/ST2084_4000/ST2048} | set record dynamic range override |
notify | query notification status |
notify: remote: {true/false} | set remote notifications |
notify: transport: {true/false} | set transport notifications |
notify: slot: {true/false} | set slot notifications |
notify: configuration: {true/false} | set configuration notifications |
notify: dropped frames: {true/false} | set dropped frames notifications |
notify: display timecode: {true/false} | set display timecode notifications |
notify: timeline position: {true/false} | set playback timeline position notifications |
notify: playrange: {true/false} | set playrange notifications |
notify: cache: {true/false} | set cache notifications |
notify: dynamic range: {true/false} | set dynamic range notifications for input or playback video |
notify: slate: {true/false} | set digital slate notifications |
notify: clips: {true/false} | set timeline clips notifications where two types of changes can occur: add: partial update with list of clips and insert positions snapshot: complete update of all clips on timeline |
notify: disk: {true/false} | set disk clips notifications where two types of changes can occur: add: partial update with list of clips and insert positions snapshot: complete update of all clips on timeline |
notify: device info: {true/false} | set device info notifications |
notify: nas: {true/false} | set nas notifications triggered by commands such as “nas add” or “nas remove” |
goto: clip id: {start/end} | goto first clip or last clip |
goto: clip id: {n} | goto clip id {n} |
goto: clip id: +{n} | go forward {n} clips |
goto: clip id: -{n} | go backward {n} clips |
goto: clip: {start/end} | goto start or end of clip |
goto: clip: {n} | goto frame position {n} within current clip |
goto: clip: +{n} | go forward {n} frames within current clip |
goto: clip: -{n} | go backward {n} frames within current clip |
goto: timeline: {start/end} | goto first frame or last frame of timeline |
goto: timeline: {n} | goto frame position {n} within timeline |
goto: timeline: +{n} | go forward {n} frames within timeline |
goto: timeline: -{n} | go backward {n} frames within timeline |
goto: timecode: {timecode} | goto specified timecode |
goto: timecode: +{timecode} | go forward {timecode} duration |
goto: timecode: -{timecode} | go backward {timecode} duration |
goto: slot id: {n} | goto slot id {n} equivalent to “slot select: slot id: {n}” |
jog: timecode: {timecode} | jog to timecode |
jog: timecode: +{timecode} | jog forward {timecode} duration |
jog: timecode: -{timecode} | jog backward {timecode} duration |
shuttle: speed: {-5000 to 5000} | shuttle with speed |
remote | query unit remote control state |
remote: enable: {true/false} | enable or disable remote control |
remote: override: {true/false} | session override remote control |
configuration | query configuration settings |
configuration: video input: {SDI/HDMI/component/composite} | change the video input |
configuration: audio input: {embedded/XLR/RCA} | change the audio input |
configuration: file format: {format} | switch to one of the supported formats: DNxHR_HQX QuickTimeDNxHR_HQX DNxHR_SQ QuickTimeDNxHR_SQ DNxHR_LB QuickTimeDNxHR_LB QuickTimeProResLT QuickTimeProRes QuickTimeProResHQ H.264Low H.264Medium H.264High H.264High10_422 H.265Low H.265Medium H.265High |
configuration: audio codec: {PCM/AAC} | switch to specific audio codec |
configuration: timecode input: {external/embedded/preset/clip} | change the timecode input |
configuration: timecode output: {clip/timeline} | change the timecode output |
configuration: timecode preference: {default/dropframe/nondropframe} | whether or not to use drop frame timecodes when not otherwise specified |
configuration: timecode preset: {timecode} | set the timecode preset |
configuration: audio input channels: {n} | set the number of audio channels recorded to {n} |
configuration: record trigger: {none/recordbit/timecoderun} | change the record trigger |
configuration: record prefix: {name} | set the record prefix name (supports UTF-8 name) |
configuration: append timestamp: {true/false} | append timestamp to recorded filename |
configuration: genlock input resync: {true/false} | enable or disable genlock input resync |
configuration: xlr input id: {n} xlr type: {line/mic} | configure xlr input type multiple xlr inputs can be configured in a single command |
uptime | return time since last boot |
format: slot id: {n} prepare: {exFAT/HFS+} name: {name} | prepare formatting operation filesystem type with volume name {name} “slot id” can be omitted for the current mounted slot “name” defaults to current volume name if mounted (supports UTF-8) |
format: confirm: {token} | perform a pre-prepared formatting operation using token |
identify: enable: {true/false} | identify the device |
watchdog: period: {period in seconds} | client connection timeout |
reboot | reboot device |
slate clips | slate clips information |
slate project | slate project information |
slate lens | slate lens information |
nas list | list all the NAS shares that have been added |
nas discovered | list all NAS servers that have been discovered via mDNS |
nas deselect | unmount the currently selected NAS share |
connection protocol: response version: {version} | change the output of “clips get”, “disk list” and related responses (this command does not affect other client connections) version 1 205 clips get id: filename startT duration 519 clips info id: startT duration inT outT filename 206 disk list id: filename codec format duration 520 disk list info id: filename codec format duration version 2 205 clips get id: startT duration inT outT folder/filename 519 clips info id: startT duration inT outT folder/filename 206 disk list id: codec format duration folder/filename 520 disk list info id: codec format duration folder/filename |
Multiline only commands: | Command Description |
authenticate:↵ | authenticate user for secure access |
username: {username} | case sensitive username |
password: {password} | case sensitive password |
slate clips:↵ | set slate clips information: |
reel: {n} | slate reel number, where {n} is in [1, 999] |
scene id: {id} | slate scene id value, where {id} is a string |
shot type: {WS/MS/BCU/MCU/ECU/none} | slate shot type |
take: {n} | slate take number, where {n} is in [1, 99] |
take scenario: {PU/VFX/SER/none} | slate take scenario |
take auto inc: {true/false} | slate take auto increment |
good take: {true/false} | slate good take |
environment: {interior/exterior} | slate environment |
day night: {day/night} | slate day or night |
slate project:↵ | set slate project information: |
project name: {name} | project name (can be empty, supports UTF-8) |
camera: {index} | set camera index e.g. A |
director: {name} | director (can be empty, supports UTF-8) |
camera operator: {name} | camera operator (can be empty, supports UTF-8) |
slate lens:↵ | set lens information: |
lens type: {type} | lens type (can be empty, supports UTF-8) |
iris: {type} | camera iris (can be empty, supports UTF-8) |
focal length: {length} | focal length (can be empty, supports UTF-8) |
distance: {distance} | lens distance (can be empty, supports UTF-8) |
filter: {filter} | lens filter (can be empty, supports UTF-8) |
nas add:↵ | add a NAS share, to be selected by the GUI or the nas select command |
url: {url} | URL of the NAS share e.g. smb://server.local/path/to/share |
username: {username} | username to connect as (can be empty, defaults to guest) |
password: {password} | password to connect with (can be empty) |
nas remove:↵ | remove a previously added NAS share |
url: {url} | URL of the NAS share e.g. smb://server.local/path/to/share |
nas select:↵ | mount a previously added NAS share asynchronously. |
url: {url} | URL of the NAS share e.g. smb://server.local/path/to/share Use “slot info” or “notify: slot: true” to determine when share is mounted.” |
Command Combinations
You can combine the parameters into a single command, for example:
play: speed: 200 loop: true single clip: true
Or for configuration:
configuration: video input: SDI audio input: XLR
Or to switch to the second disk, but only play NTSC clips:
slot select: slot id: 2 video format: NTSC
Using XML
While you can use the Terminal to talk to HyperDeck, if you are writing software you can use XML to confirm the existence of a specific command based on the firmware of the HyperDeck you are communicating with. This helps your software user interface adjust to the capabilities of the specific HyperDeck model and software version.
Protocol Details
Connection
The HyperDeck Ethernet server listens on TCP port 9993.
Basic syntax
The HyperDeck protocol is a line oriented text protocol. Lines from the server will be separated by an ascii CR LF sequence. Messages from the client may be separated by LF or CR LF.
New lines are represented in this document as a "↵" symbol.
Command syntax
Command parameters are usually optional. A command with no parameters is terminated with a new line:
{Command name}↵
If parameters are specified, the command name is followed by a colon, then pairs of parameter names and values. Each parameter name is terminated with a colon character:
{Command name}: {Parameter}: {Value} {Parameter}: {Value} ...↵
Response syntax
Simple responses from the server consist of a three digit response code and descriptive text terminated by a new line:
{Response code} {Response text}↵
If a response carries parameters, the response text is terminated with a colon, and parameter name and value pairs follow on subsequent lines until a blank line is returned:
{Response code} {Response text}:↵
{Parameter}: {Value}↵
{Parameter}: {Value}↵
...
↵
Successful response codes
A simple acknowledgement of a command is indicated with a response code of 200:
200 ok↵
Other successful responses carry parameters and are indicated with response codes in the range of 201 to 299.
Failure response codes
Failure responses to commands are indicated with response codes in the range of 100 to 199:
syntax error
unsupported parameter
invalid value
unsupported
disk full
no disk
disk error
timeline empty
internal error
out of range
no input
remote control disabled
clip not found
connection rejected
invalid state
invalid codec
invalid format
invalid token
format not prepared
parameterized single line command not supported
Asynchronous response codes
The server may return asynchronous messages at any time. These responses are indicated with response codes in the range of 500 to 599:
5xx {Response Text}:↵
{Parameter}: {Value}↵
{Parameter}: {Value}↵
↵
Connection response
On connection, an asynchronous message will be delivered:
500 connection info:↵
protocol version: {Version}↵
model: {Model Name}↵
↵
Connection rejection
Only one client may connect to the server at a time. If other clients attempt to connect concurrently, they will receive an error and be disconnected:
120 connection rejected↵
Timecode syntax
Timecodes are expressed as non-drop-frame timecode in the format:
HH:MM:SS:FF
Handling of deck "remote" state
The “remote” command may be used to enable or disable the remote control of the deck. Any attempt to change the deck state over ethernet while remote access is disabled will generate an error:
111 remote control disabled↵
To enable or disable remote control:
The current remote control state may be overridden allowing remote access over ethernet irrespective of the current remote control state:
The override state is only valid for the currently connected ethernet client and only while the connection remains open.
The “remote” command may be used to query the remote control state of the deck by specifying no parameters:
The deck will return the current remote control state:
Asynchronous remote control information change notification is disabled by default and may be configured with the “notify” command. When enabled, changes in remote state will generate a “510 remote info:”asynchronous message with the same parameters as the “210 remote info:” message.
Closing connection
The "quit" command instructs the server to cleanly shut down the connection:
Checking connection status
The "ping" command has no function other than to determine if the server is responding:
ping↵
Getting help
The "help" or "?" commands return human readable help text describing all available commands and parameters:
Or:
The server will respond with a list of all supported commands:
201 help:↵
{Help Text}↵
{Help Text}↵ ↵
Switching to preview mode
The "preview" command instructs the deck to switch between preview mode and output mode:
preview: enable: {"true", "false"}↵
Playback will be stopped when the deck is switched to preview mode. Capturing will be stopped when the deck is switched to output mode.
Controlling device playback
The “play” command instructs the deck to start playing:
play↵
The play command accepts a number of parameters which may be used together in most combinations.
By default, the deck will play all remaining clips on the timeline then stop. The “single clip” parameter may be used to override this behaviour:
play: single clip: {"true", "false"}↵
By default, the deck will play at normal (100%) speed. An alternate speed may be specified in percentage between -5000 and 5000:
play: speed: {% normal speed}↵
By default, the deck will stop playing when it reaches to the end of the timeline. The “loop” parameter may be used to override this behaviour:
play: loop: {“true”, “false”}↵
The “playrange” command returns the current playrange setting if any:
playrange↵
To override this behaviour and select a particular clip:
playrange set: clip id: {Clip ID}↵
To only play a certain number of clips starting at a particular clip:
playrange set: clip id: {n} count: {m}↵
To only play a certain timecode range:
playrange set: in: {in timecode} out: {out timecode}↵
To play a certain timeline range:
playrange set: timeline in: {in} timeline out: {out}↵
To clear a set playrange and return to the default value:
playrange clear↵
The “play on startup command” instructs the deck on what action to take on startup. By default, the deck will not play. Use the “enable” command to start playback after each power up.
play on startup: enable {“true”, “false”}↵
By default, the unit will play back all clips on startup. Use the “single clip” command to override:
play on startup: single clip: {“true”, “false”}↵
The “play option” command queries the output frame for when playback stops:
play option↵
By default, the deck will display the last frame when playback stops. To override this behaviour, the “stop mode” parameter can be used:
play option: stop mode: {“lastframe”, “nextframe”, “black”}↵
Stopping deck operation
The "stop" command instructs the deck to stop the current playback or capture:
stop↵
Changing timeline position
The “goto” command instructs the deck to switch to playback mode and change its position within the timeline.
To go to the start of a specific clip:
goto: clip id: {Clip ID}↵
To move forward/back {count} clips from the current clip on the current timeline:
goto: clip id: +/-{count}↵
Note that if the resultant clip id goes beyond the first or last clip on timeline, it will be clamp at the first or last clip.
To go to the start or end of the current clip:
goto: clip: {“start”, “end”}↵
To go to the start of the first clip or the end of the last clip:
goto: timeline: {“start”, “end”}↵
To go to a specified timecode:
goto: timecode: {timecode}↵
To move forward or back a specified duration in timecode:
goto: timecode: {“+”, “-”}{duration in timecode}↵
To specify between slot 1 and slot 2:
goto: slot id: {Slot ID}↵
Note that only one parameter/value pair is allowed for each goto command.
Enumerating supported commands and parameters
The "commands" command returns the supported commands:
commands↵
The command list is returned in a computer readable XML format:
212 commands:
<commands>↵
<command name="…"><parameter name="…"/>…</command>↵
<command name="…"><parameter name="…"/>…</command>↵
...
</commands>↵
↵
More XML tokens and parameters may be added in later releases.
Controlling asynchronous notifications
The “notify” command may be used to enable or disable asynchronous notifications from the server. To enable or disable transport notifications:
notify: transport: {“true”, “false”}↵
To enable or disable slot notifications:
notify: slot: {“true”, “false”}↵
To enable or disable remote notifications:
notify: remote: {“true”, “false”}↵
To enable or disable configuration notifications:
notify: configuration: {“true”, “false”}↵
Multiple parameters may be specified. If no parameters are specified, the server returns the current state of all notifications:
209 notify:↵
transport: {“true”, “false”}↵
slot: {“true”, “false”}↵
remote: {“true”, “false”}↵
configuration: {“true”, “false”}↵
dropped frames: {“true”, “false”}↵
display timecode: {“true”, “false”}↵
timeline position: {“true”, “false”}↵
playrange: {“true”, “false”}↵
cache: {“true”, “false”}↵
dynamic range: {“true”, “false”}↵
slate: {“true”, “false”}↵
clips: {“true”, “false”}↵
disk: {“true”, “false”}↵
device info: {“true”, “false”}↵
↵
Retrieving device information
The "device info" command returns information about the connected deck device:
device info↵
The server will respond with:
204 device info:↵
protocol version: {Version}↵
model: {Model Name}↵
unique id: {unique alphanumeric identifier}↵
slot count: {number of storage slots}↵
software version: {software version}↵
name: {device name}↵
↵
Retrieving slot information
The “slot info” command returns information about a slot. Without parameters, the command returns information for the currently selected slot:
slot info↵
If a slot id is specified, that slot will be queried:
slot info: slot id: {Slot ID}↵
The server will respond with slot specific information:
slot name: {“slot name”}
status: {“empty”, “mounting”, “error”, “mounted”}↵
volume name: {Volume name}↵
recording time: {recording time available in seconds}↵
video format: {disk’s default video format}↵
blocked: {“true”, “false”}↵
total size: {total size in bytes}
↵
Asynchronous slot information change notification is disabled by default and may be configured with the “notify” command. When enabled, changes in slot state will generate a “502 slot info:” asynchronous message with the same parameters as the “202 slot info:” message.
Retrieving clip information
The “disk list” command returns the information for each playable clip on a given disk. Without parameters, the command returns information for the current active disk:
disk list↵
If a slot id is specified, the disk in that slot will be queried:
disk list: slot id: {Slot ID}↵
The server responds with the list of all playable clips on the disk in the format of: Index, name, formats, and duration in timecode:
206 disk list:↵
slot id: {Slot ID}↵
{clip index}: {name} {file format} {video format} {Duration timecode}↵
{clip index}: {name} {file format} {video format} {Duration timecode}↵
…
↵
Note that the clip index starts from 1.
Retrieving clip count
The "clips count" command returns the number of clips on the current timeline:
clips count ↵
The server responds with the number of clips:
214 clips count: ↵
clip count: {Count}↵
Retrieving timeline information
The “clips get” command returns information for each available clip on the current timeline. Without parameters, the command returns information for all clips on timeline:
clips get↵
The server responds with a list of clip IDs, names and timecodes:
205 clips info:↵
clip count: {Count}↵
{Clip ID}: {Name} {Start timecode} {Duration timecode}↵
{Clip ID}: {Name} {Start timecode} {Duration timecode}↵
…
↵
The “clips get” command provides a more detailed response when using the “version: 2” parameter:
clips get: version: 2↵
The server responds with a list of clip IDs, timecodes, in points, out points and names. Clip name is the last field making it simpler to parse when names have embedded spaces.
{Clip ID}: {Start timecode} {Duration timecode} {inTimecode} {outTimecode} {name}↵
{Clip ID}: {Start timecode} {Duration timecode} {inTimecode} {outTimecode} {name}↵
…
Retrieving transport information
The “transport info” command returns the state of the transport:
transport info ↵
The server responds with transport specific information:
208 transport info:↵
status: {“preview”, “stopped”, “play”, “forward”, “rewind”,
“jog”, “shuttle”,”record”}↵
speed: {Play speed between -5000 and 5000 %}↵
slot id: {Slot ID or “none”}↵
slot name: {“slot name”}↵
clip id: {Clip ID or “none”}↵
single clip: {“true”, “false”}↵
display timecode: {timecode}↵
timecode: {timecode}↵
video format: {Video format}↵
loop: {“true”, “false”}↵
timeline: {n}↵
input video format: {Video format”}↵
dynamic range: {“off”, “Rec709”, “Rec2020 _ SDR”, “HLG”, “ST2084 _ 300”, “ST2084 _ 500”, “ST2084 _ 800”, “ST2084 _ 1000”, “ST2084 _ 2000”, “ST2084 _ 4000”, “ST2048” or “none”}↵
↵
The “timecode” value is the timecode within the current timeline for playback or the clip for record. The “display timecode” is the timecode displayed on the front of the deck. The two timecodes will differ in some deck modes.
Asynchronous transport information change notification is disabled by default and may be configured with the “notify” command. When enabled, changes in transport state will generate a “508 transport info:” asynchronous message with the same parameters as the “208 transport info:” message.
Video Formats
The following video formats are currently supported on HyperDeckExtreme HDR:
NTSC, PAL, NTSCp, PALp
720p50, 720p5994, 720p60
1080p23976, 1080p24, 1080p25, 1080p2997, 1080p30
1080i50, 1080i5994, 1080i60
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
4Kp23976, 4Kp24, 4Kp25, 4Kp2997, 4Kp30
4Kp50, 4Kp5994, 4Kp60
The following video formats are currently supported on HyperDeckExtreme 8K HDR:
4320p23.98, 4320p24, 4320p25, 4320p29.97, 4320p30, 4320p50, 4320p59.94, 4320p60 8Kp23976, 8Kp24, 8Kp25
Video format support may vary between models and software releases.
File Formats
HyperDeck Extreme HDR supports the following file formats:
H.265Low
H.265Medium
H.265High
H.264High_SDI
H.264High
H.264Medium
H.264Low
QuickTimeProResHQ
QuickTimeProRes
QuickTimeProResLT
QuickTimeDNxHR_HQX
DNxHR_HQX
QuickTimeDNxHR_SQ
DNxHR_SQ
QuickTimeDNxHR_LB
DNxHR_LB
Supported file formats may vary between models and software releases.
Querying and updating configuration information
The “configuration” command may be used to query the current configuration of the deck:
configuration↵
The server returns the configuration of the deck:
211 configuration:↵
audio input: {“embedded”, “XLR”, “RCA”}↵
audio mapping: {audio input source}↵
video input: {“SDI”, “HDMI”, “component””}↵
file format: {File format}↵
audio codec: {“PCM”,”AAC”}↵
timecode input: {“external”, “embedded”, “internal”, “preset”, “clip”}↵
timecode output: {“clip”, “timeline”}↵
timecode preference: {“default”, “dropframe”, “nondropframe”}↵
timecode preset: {“timecode”}↵
audio input channels: {“n”}↵
record trigger: {“none”,”recordbit”, “timecoderun”}↵
record prefix: {“name”}↵
append timestamp: {“true”, “false”}↵
genlock input resync: {“true”, “false”}↵
xlr input id: {“n”}↵
xlr type: {“line”,”mic”}↵
↵
One or more configuration parameters may be specified to change the configuration of the deck.
To change the current video input:
configuration: video input: {“SDI”, “HDMI”, “component”}↵
Valid video inputs may vary between models. To configure the current audio input:
configuration: audio input: {“embedded”, “XLR”, “RCA”}↵
Valid audio inputs may vary between models.
To configure the current file format:
configuration: file format: {File format}↵
Note that changes to the file format may require the deck to reset, which will cause the client connection to be closed. In such case, response code 213 will be returned (instead of 200) before the client connection is closed:
“213 deck rebooting”
Asynchronous configuration information change notification is disabled by default and may be configured with the “notify” command. When enabled, changes in configuration will generate a “511 configuration:” asynchronous message with the same parameters as the “211 configuration:” message.
Selecting active slot and video format
The “slot select” command instructs the deck to switch to a specified slot, or/and to select a specified output video format. To switch to a specified slot:
slot select: slot id: {slot ID}↵
To select the output video format:
slot select: video format: {video format}↵
Either or all slot select parameters may be specified. Note that selecting video format will result in a rescan of the disk to reconstruct the timeline with all clips of the specified video format.
Clearing the current timeline
The "clips clear" command instructs the deck to empty the current timeline:
clips clear↵
The server responds with
200 ok↵
Adding a clip to the current timeline
The "clips add:" command instructs the deck to add a clip to the current timeline:
clips add: name: {"clip name"}↵
The server responds with
200 ok↵
or in case of error
1xx {error description}↵
Configuring the watchdog
The “watchdog” command instructs the deck to monitor the connected client and terminate the connection if the client is inactive for at least a specified period of time.
To configure the watchdog:
watchdog: period: {period in seconds}↵
To avoid disconnection, the client must send a command to the server at least every {period} seconds. Note that if the period is set to 0 connection monitoring will be disabled.
Network Area Storage
On networks using multicast DNS the “nas discovered” command will list network servers the HyperDeck has discovered:
nas discovered↵
225 nas host info:
CloudStoreMini.local. CloudStoreMini
CloudStore80.local. CloudStore80
CloudStore320.local. CloudStore320
A network share can be added to the HyperDeck using ‘nas add’. For guest logins username and password can be omitted.
nas add:
url: smb://CloudStore80.local/Studio1
For shares that require a username and password consider using the secure mode of the HyperDeck Ethernet protocol to avoid passwords being sent as plaintext.
nas add:
url: smb://192.168.1.1/Main
username: user1234
password: Password1234
Once a share has been added it can be mounted using ‘nas select’ to make it available for recording and playback. Many shares can be added with ‘nas add’ but only one share can be mounted at a time using ‘nas select’.
HyperDeck Control REST API
If you are a software developer you can build custom applications or leverage ready to use tools such as REST client or Postman to seamlessly control and interact with HyperDeck disk recorders using HyperDeck Control REST API. This API enables you to perform a wide range of operations, such as starting or stopping recordings, managing playback, accessing disk information and much more. Whether you’re developing a custom application tailored to your specific needs or utilizing existing tools, this API empowers you to unlock the full potential of HyperDeck disk recorders with ease. We look forward to seeing what you come up with!
Transport Control API
API for controlling Transport on Blackmagic Design products.
GET /transports/0
Get device’s basic transport status.
Response
200 - OK
The response is a JSON object.
Name | Type | Description |
|---|---|---|
mode | string | Transport mode. Possible values are: InputPreview, InputRecord, Output. |
PUT /transports/0
Set device’s basic transport status.
Parameters
Name | Type | Description |
|---|---|---|
mode | string | Transport mode. Possible values are: InputPreview, Output. |
Response
204 - No Content
GET /transports/0/stop
Determine if transport is stopped.
Response
200 - OK The response is a JSON object.
PUT /transports/0/stop
Stop transport.
Response 204 - No Content
GET /transports/0/play
Determine if transport is playing.
Response
200 - OK
The response is a JSON object.
PUT /transports/0/play
Start playing on transport.
Response 204 - No Content
GET /transports/0/playback
Get playback state.
Response
200 - OK
The response is a JSON object.
Name | Type | Description |
|---|---|---|
type | string | Possible values are: Play, Jog, Shuttle, Var. |
loop | boolean | When true playback loops from the end of the timeline to the beginning of the timeline |
singleClip | boolean | When true playback loops from the end of the current clip to the beginning of the current clip |
speed | number | Playback Speed, 1.0 for normal forward playback |
position | integer | Playback position on the timeline in units of video frames |
PUT /transports/0/playback
Set playback state.
Parameters
Name | Type | Description |
|---|---|---|
type | string | Possible values are: Play, Jog, Shuttle, Var. |
loop | boolean | When true playback loops from the end of the timeline to the beginning of the timeline |
singleClip | boolean | When true playback loops from the end of the current clip to the beginning of the current clip |
speed | number | Playback Speed, 1.0 for normal forward playback |
position | integer | Playback position on the timeline in units of video frames |
Response
204 - No Content
GET /transports/0/record
Get record state.
Response
200 - OK
The response is a JSON object.
Name | Type | Description |
|---|---|---|
recording | boolean | Is transport in Input Record mode |
PUT /transports/0/record
Set record state.
Parameters
Name | Type | Description |
|---|---|---|
recording | boolean | Is transport in Input Record mode |
clipName | string | Used to set the requested clipName to record to, when specifying “recording” attribute to True |
Response
204 - No Content
System Control API
API for controlling the System Modes on Blackmagic Design products.
GET /system
Get device system information.
Response
200 - OK
The response is a JSON object.
Name | Type | Description |
|---|---|---|
codecFormat | object | |
codecFormat.codec | string | Currently selected codec |
codecFormat.container | string | Multimedia container format |
videoFormat | object | |
videoFormat.name | string | Video format serialised as a string |
videoFormat.frameRate | string | Frame rate Possible values are: 23.98, 24.00, 24, 25.00, 25, 29.97, 30.00, 30, 47.95, 48.00, 48, 50.00, 50, 59.94, 60.00, 60, 119.88, 120.00, 120. |
videoFormat.height | number | Height dimension of video format |
videoFormat.width | number | Width dimension of video format |
videoFormat.interlaced | boolean | Is the display format interlaced? |
GET /system/supportedCodecFormats
Get the list of supported codecs.
Response
200 - OK
The response is a JSON object.
Name | Type | Description |
|---|---|---|
codecs | array | |
codecs[i] | object | |
codecs[i].codec | string | Currently selected codec |
codecs[i].container | string | Multimedia container format |
GET /system/codecFormat
Get the currently selected codec.
Response
200 - OK
The response is a JSON object.
Name | Type | Description |
|---|---|---|
codec | string | Currently selected codec |
container | string | Multimedia container format |
PUT /system/codecFormat
Set the codec.
Parameters
Name | Type | Description |
|---|---|---|
codec | string | Currently selected codec |
container | string | Multimedia container format |
Response
204 - No Content
GET /system/videoFormat
Get the currently selected video format.
Response
200 - OK
The response is a JSON object.
Name | Type | Description |
|---|---|---|
name | string | Video format serialised as a string |
frameRate | string | Frame rate Possible values are: 23.98, 24.00, 24, 25.00, 25, 29.97, 30.00, 30, 47.95, 48.00, 48, 50.00, 50, 59.94, 60.00, 60, 119.88, 120.00, 120. |
height | number | Height dimension of video format |
width | number | Width dimension of video format |
interlaced | boolean | Is the display format interlaced? |
PUT /system/videoFormat
Set the video format.
Parameters
Name | Type | Description |
|---|---|---|
frameRate | string | Frame rate Possible values are: 23.98, 24.00, 24, 25.00, 25, 29.97, 30.00, 30, 47.95, 48.00, 48, 50.00, 50, 59.94, 60.00, 60, 119.88, 120.00, 120. |
height | number | Height dimension of video format |
width | number | Width dimension of video format |
interlaced | boolean | Is the display format interlaced? |
Response
204 - No Content
GET /system/supportedVideoFormats
Get the list of supported video formats for the current system state.
Response
200 - OK
The response is a JSON object.
Name | Type | Description |
|---|---|---|
formats | array | |
formats[i] | object | |
formats[i].frameRate | string | Frame rate Possible values are: 23.98, 24.00, 24, 25.00, 25, 29.97, 30.00, 30, 47.95, 48.00, 48, 50.00, 50, 59.94, 60.00, 60, 119.88, 120.00, 120. |
formats[i].height | number | Height dimension of video format |
formats[i].width | number | Width dimension of video format |
formats[i].interlaced | boolean | Is the display format interlaced? |
Media Control API
API for controlling media devices in Blackmagic Design products.
GET /media/workingset
Get the list of media devices currently in the working set.
Response
200 - OK
The response is a JSON object.
Name | Type | Description |
|---|---|---|
size | integer | The fixed size of this device’s working set |
workingset (required) | array | |
workingset[i] | object | |
workingset[i].index | integer | Index of this media in the working set |
workingset[i].activeDisk | boolean | Is this current item the active disk |
workingset[i].volume | string | Volume name |
workingset[i].deviceName | string | Internal device name of this media device |
workingset[i].remainingRecordTime | integer | Remaining record time on media device in seconds |
workingset[i].totalSpace | integer | Total space on media device in bytes |
workingset[i].remainingSpace | integer | Remaining space on media device in bytes |
workingset[i].clipCount | integer | Number of clips currently on the device |
GET /media/active
Get the currently active media device.
Response
200 - OK
The response is a JSON object.
Name | Type | Description |
|---|---|---|
workingsetIndex | integer | Working set index of the active media device |
deviceName | string | Internal device name of this media device |
PUT /media/active
Set the currently active media device.
Parameters
Name | Type | Description |
|---|---|---|
workingsetIndex | integer | Working set index of the media to become active |
Response
204 - No Content
GET /media/devices/doformatSupportedFilesystems
Get the list of filesystems available to format the device.
Response
200 - OK
The response is a JSON object.
GET /media/devices/{deviceName}
Get information about the selected device.
Parameters
Name | Type | Description |
|---|---|---|
{deviceName} | string |
Response
200 - OK
The response is a JSON object.
Name | Type | Description |
|---|---|---|
state | string | The current state of the media device. Possible values are: None, Scanning, Mounted, Uninitialised, Formatting, RaidComponent. |
GET /media/devices/{deviceName}/doformat
Get a format key, used to format the device with a put request.
Parameters
Name | Type | Description |
|---|---|---|
{deviceName} | string |
Response
200 - OK
The response is a JSON object.
Name | Type | Description |
|---|---|---|
deviceName | string | Internal device name of this media device |
key | string | The key used to format this device, it must be fetched with the GET request and then provided back with a PUT request |
PUT /media/devices/{deviceName}/doformat
Perform a format of the media device.
Parameters
Name | Type | Description |
|---|---|---|
{deviceName} | string |
Name | Type | Description |
|---|---|---|
key | string | The key used to format this device, it must be fetched with the GET request and then provided back with a PUT request |
filesystem | string | Filesystem to format to (supportedFilesystems returns list of supported fileSystems) |
volume | string | Volume name to set for the disk after format |
Response
204 - No Content
Timeline Control API
API for controlling playback timeline.
GET /timelines/0
Get the current playback timeline.
Response
200 - OK
The response is a JSON object.
Name | Type | Description |
|---|---|---|
clips | array | |
clips[i] | object | |
clips[i].clipUniqueId | integer | Unique ID used to identify this clip |
clips[i].frameCount | integer | Number of frames in this clip on the timeline |
DELETE /timelines/0
Clear the current playback timeline.
Response
204 - No Content
POST /timelines/0/add
Add a clip to the end of the timeline.
Parameters
This parameter can be one of the following types:
Name | Type | Description |
|---|---|---|
clips | integer | Unique ID used to identify this clip |
Name | Type | Description |
|---|---|---|
clips | array | |
clips[i] | integer | Unique ID used to identify this clip |
Response
204 - No Content
Event Control API
API For working with built-in websocket.
GET /event/list
Get the list of events that can be subscribed to using the websocket API.
Response
200 - OK
The response is a JSON object.
Name | Type | Description |
|---|---|---|
events | array | |
events[i] | string | List of events that can be subscribed to using the websocket API |
Notification websocket - 1.0.0
Service that notifies subscribers of device state changes.
messages
Subscribe (The messages from the server/device)
(JSON)
Name | Type | Description |
|---|---|---|
.data | object | |
.data.action | string | Possible values are: subscribe, unsubscribe, listSubscriptions, listProperties . |
.data.properties | array | |
.data.properties[i] | string | Device property the user can subscribe to. The user can either choose a value from the predefined enum or provide a wildcard string. Possible values are: /media/active, /system, /system/codecFormat, /system/videoFormat, /timelines/0, /transports/0, /transports/0/stop, /transports/0/ play, /transports/0/playback, /transports/0/record . Must match the pattern: .*. |
.data.values | object | An object with property names as the key and a property value as json. Check the next section for a the device properties and their return values. |
.data.success | boolean | |
.type | string | Possible values are: response . |
.id | number | Optional parameter that repeats the id in the output for tracking messages |
(JSON)
Name | Type | Description |
|---|---|---|
.data | object | |
.data.action | string | Possible values are: propertyValueChanged . |
.data.property | string | Device property the user can subscribe to. The user can either choose a value from the predefined enum or provide a wildcard string. Possible values are: /media/active, /system, /system/codecFormat, /system/videoFormat, /timelines/0, /transports/0, /transports/0/stop, /transports/0/ play, /transports/0/playback, /transports/0/record . Must match the pattern: .*. |
.data.value | object | An object with property names as the key and a property value as json. Check the next section for a the device properties and their return values. |
.type | string | Possible values are: event . |
Publish (The messages that user can send to the server/device)
(JSON)
Name | Type | Description |
|---|---|---|
.data | object | |
.data.action | string | Possible values are: subscribe, unsubscribe, listSubscriptions, listProperties . |
.data.properties | array | |
.data.properties[i] | string | Device property the user can subscribe to. The user can either choose a value from the predefined enum or provide a wildcard string. Possible values are: /media/active, /system, /system/codecFormat, /system/videoFormat, /timelines/0, /transports/0, /transports/0/stop, /transports/0/ play, /transports/0/playback, /transports/0/record . Must match the pattern: .*. |
.data.values | object | An object with property names as the key and a property value as json. Check the next section for a the device properties and their return values. |
.data.success | boolean | |
.type | string | Possible values are: response . |
.id | number | Optional parameter that repeats the id in the output for tracking messages |
Device Properties
/media/active
The value JSON returned via the eventResponse when the /media/active property changes on the device:
Name | Type | Description |
|---|---|---|
.workingsetIndex | integer | Working set index of the active media device |
.deviceName | string | Internal device name of this media device |
/system
The value JSON returned via the eventResponse when the /system property changes on the device:
Name | Type | Description |
|---|---|---|
.codecFormat | object | Currently selected codec |
.codecFormat.codec | string | Currently selected codec |
.codecFormat.container | string | Multimedia container format |
.videoFormat | object | Currently selected video format |
.videoFormat.frameRate | string | Frame rate Possible values are: 23.98, 24.00, 24, 25.00, 25, 29.97, 30.00, 30, 47.95, 48.00, 48, 50.00, 50, 59.94, 60.00, 60, 119.88, 120.00, 120 . |
.videoFormat.height | number | Height dimension of video format |
.videoFormat.width | number | Width dimension of video format |
.videoFormat.interlaced | boolean | Is the display format interlaced? |
.videoFormat.name | string | Video format serialised as a string |
/system/codecFormat
Currently selected codec
The value JSON returned via the eventResponse when the /system/codecFormat property changes on the device:
Name | Type | Description |
|---|---|---|
.codec | string | Currently selected codec |
.container | string | Multimedia container format |
/system/videoFormat
Currently selected video format
The value JSON returned via the eventResponse when the /system/videoFormat property changes on the device:
Name | Type | Description |
|---|---|---|
.frameRate | string | Frame rate Possible values are: 23.98, 24.00, 24, 25.00, 25, 29.97, 30.00, 30, 47.95, 48.00, 48, 50.00, 50, 59.94, 60.00, 60, 119.88, 120.00, 120 . |
.height | number | Height dimension of video format |
.width | number | Width dimension of video format |
.interlaced | boolean | Is the display format interlaced? |
.name | string | Video format serialised as a string |
/timelines/0
The value JSON returned via the eventResponse when the /timelines/0 property changes on the device:
Name | Type | Description |
|---|---|---|
.clips | array | |
.clips[i] | object | |
.clips[i].clipUniqueId | integer | Unique ID used to identify this clip |
.clips[i].frameCount | integer | Number of frames in this clip on the timeline |
/transports/0
The value JSON returned via the eventResponse when the /transports/0 property changes on the device:
Name | Type | Description |
|---|---|---|
.mode | string | Transport mode Possible values are: InputPreview, InputRecord, Output . |
/transports/0/stop
true when transport mode is InputPreview or when in Output mode and speed is 0
The value JSON returned via the eventResponse when the /transports/0/stop property changes on the device:
/transports/0/play
True when transport is in Output mode and speed is non-zero
The value JSON returned via the eventResponse when the /transports/0/play property changes on the device:
/transports/0/playback
The value JSON returned via the eventResponse when the /transports/0/playback property changes on the device:
Name | Type | Description |
|---|---|---|
.type | string | Possible values are: Play, Jog, Shuttle, Var . |
.loop | boolean | When true playback loops from the end of the timeline to the beginning of the timeline |
.singleClip | boolean | When true playback loops from the end of the current clip to the beginning of the current clip |
.speed | number | Playback speed, 1.0 for normal forward playback |
.position | integer | Playback position on the timeline in units of video frames |
/transports/0/record
The value JSON returned via the eventResponse when the /transports/0/record property changes on the device:
Name | Type | Description |
|---|---|---|
.recording | boolean | Is transport in Input Record mode |
Was this information helpful?
