TP-Link Archer MR600

TP-Link 4G+ Cat6 AC1200 User Manual OneMesh with Seamless Roaming

TP-Link Archer MR600

This chapter introduces the TP-Link OneMeshTM feature.

  • Set Up a OneMesh Network

  • Manage Devices in the OneMesh Network

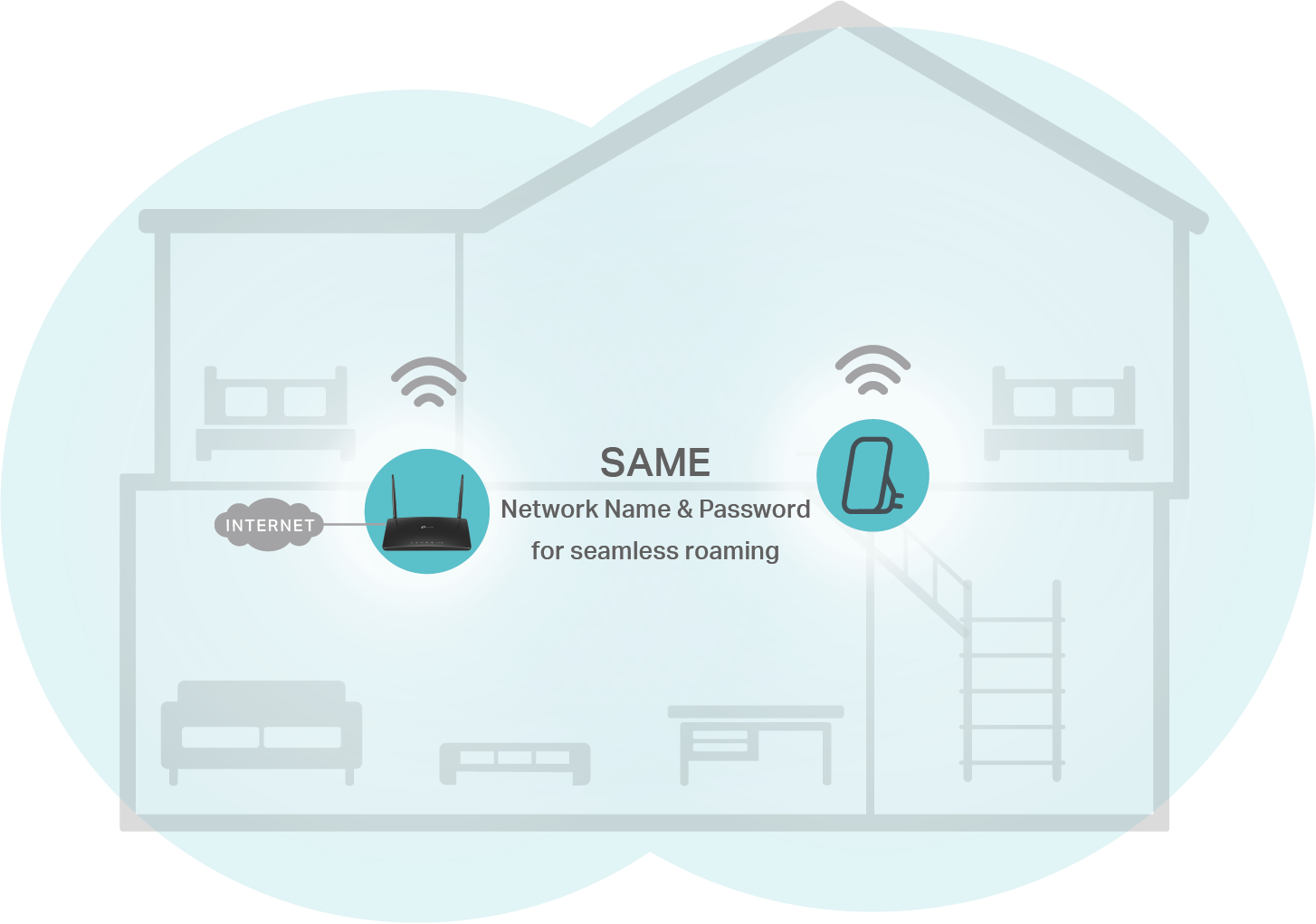

TP-Link OneMesh router and TP-Link OneMesh extenders work together to form one unified Wi-Fi network. Walk through your home and stay connected with the fastest possible speeds thanks to OneMesh’s seamless coverage.

Unified Wi-Fi Network

Router and extenders share the same wireless settings, including network name, password, access control settings and more.

Seamless Roaming

Devices automatically switch between your router and extenders as you move through your home for the fastest possible speeds.

Easy Setup and Management

Set up a OneMesh network with a push of WPS buttons. Manage all network devices on the Tether app or at your router’s web management page.

To check full list of TP-Link OneMesh devices, scan the QR code, or visit https://www.tp-link.com/One-Mesh/compatibility.

Unified OneMesh Network

Set Up a OneMesh Network

TP-Link OneMesh extender will automatically join the router’s OneMesh network once connected. Check on the router‘s web management page to see if the OneMesh network is well-configured.

If the extender is connected to this router:

  1. Visit http://tplinkmodem.net, and log in with your TP-Link ID or the password you set for the router.

  2. Go to Basic > OneMesh or Advanced > OneMesh.

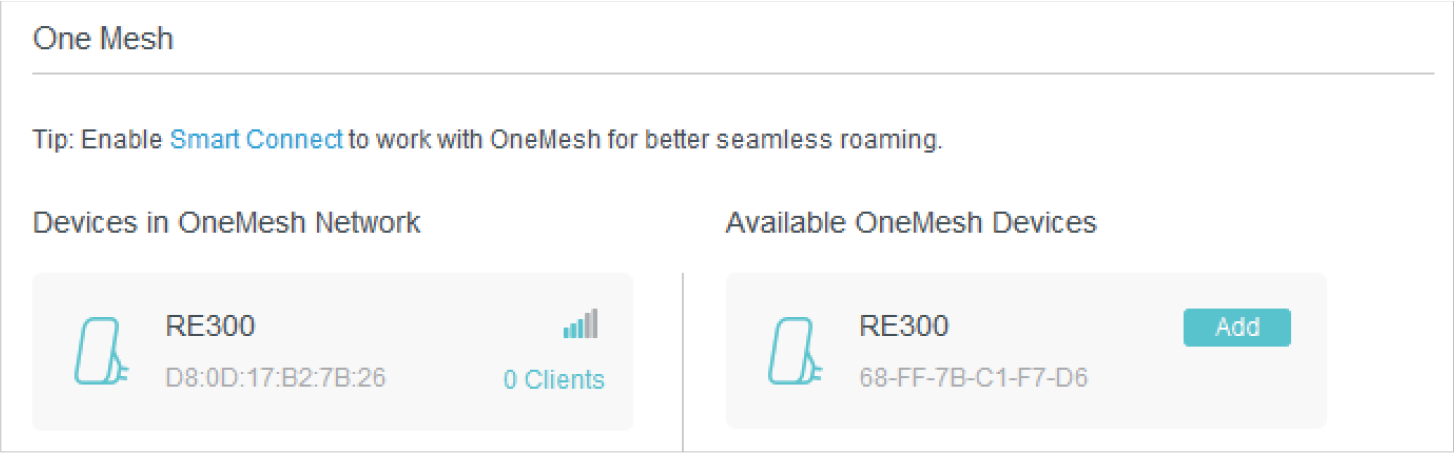

  3. When an extender joins the OneMesh network, it will be listed in the Devices in OneMesh Network list. Otherwise, you need to find it in the Available OneMesh Devices list and click Add to add it to the OneMesh network.

Now your router and extenders successfully form one OneMesh network!

📘

Tips: It is recommended to enable Smart Connect feature on Wireless > Wireless Settings to enjoy a seamless connection between dual-band networks. With Smart Connect enabled, the router’s 2.4GHz and 5GHz share the same SSID (network name) and password.

If the extender is not connected to this router

  1. Connect one or more OneMesh extenders to this router by following the setup instructions in the extenders’ manuals. Note: To check full list of TP-Link OneMesh extenders or other devices, visit https://www.tp-link.com/onemesh/compatibility.

  2. Visit http://tplinkmodem.net, and log in with your TP-Link ID or the password you set for the router.

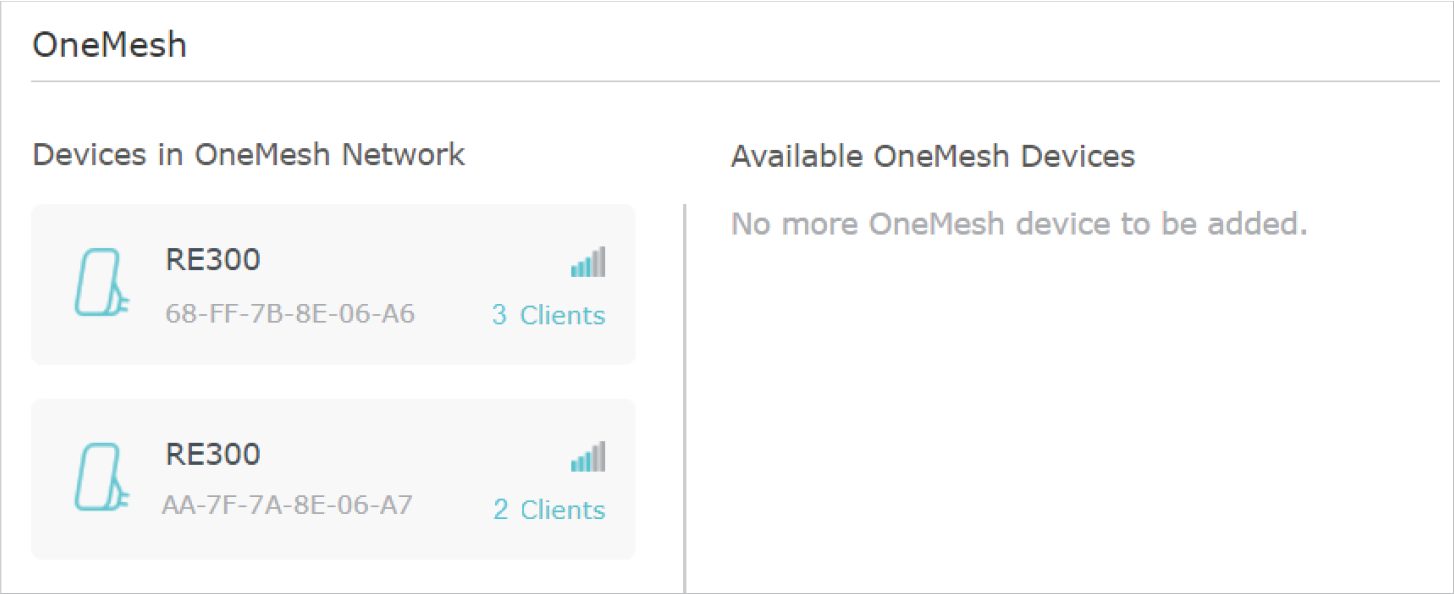

  3. Go to Basic > OneMesh or Advanced > OneMesh to check the devices list.

📘

Tips: It is recommended to enable Smart Connect feature on Wireless > Wireless Settings to enjoy a seamless connection between dual-band networks. With Smart Connect enabled, the router’s 2.4GHz and 5GHz share the same SSID (network name) and password.

Manage Devices in the OneMesh Network

In a OneMesh network, you can manage all mesh devices and clients on your router’s web page.

To view all mesh devices and clients in the OneMesh network:

  1. Visit http://tplinkmodem.net, and log in with your TP-Link ID or the password you set for the router.

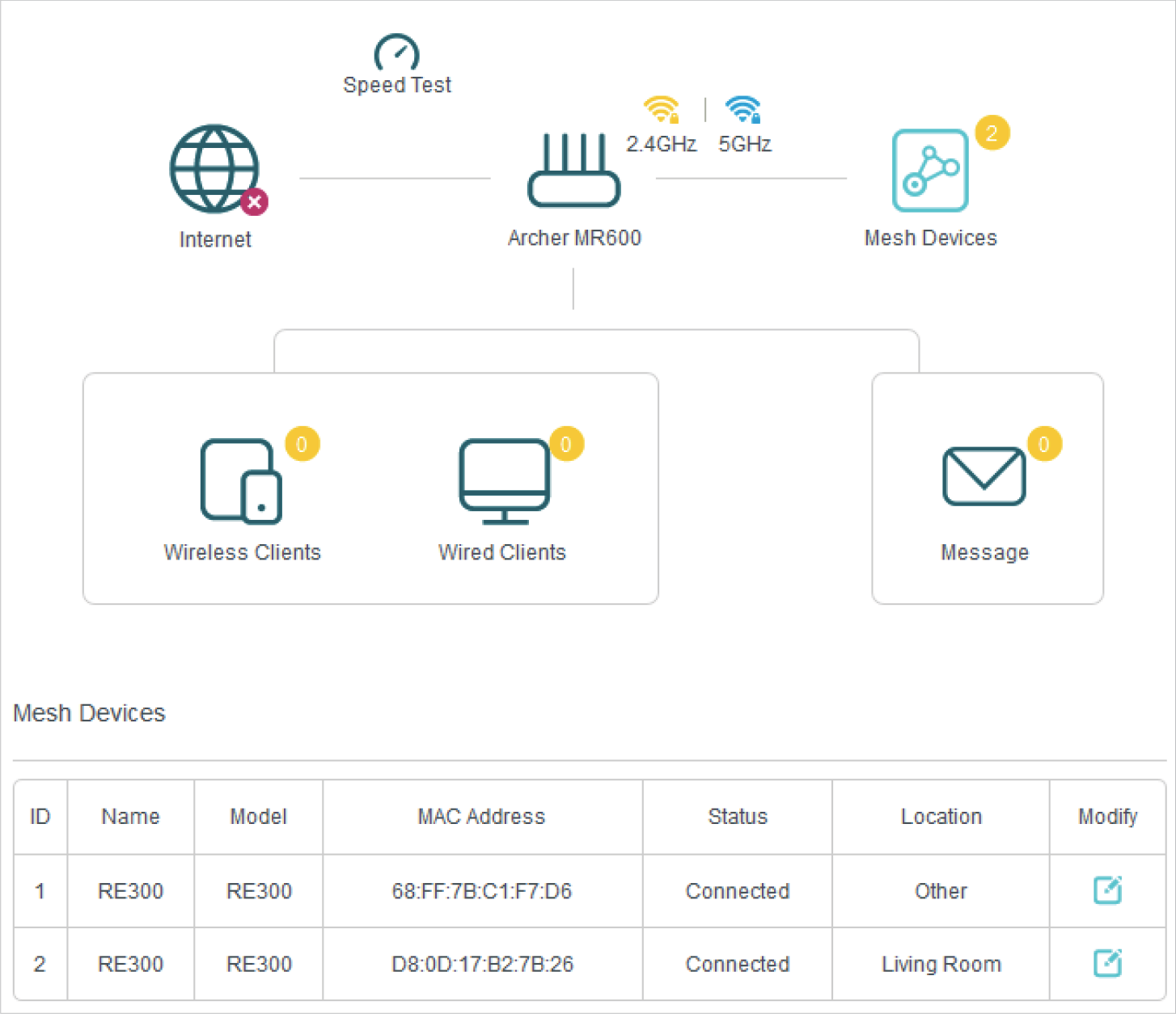

  2. Go to Basic > Network Map.

  3. Click the Mesh Devices, Wired Clients, or Wireless Clients icon to view the related device or client list.

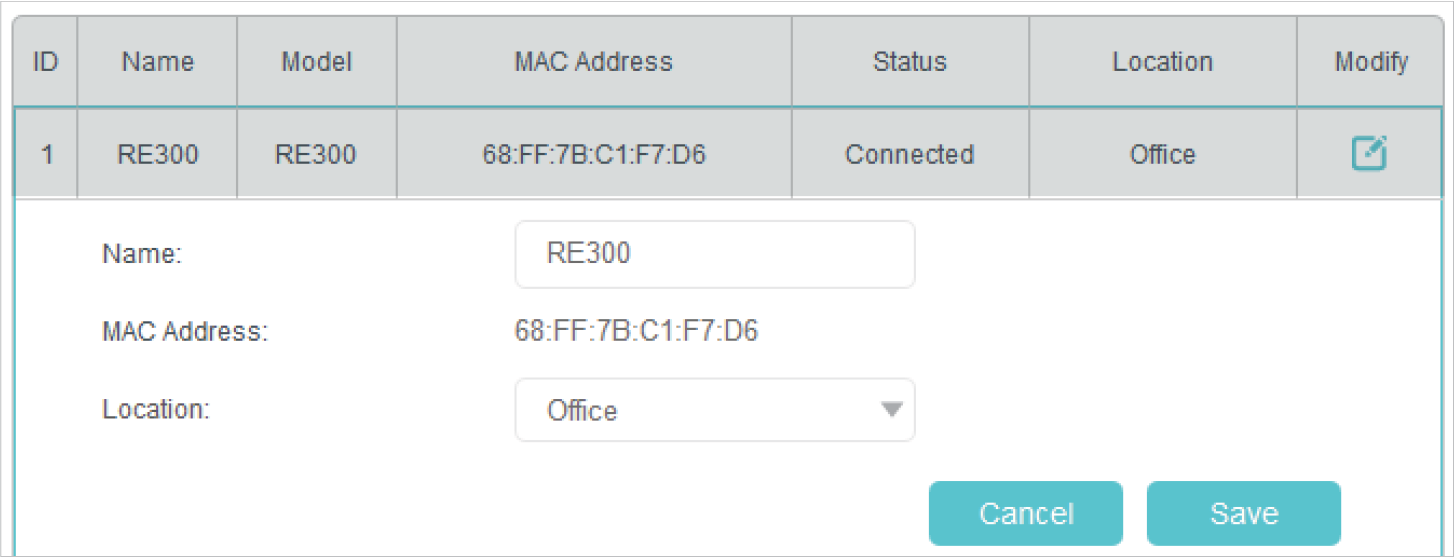

  4. Click Modify icon to customize the device‘s name and location.

To manage each OneMesh device in the network:

  1. Visit http://tplinkmodem.net, and log in with your TP-Link ID or the password you set for the router.

  2. Go to Basic > OneMesh or Advanced > OneMesh.

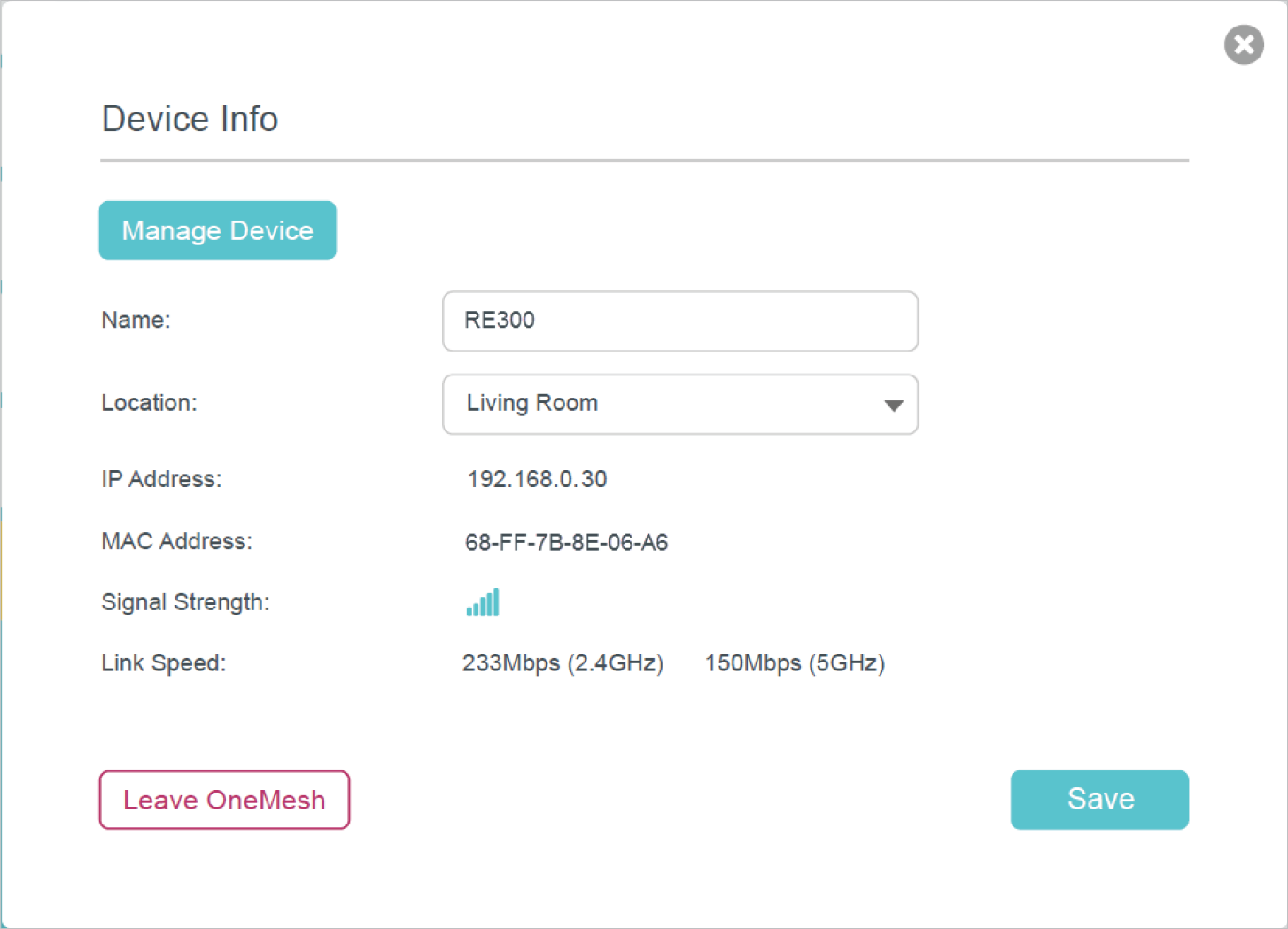

  3. Click a OneMesh device to view the device information, or click <number> Clients to view the clients connected to this device. On the Device Info page, you can:

    • Click Manage Device to redirect to the web management page of this OneMesh device.

    • Click Leave OneMesh to delete this device from the OneMesh network.
