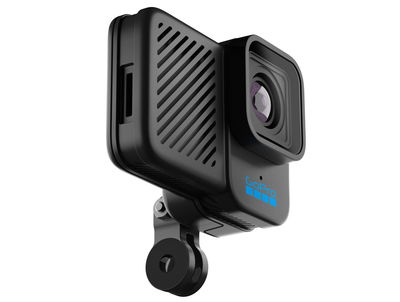

GoPro HERO10 Black Bones User Manual Tech Specs: Video
VIDEO RESOLUTION (RES)
Video resolution refers to the number of horizontal lines used in each frame of video. A 1080p video is made up of 1080 horizontal lines. A 5.3K video is made up of 5312 horizontal lines. Since more lines equals greater resolution, 5.3K will deliver a more detailed picture than 1080p.
Video Resolution | Description |
|---|---|
5.3K | Our highest resolution video. Captures breathtaking ultra HD video in the wide 16:9 aspect ratio. Can be used to grab 15.8MP stills from your video. |
5K 4:3 | Ultra high-resolution video that captures more of the screen with the taller 4:3 aspect ratio. Great for point-of-view footage and grabbing 19.6MP stills from your video. |
4K 4:3 | Ultra HD video with tall 4:3 aspect ratio captures more of the scene than 16:9 shots. Can be used to grab 12MP stills from your video. |
4K | Ultra HD video with 16:9 aspect ratio. Great for tripod and fixed-position shots. Can be used to grab 8MP stills from your video. |
2.7K 4:3 | Great for high-resolution point-of-view body and gear-mounted shots with fluid slo-mo playback. |
Video Resolution | Description |
|---|---|
2.7K | High resolution 16:9 video that provides stunning, cinema-quality results for professional productions. |
1080p | Standard HDTV resolution that’s great for all shots and sharing to social media. High 240 fps and 120 fps options enable super slo-mo during editing. |

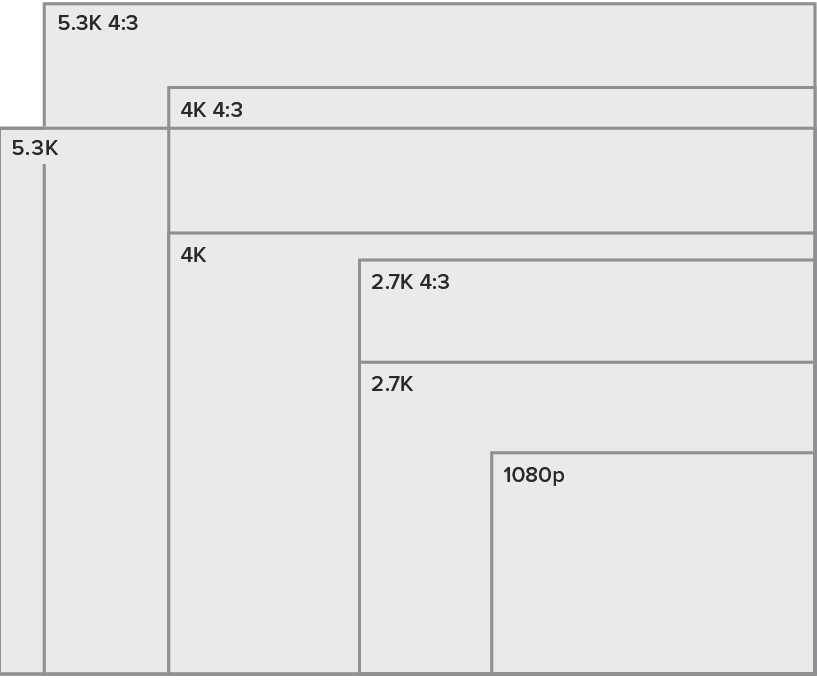

This chart compares the frame size of each resolution:
📘PRO TIP: Be sure that your phone, computer, or TV can support the setting you choose, especially if you’re using a high resolution and frame rate.
FRAMES PER SECOND (FPS)
Frames per second refers to the number of frames captured in each second of video. Higher fps values (60, 120, or 240) are better at capturing fast-action shots. You can also use high fps footage for slo-mo playback.
Resolution + FPS
Higher video resolutions capture more detail and clarity, but they’re generally available at lower fps values.
Lower video resolutions capture less detail and clarity, but they can be shot at higher fps values.
When choosing a resolution on the RES | FPS screen, all of the available frame rates for the resolution you selected are shown in white. Unavailable frame rates are in gray.
🚧High Resolutions/High Frame Rates
Shooting high-resolution or high-fps video when it’s warm out can cause your camera to heat up and use more power.
Lack of airflow and connecting to the GoPro Quik app can cause your camera to warm up even more, use even more power, and shorten recording time.
ASPECT RATIO
Aspect ratio refers to the width and height of an image. Your GoPro captures videos and photos in two aspect ratios.
4:3
The tall 4:3 format captures more of the scene than the 16:9 widescreen format. It’s great for selfies and point-of-view footage. The 4:3 resolutions are listed in the top row of the RES | FPS screen.
16:9
This is the standard format used for HDTV and editing programs. The widescreen format is ideal for capturing dramatic, cinematic footage. The 16:9 resolutions are listed below the 4:3 resolutions on the RES | FPS screen.
Heads Up: Black bars will appear on both sides of the screen when playing back 4:3 footage on an HDTV.
DIGITAL LENSES (VIDEO)
Digital lenses let you choose how much of the scene is captured by your camera. The different lenses also affect the zoom level and the fisheye effect in your shot.
Digital lens | Description |
|---|---|
SuperView (16mm) | Widest and tallest field of view, served up as 16:9 video. |
Wide (16–34mm) | Wide field of view that captures as much as possible within the frame. |
Linear (19–39mm) | Wide field of view without the fisheye effect of SuperView and Wide. |
Linear + Horizon Leveling (19–39mm) | Captures a wide field of view without the fisheye effect of SuperView and Wide. Keeps your footage smooth and level even if your camera tilts while recording. Heads Up: Your footage will tilt if your camera rotates beyond 23°-45° (depending on chosen settings) while recording. PRO TIP: Use Max Lens Mod (sold separately) to upgrade your GoPro with Horizon Lock. It keeps your shots level and steady even if your camera is mounted off-center or rotates a full 360° while recording. |
Digital lens | Description |
|---|---|
Narrow (27mm) | Narrow field of view without the fisheye effect of SuperView and Wide. |
Heads Up: Only the lenses that are compatible with the resolution and frame rate you selected will be available.
🚧PRO TIP: Use Max Lens Mod (sold separately) to boost your field of view with an ultra-wide 155° digital lens—the widest ever on a HERO camera.
VIDEO SETTINGS
Here’s a rundown of your camera’s video resolutions along with available fps, lenses, and aspect ratio for each.
Video Resolution (RES) | FPS (60Hz/ 50Hz)* | Digital Lenses | Screen Resolution | Aspect Ratio |
|---|---|---|---|---|
5.3K | 60/50 30/25 24/24 | SuperView, Wide, Linear, Linear + Horizon Leveling, Narrow | 5312x2988 | 16:9 |
5K 4:3 | 30/25 24/24 | Wide, Linear, Linear + Horizon Leveling, Narrow | 5120x3840 | 4:3 |
4K | 120/100 | Wide, Linear, Linear + Horizon Leveling, Narrow | 3840x2160 | 16:9 |
4K | 60/50 30/25 24/24 | SuperView, Wide, Linear, Linear + Horizon Leveling, Narrow | 3840x2160 | 16:9 |
4K 4:3 | 60/50 30/25 24/24 | Wide, Linear, Linear + Horizon Leveling, Narrow | 4000x3000 | 4:3 |
*60Hz (NTSC) and 50Hz (PAL) refer to the video format, which depends on your region. To learn more, see Anti-Flicker .
Video Resolution (RES) | FPS (60Hz/ 50Hz)* | Digital Lenses | Screen Resolution | Aspect Ratio |
|---|---|---|---|---|
2.7K | 240/200 | Wide, Linear, Linear + Horizon Leveling, Narrow | 2704x1520 | 16:9 |
2.7K | 120/100 60/50 | SuperView, Wide, Linear, Linear + Horizon Leveling, Narrow | 2704x1520 | 16:9 |
2.7K 4:3 | 120/100 60/50 | Wide, Linear, Linear + Horizon Leveling, Narrow | 2704x2028 | 4:3 |
1080p | 240/200 | Wide, Linear, Linear + Horizon Leveling, Narrow | 1920x1080 | 16:9 |
1080p | 120/100 60/50 30/25 24/24 | SuperView, Wide, Linear, Linear + Horizon Leveling, Narrow | 1920x1080 | 16:9 |
*60Hz (NTSC) and 50Hz (PAL) refer to the video format, which depends on your region. To learn more, see Anti-Flicker .
VIDEO SETTINGS USING QR CODES
QR codes are an easy and convenient way to control your camera. You can switch between your favorite modes and always ensure that your camera is locked into the settings you want simply by using your camera’s lens to scan a QR code before takeoff.
QR Commands for Popular FPV Settings
Popular FPV settings | QR string Command |
|---|---|
5.3K, wide lens, 60 fps | mVr5p60fW |
5.3K, wide lens, 50 fps | mVr5p50fW |
5.3K 4:3, wide lens, 30 fps | mVr5Tp30fW |
5.3K 4:3, wide lens, 25 fps | mVr5Tp25fW |
5.3K 4:3, wide lens, 24 fps | mVr5Tp24fW |
4K, wide lens, 120 fps | mVr4p120fW |
4K, wide lens, 100 fps | mVr4p100fW |
4K 4:3, wide lens, 60 fps | mVr4Tp60fW |
4K 4:3, wide lens, 50 fps | mVr4Tp50fW |
Popular Controls | QR string Command |
|---|---|
Hypersmooth Off | e0 |
Hypersmooth Standard | e1 |
Hypersmooth High | e2 |
Hypersmooth Boost | e3 |
Video Bit Rate Low | b0 |
Video Bit Rate High | b1 |
Color Flat | cF |
Color Natural | cN |
Color Vibrant | cG |
Sharpness Low | sL |
Sharpness Medium | sM |
Sharpness High | sH |
For more information, including other recommended QR codes for FPV and how to create your own codes, see gopro.com/bones.
HYPERSMOOTH VIDEO STABILIZATION
HyperSmooth delivers ultra smooth footage by correcting for camera shake. It crops your videos while recording, which lets it buffer the footage. This makes it perfect for biking, skating, skiing, handheld shots, and more. Your GoPro has four HyperSmooth settings:
Setting | Description |
|---|---|
Boost | Maximum video stabilization with tight cropping. |
High | Maximum video stabilization. |
Standard | Slightly reduced video stabilization for increased battery life. |
Off | Records without video stabilization or cropping. |
You can smooth out your footage even more by using Touch Zoom to crop your shots before you start recording. This will give your camera an even bigger buffer to use when stabilizing your video. Using the Linear + Horizon Leveling lens will also enhance stabilization.
📘PRO TIP: Use Max Lens Mod (sold separately) to max out your GoPro with the ultimate in unbreakable video stabilization up to 2.7K.
