GoPro HERO10 Black Bones User Manual How to Control Your GoPro

Your camera gives you two ways to adjust modes and settings.

QR CODES

All modes and settings can be changed in a flash using QR codes. You can pull from a library of codes that's been set up to handle basic camera functions and commonly used settings or create custom codes to set up your camera exactly as you need for specialized shots.

1. With your camera on, scan the QR code sized at 1.5" x 1.5".

2. Your camera's status light will blink twice to confirm that the code has been scanned and that all modes and settings have been adjusted.

To learn more, access QR codes and create your own, go to gopro.com/bones.

📘

PRO TIP: QR codes are especially useful when Wi-Fi is unavailable or when it's inconvenient to pair your camera to the GoPro Quik app.

THE GOPRO QUIK APP

Pair your camera to the GoPro Quik app for easy access to presets and to adjust the most frequently used modes and settings. The app also lets you preview your shot, frame it perfectly, and see all of the footage stored on your camera's SD card.

Heads Up: Your camera must be within 1 meter of your phone to pair with the app.

📘

PRO TIP: Use the GoPro Quik app to automatically transform your footage into awesome video stories synced with effects and music.

To learn more, see Creating Video Stories.

LED STATUS

The LED on the back of your camera will confirm your commands.

BETAFLIGHT

You can use BetaFlight to set up shutter control for your camera. Connect your flight controller to the BetaFlight configurator. From the command line interface (CLI) execute these commands:

resource <free_pad_name> <optional number> NONE
resource PINIO 1 <your_pad_id>
set pinio_config = 129,1,1,1
set pinio_box = 40,255,255,255
save

Replace "free_pad_name" and "your_pad_id" with an available resource on your flight controller. If PINIO 1 is not available, you will need to adjust the command for your drone. Be sure to save your flight controller configuration before making any changes.

CAPTURE MODES

Your camera has four capture modes.

Video

Includes Standard, Activity, and Cinematic presets. Recording Video To learn more, see .


Includes Photo, LiveBurst, Burst, and Night presets. Taking Photos To learn more, see .

Time lapse

Includes TimeWarp, Time Lapse, and Night Lapse presets. To learn more, see Capturing Time Lapse.

live streaming

Set up and start a live stream using the GoPro Quik app. To learn more, see Live Streaming.

PRO TIP: You can choose which preset will be loaded and ready to go when you turn on your GoPro. This can be done with a QR code or the GoPro Quik app. /war

1. From the app screen, tap .

2. Tap Default Preset to choose a preset.

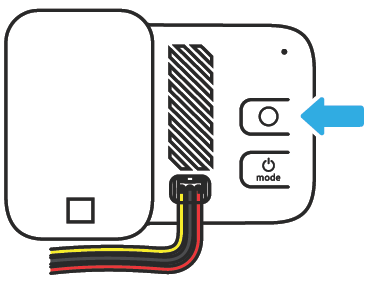

GETTING THE SHOT

1. Simply press the Shutter button to start recording.



2. Press the Shutter button again to stop recording (Video, Time Lapse, and Live Streaming only).

CHANGING PRESETS

Each capture mode has presets that make it easy to switch back and forth between the best mode and settings for your shot. This can be done with a QR code or the GoPro Quik app.

1. Tap on the app screen.

2. Tap the preset that you want. All of the preset’s settings will be locked into your camera and ready to go.

CUSTOMIZING THE PRESETS

You can change the settings in your presets with just a few taps. This can be done with a QR code or the GoPro Quik app.

• Using the app, tap next to the preset you want to adjust.

• Tap the setting that you want to change. For details on settings, see Tech Specs.
