Blackmagic Studio Camera User Manual Rack Mounting

Blackmagic Universal Rack Shelf is a 1 rack unit shelf that lets you install Blackmagic Studio Converter into a broadcast rack or road case.

Blackmagic Studio Converter is small, so you can install it next to other Blackmagic Design equipment that share a similar form factor, such as HyperDeck Studio HD Plus and Cloud Store Mini 8TB. For example, installing a Blackmagic HyperDeck Studio HD Mini together with ATEM 1 M/E Constellation HD gives you the ability to switch ten video inputs and record the program output on your HyperDeck Studio HD Mini. This modular design lets you build your own custom video solutions that are portable and easy to use.

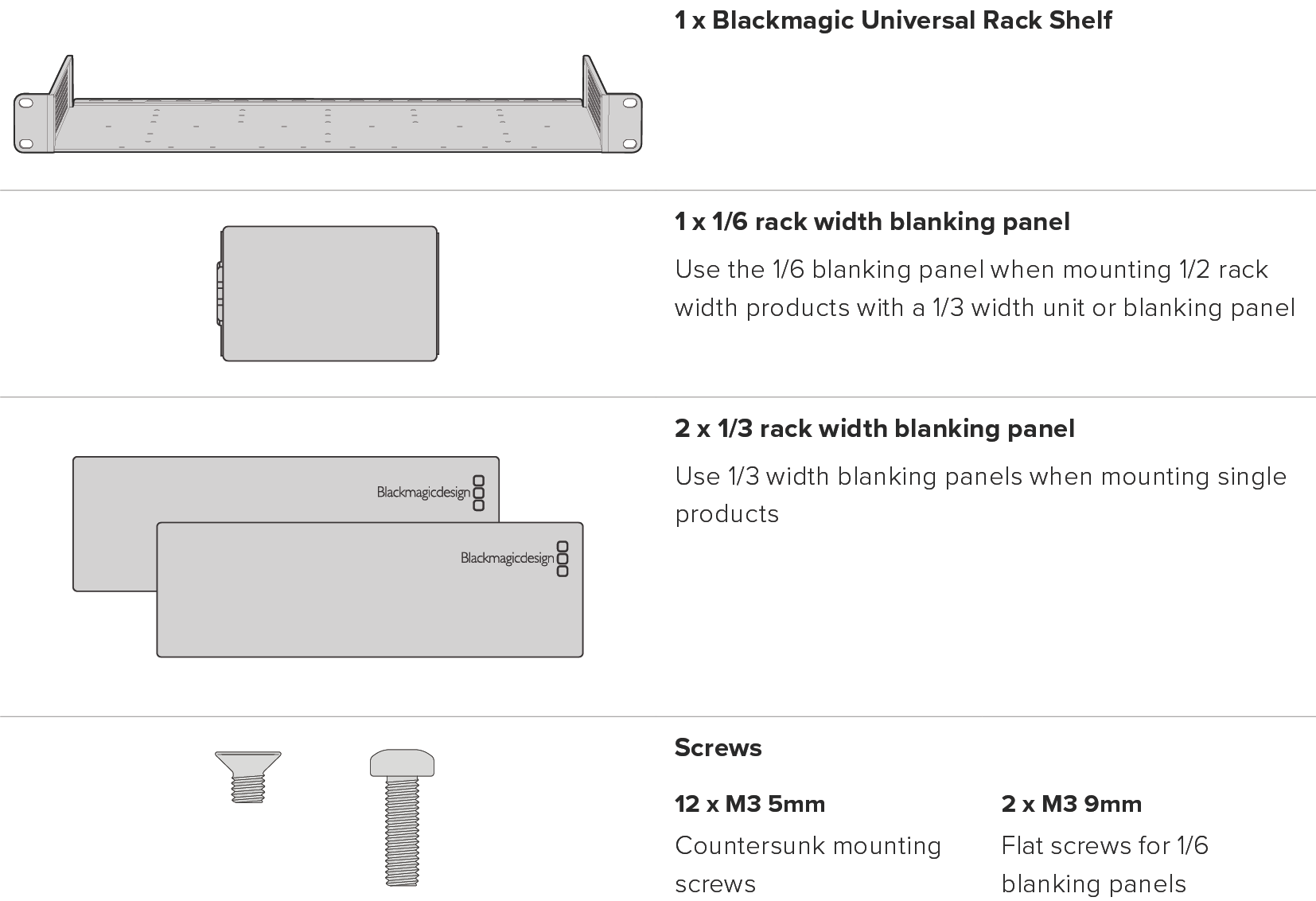

The Teranex Mini Rack Shelf Kit contains the following:

Mounting Blackmagic Studio Converter to the Blackmagic Universal Rack Shelf

1. The first step to mount any product to the Blackmagic Universal Rack Shelf is to remove the rubber feet from your device.

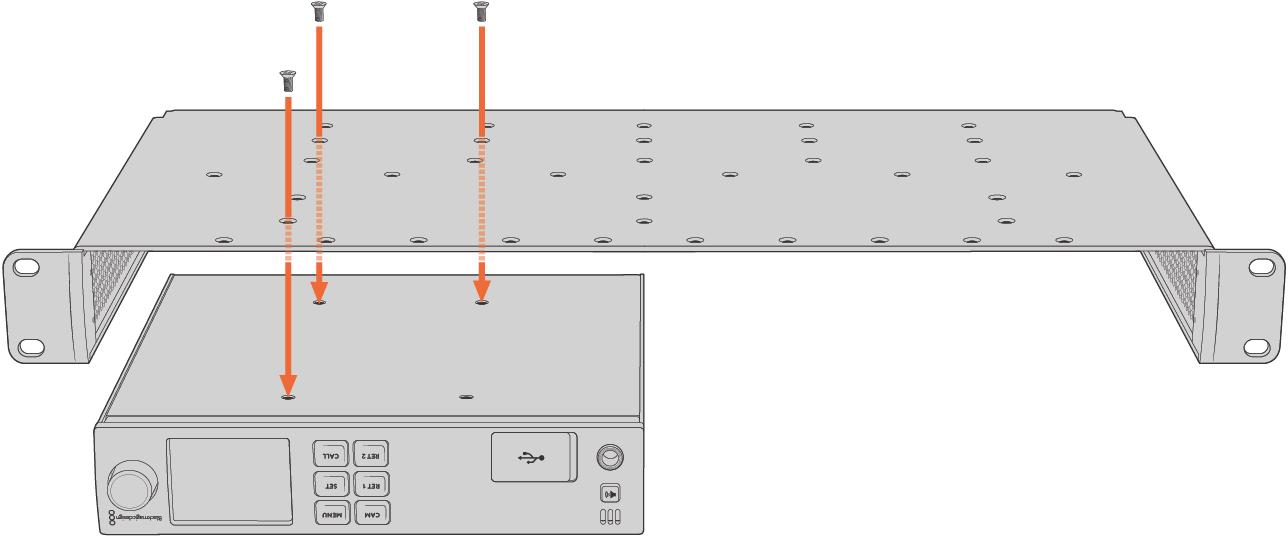

2. With both the rack and device upside down, line up the pre drilled holes on the rack with the threaded mounting holes on the device. This will be via two central mounting points on 1/3 width products or up to three mounting points on larger products such as Blackmagic Studio Converter. The location of the mounting points will depend on whether you are installing the unit on the left or right of the rack.

3. Using the supplied M3 5mm countersunk screws, mount the device to the rack.

4. Once you’ve installed your Blackmagic Studio Converter or other Blackmagic Design product, turn the rack shelf right side up and install into your equipment rack.

Blanking panels can be used to fill spaces in your rack that may be left available, such as when mounting a Blackmagic Studio Converter with a Blackmagic Web Presenter.

Attaching the 1/6 blanking panel

The 1/6 blanking panel is designed to be attached to 1/2 rack width products, such as Blackmagic Studio Converter when they are mounted solo, or with a 1/3 rack width product such as a Blackmagic Web Presenter. Mount the panel to the side of the device towards the centre of the rack to allow for airflow between units.

Remove the 5mm M3 screw near the front of the device.

Line up the blanking panel and attach using the supplied M3 10mm nylon screw.

Attaching the side 1/3 width blanking panel

To install the 1/3 width blanking panel, line up the screw holes and anchor point with the shelf. The 1/3 width blanking panel can be used on either side or the center of the rack. Screw the panel to the shelf using two of the supplied M3 5mm countersunk screws.

Blackmagic Universal Rack Shelf is designed for deeper products, such as Blackmagic Studio Converter, but can also be used with Teranex Mini converters and HyperDeck Studio products that aren’t as deep.
