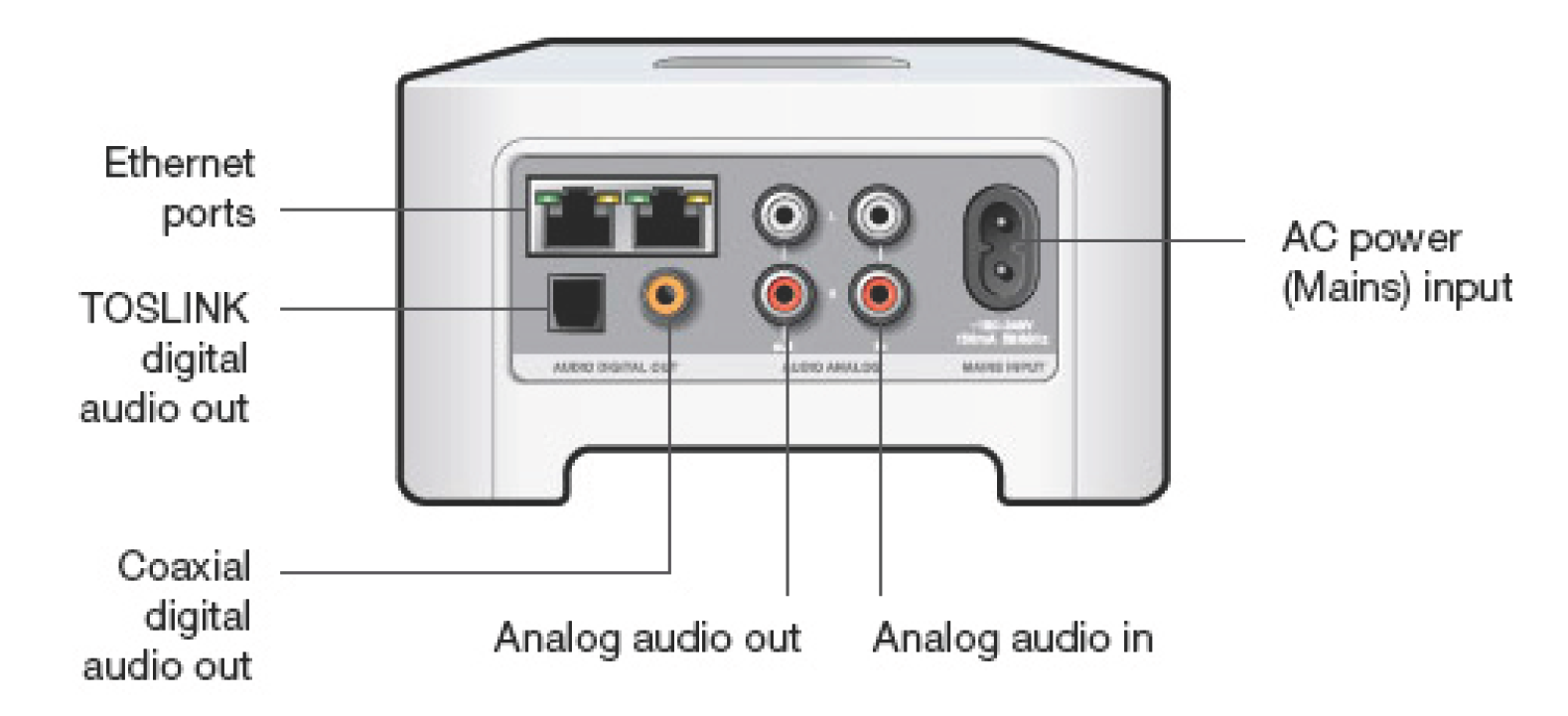

Sonos CONNECT User Manual CONNECT back
![Sonos CONNECT](https://usermanual-prod.b-cdn.net/images/76b43209-b10c-45a2-8797-c52413d39d76.jpg?token=TOKn3TA-zo4Yen31S0C56sFd0UmcrLvWSs9Za6XtdCc&width=400&expires=33257999052)
![](https://usermanual-prod.b-cdn.net/bcdn_token=8a0BSP1avv2ejPUXIcGcBSr7420HA-aV4iwW2bAYL3E&token_path=%2Fdocuments%2Fcbaf70dc-8b6f-481b-bae9-073c270cb067%2Fextract%2Ffigures%2F&expires=33257999052/documents/cbaf70dc-8b6f-481b-bae9-073c270cb067/extract/figures/fileoutpart5.png)
Ethernet ports (2) | You can use an Ethernet cable (supplied) to connect to a router, computer, or additional network device such as a network-attached storage (NAS) device. LED indicators:
|
---|---|
AC power (mains) input (100 - 240 VAC, 50/60 Hz) | Use only the supplied power cord to connect to a power outlet (using a third party power cord will void your warranty). |
Analog audio in | Use a standard RCA audio cable (supplied) to connect the audio outputs from a separate audio component such as a CD player, to the Sonos CONNECT’s analog audio inputs. |
Analog audio out | Use a standard RCA audio cable (supplied) to connect the Sonos product’s analog audio outputs to the audio inputs on a separate audio component, such as an amplifier or your home theater receiver. |
TOSLINK® digital audio out | You can use a TOSLINK optical audio cable to connect the Sonos CONNECT’s TOSLINK digital audio output to the audio inputs on a separate audio component, such as an amplifier or your home theater receiver. |
Coaxial digital audio out | You can use a digital coaxial cable to connect the Sonos product’s coaxial digital audio output to the audio inputs on a separate audio component, such as an amplifier or your home theater receiver. |
