GoPro Fusion User Manual MOUNTING

GoPro Fusion

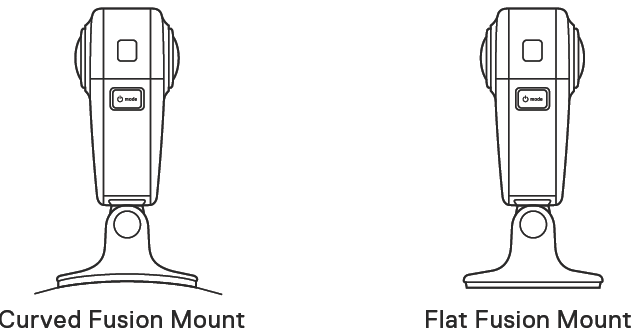

ATTACHING YOUR CAMERA TO FUSION MOUNTS

The Fusion Mounts make it easy to attach the camera to curved and flat surfaces of bikes, vehicles, and gear. Fusion is waterproof to 16ft (5m) with the doors closed—no additional housing is needed when using the camera in or around water.

  1. Adhere the Fusion Mount to a dry, clean, smooth surface. Be sure to follow the Mounting Guidelines.

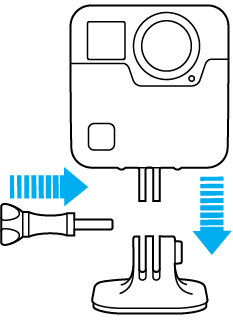

  2. Use the thumb screw to attach the mounting fingers on Fusion to the mount.

MOUNTING GUIDELINES

Follow these guidelines when attaching adhesive mounts:

  • Attach the adhesive mounts at least 24 hours before use.

  • Adhesive mounts must be mounted only on smooth surfaces. Porous or textured surfaces do not enable a proper bond. When applying the mount, firmly press it into place and ensure full contact over the entire surface.

  • Apply adhesive mounts only to clean, dry surfaces. Wax, oil, dirt or other debris reduce adhesion, which can result in a weak bond and risk of losing the camera should the connection fail.

  • Attach adhesive mounts in room temperature conditions. Adhesives do not bond properly if applied in cold or damp environments to cold or damp surfaces.

  • Check state and local regulations and laws to ensure that attaching a camera to equipment (such as hunting equipment) is permitted. Always comply with regulations that restrict the use of consumer electronics or cameras.

  • During water activities, use a camera tether (sold separately) for added security to keep your camera afloat.

🚧

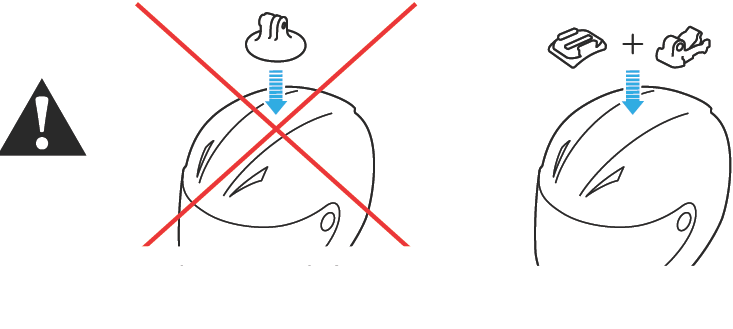

WARNING: The Curved Fusion Mount is not recommended for helmet mounting. To mount Fusion on a helmet, use the Curved Adhesive Mount and Mounting Buckle. These items are available in the Grab Bag, sold separately at gopro.com.

To avoid injury, do not use a tether when mounting the camera on a helmet. Do not mount the camera directly on skis or snowboards.

For more information about mounts, visit gopro.com.

🚧

WARNING: If using your camera with a GoPro mount or strap intended for use with a helmet, always select a helmet that meets the applicable safety standard.

Choose the right helmet for your particular sport or activity and make sure that it is the right fit and size for you. Inspect your helmet to ensure that it is in good condition, and follow the helmet manufacturer’s instructions on safe helmet use.

Any helmet that has sustained a major impact should be replaced. No helmet can protect against injury in every accident.

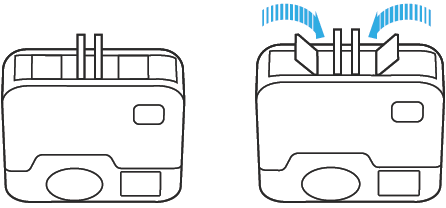

REMOVING THE MOUNTING FINGERS

Removing the mounting fingers lets you rest Fusion on the bottom of the camera.

  1. Flip up the tabs on the mounting fingers.

  2. Slide the mounting fingers out of the camera.

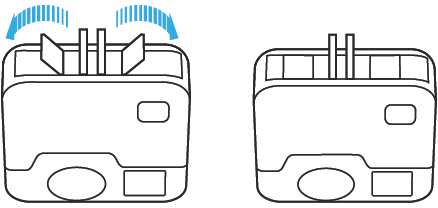

RE-ATTACHING THE MOUNTING FINGERS

The mounting fingers let you attach Fusion to GoPro mounts.

  1. Slide the mounting fingers into the camera.

  2. Press the tabs into place.
