Blackmagic ATEM Microphone Converter User Manual Mounting ATEM Microphone Converter

Using the included mount plate you can fasten your ATEM Microphone Converter to a lectern, desk, wall or other flat surface to keep it secure while still accessible to connect microphones.

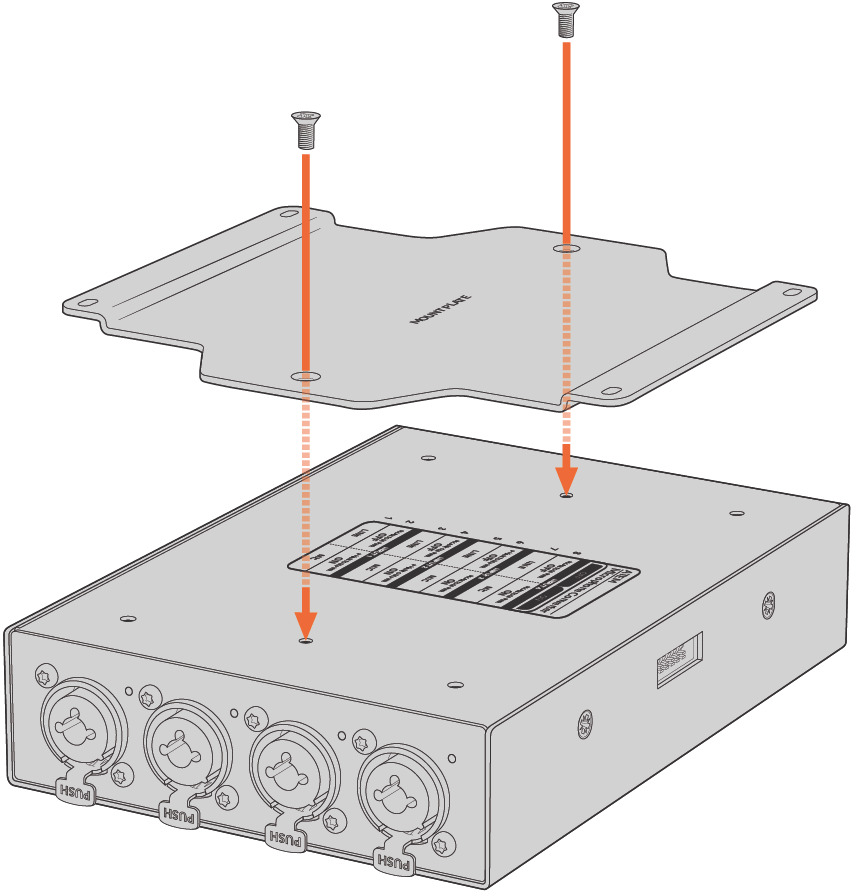

1. With the ATEM Microphone Converter upside down, line up the pre drilled holes on the mounting plate with the mounting points on the converter. There is enough clearance for the rubber feet to remain attached but you can remove with a plastic edged scraping tool.

2. Using the supplied M3 5mm countersunk screws fasten the mounting plate to the converter.

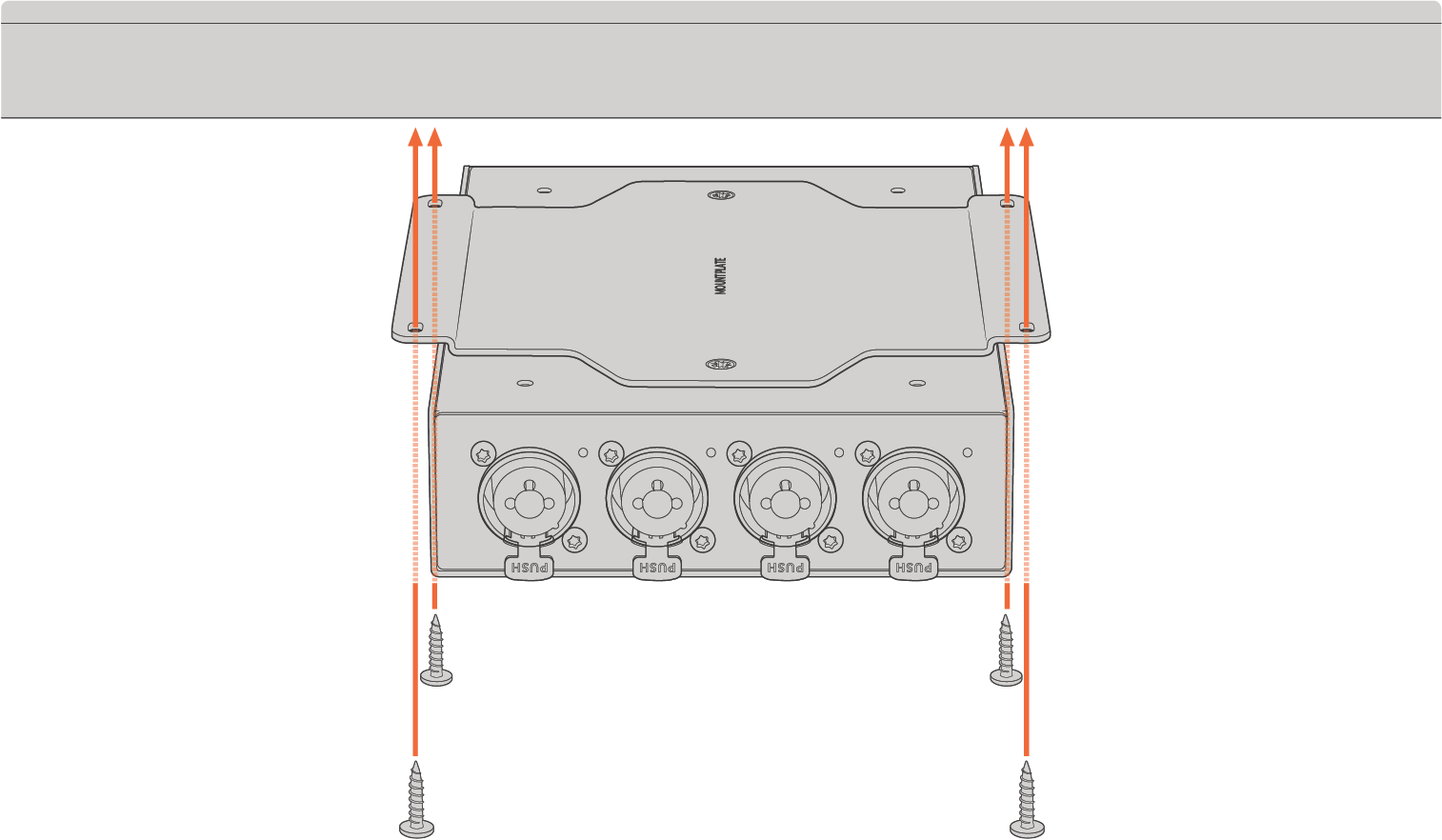

3. Once the mounting plate is attached, you can now attach the converter using the 4 pre drilled holes on the mounting plate to a lectern, desk, wall or other flat surface using self tapping screws.



📘

NOTE Only use the supplied M3 5mm countersunk screws to attach the mount plate to the converter.
