Synology Wi-Fi Router MR2200ac User Manual Getting Started

Before You Start

Thank you for purchasing this Synology product! Before setting up your new Synology Wi-Fi Router, please check the package contents to verify that you have received all of the items below. Also, make sure to read the safety instructions carefully to avoid harming yourself or damaging your Synology Wi-Fi Router.

📘

Note: All images below are for illustrative purposes only, and may differ from the actual product.

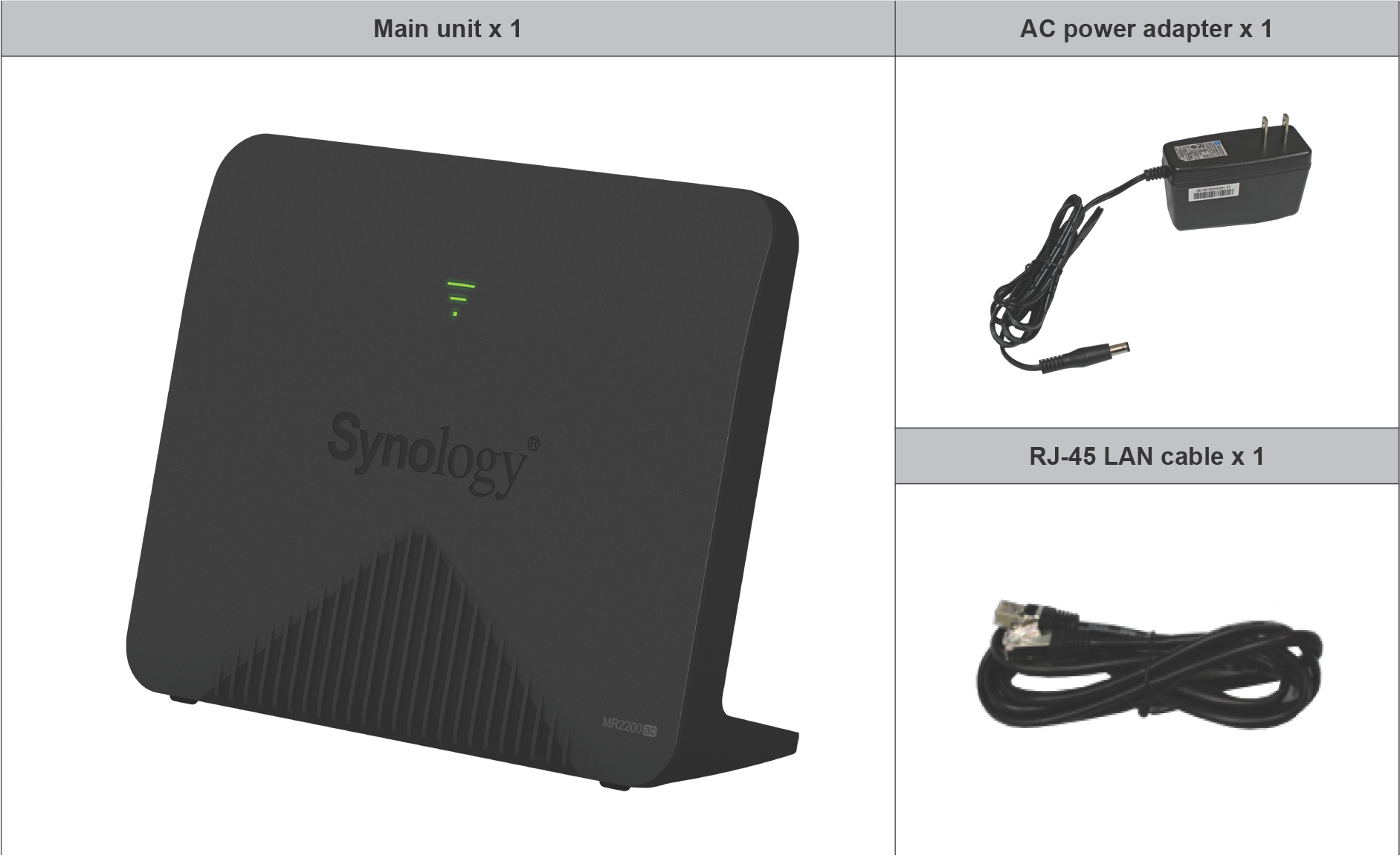

Package Contents

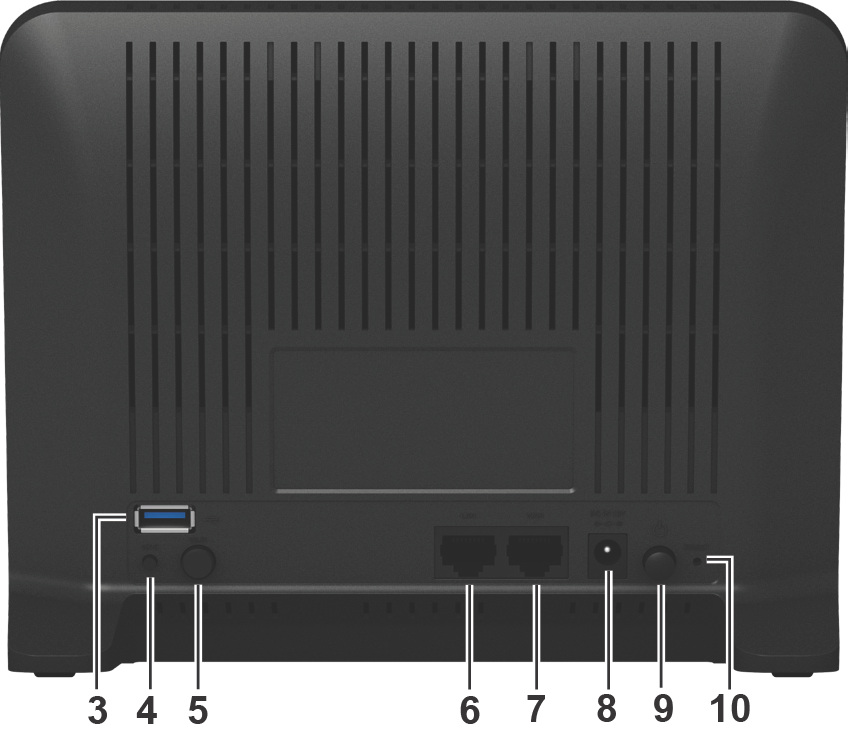

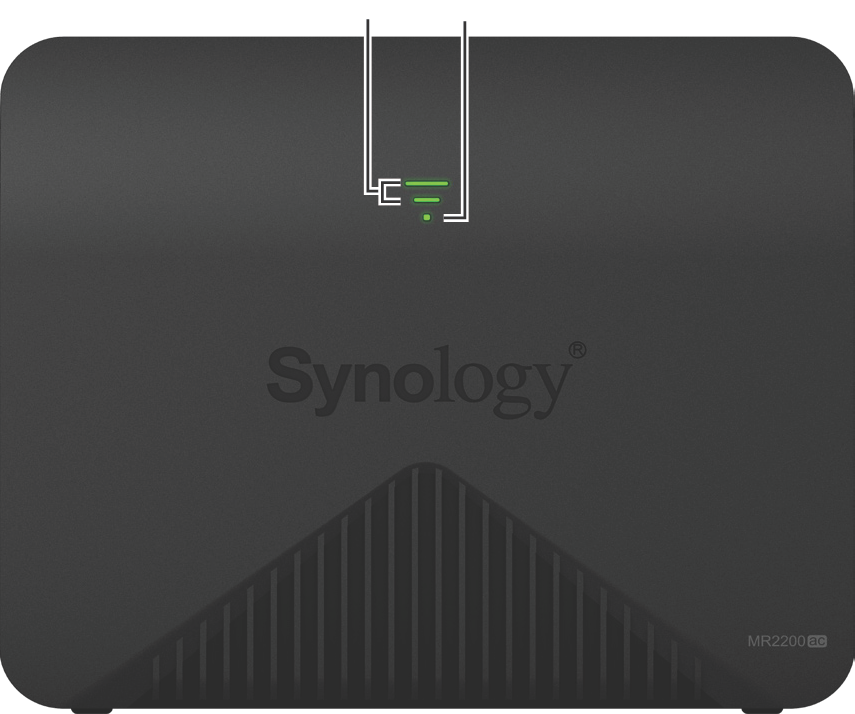

Synology Wi-Fi Router at a Glance

📘

Note: For LED indicator information, please refer to "Appendix B: LED Indicator Table".

Safety Instructions

	Keep away from direct sunlight and away from chemicals. Make sure the environment does not experience abrupt changes in temperature or humidity.
	Place the product right side up at all times.
	Do not place near any liquids.
	Before cleaning, unplug the power cord. Wipe with damp paper towels. Do not use chemical or aerosol cleaners.
	To prevent the unit from falling over, do not place on carts or any unstable surfaces.
	The power cord must plug in to the correct supply voltage. Make sure that the supplied AC voltage is correct and stable.
	To remove all electrical current from the device, ensure that all power cords are disconnected from the power source.
	Risk of explosion if battery is replaced with an incorrect type. Dispose of used batteries appropriately.

Set up Your Synology Wi-Fi Router

Position Your Synology Wi-Fi Router

For optimal performance, it is recommended to position your MR2200ac as advised below.

• On a stable surface (e.g. an elevated shelf) away from any possible physical interruptions.

• Close to the center of the area where the wired/wireless client devices are placed, and within a visible distance from the wireless devices.

• In a position where few walls and ceilings are between your MR2200ac and its client devices.

• Away from any potential electrical signal sources, such as other wireless routers, 3G/LTE bases, and microwave ovens.

• Away from large expanses of metal or other materials, such as metal doors, glass panels, and concrete.

Set up MR2200ac as Primary Wi-Fi Point

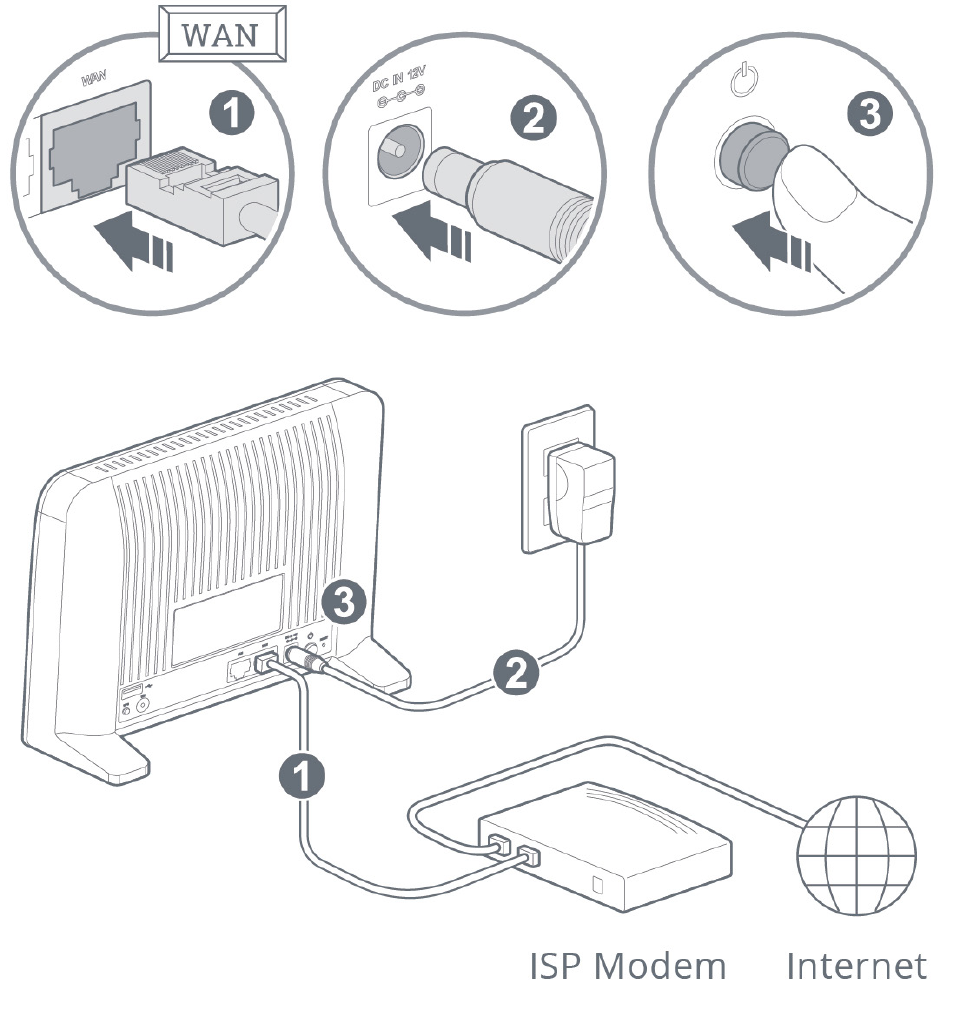

1. Use the included network cable to connect your MR2200ac (at the WAN port) to the ISP modem.

2. Connect one end of the power adapter to the power port on your MR2200ac, and the other end to the power outlet. Press the power button to power on your MR2200ac. Wait for around two minutes until the STATUS LED indicator starts blinking blue.

3. Connect wireless client devices to your MR2200ac:

   • When the Wi-Fi Signal LED indicator turns blinking blue, MR2200ac is ready to connect to other devices.

   • Use your wireless device to scan and join the Wi-Fi network created by your MR2200ac.




📘

Note:

Below are the default credentials for the Wi-Fi network:

1. Wi-Fi SSID: Synology_serial number

2. Password: synology

The default credentials can be changed during the initial SRM setup.

Set up MR2200ac as Additional Wi-Fi Point

1. Connect one end of the power adapter to the power port on your MR2200ac, and the other end to the power outlet. Press the power button to power on your MR2200ac. Wait for around two minutes until the STATUS LED indicator starts blinking blue.

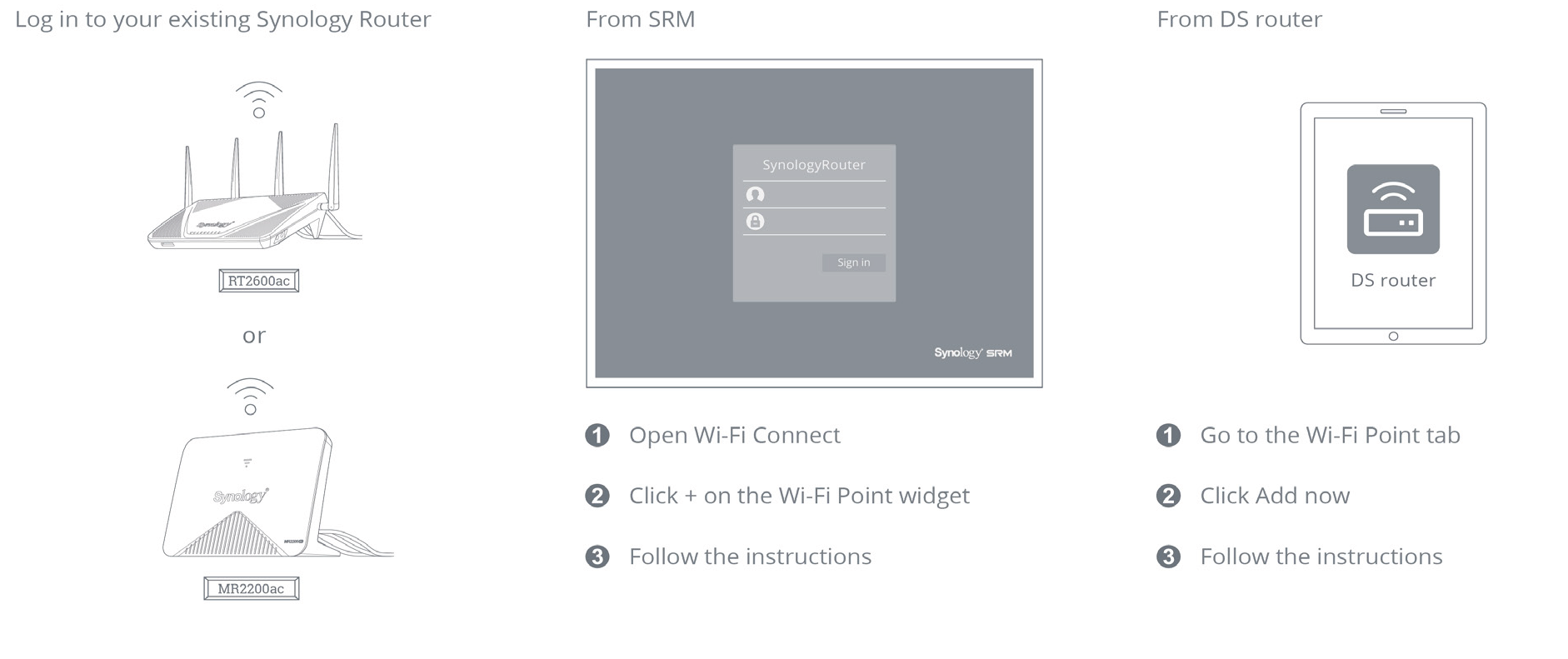

2. Log in to Synology Router Manager (SRM) on the primary Wi-Fi point, and go to Wi-Fi Connect > Wi-Fi Point to add your MR2200ac to the Wi-Fi system.



📘

Note: When setting up MR2200ac as Additional Wi-Fi Point, make sure your primary Wi-Fi point (either RT2600ac or MR2200ac) is running SRM 1.2 or above.

Set up SRM

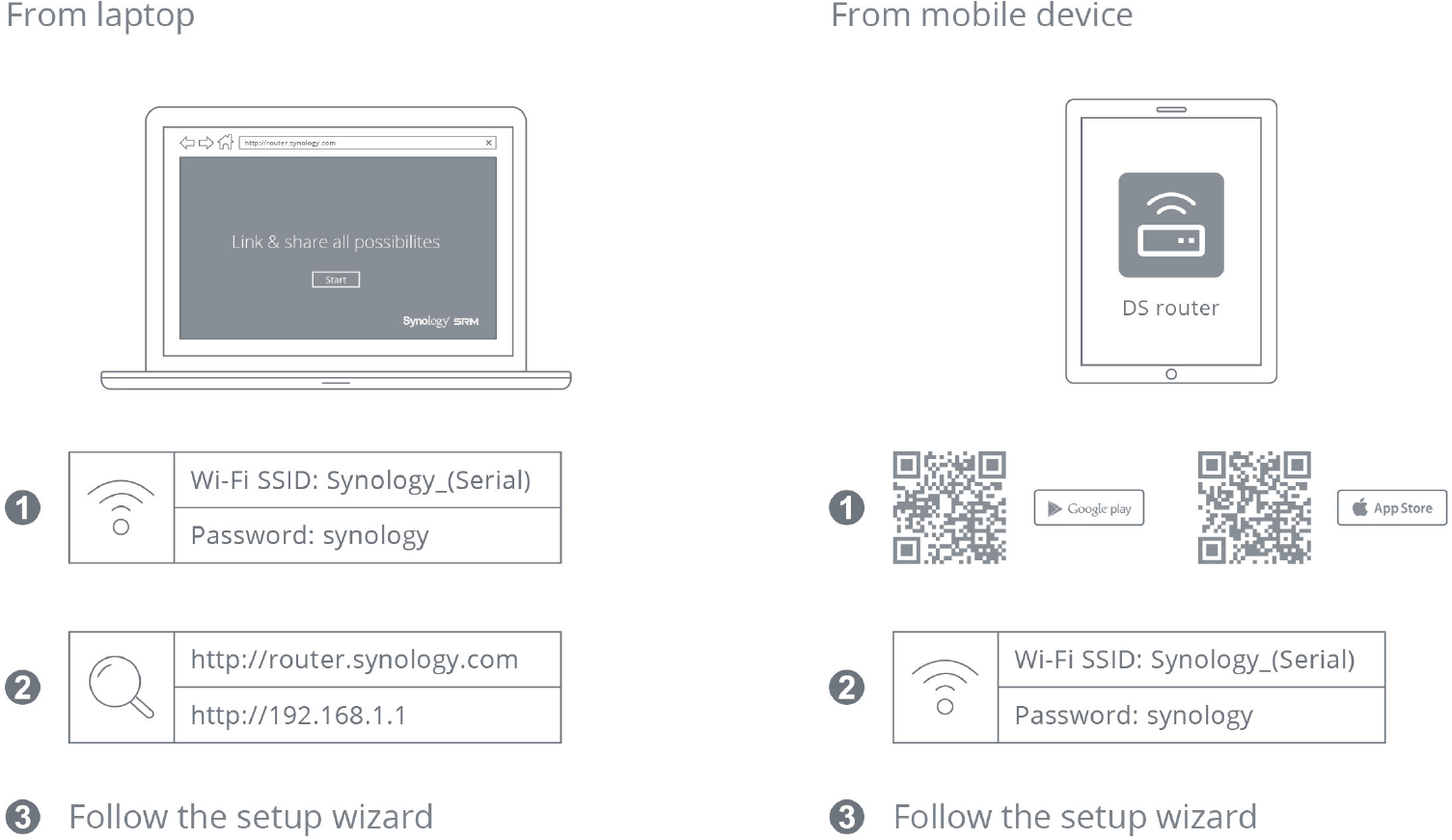

1. Use a computer or wireless device connected to the MR2200ac's local network. If you use a wireless device, scan and join the Wi-Fi network (SSID: Synology_serial number; Password: synology).

2. Open a web browser, and enter either URL into the address bar

   a http://router.synology.com
   b http://192.168.1.1:8000

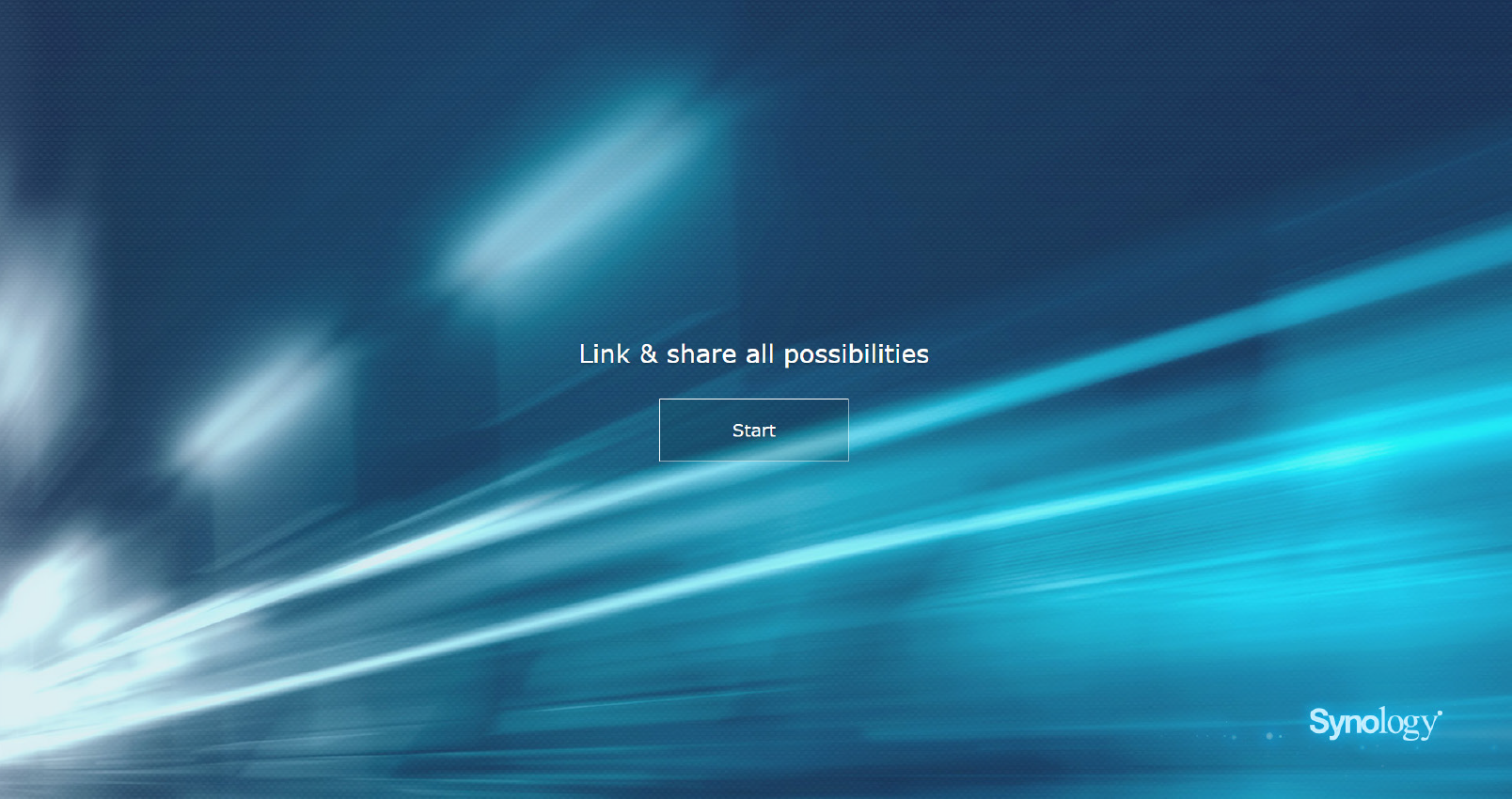

3. Once connected, click Start to launch the SRM Setup Wizard.

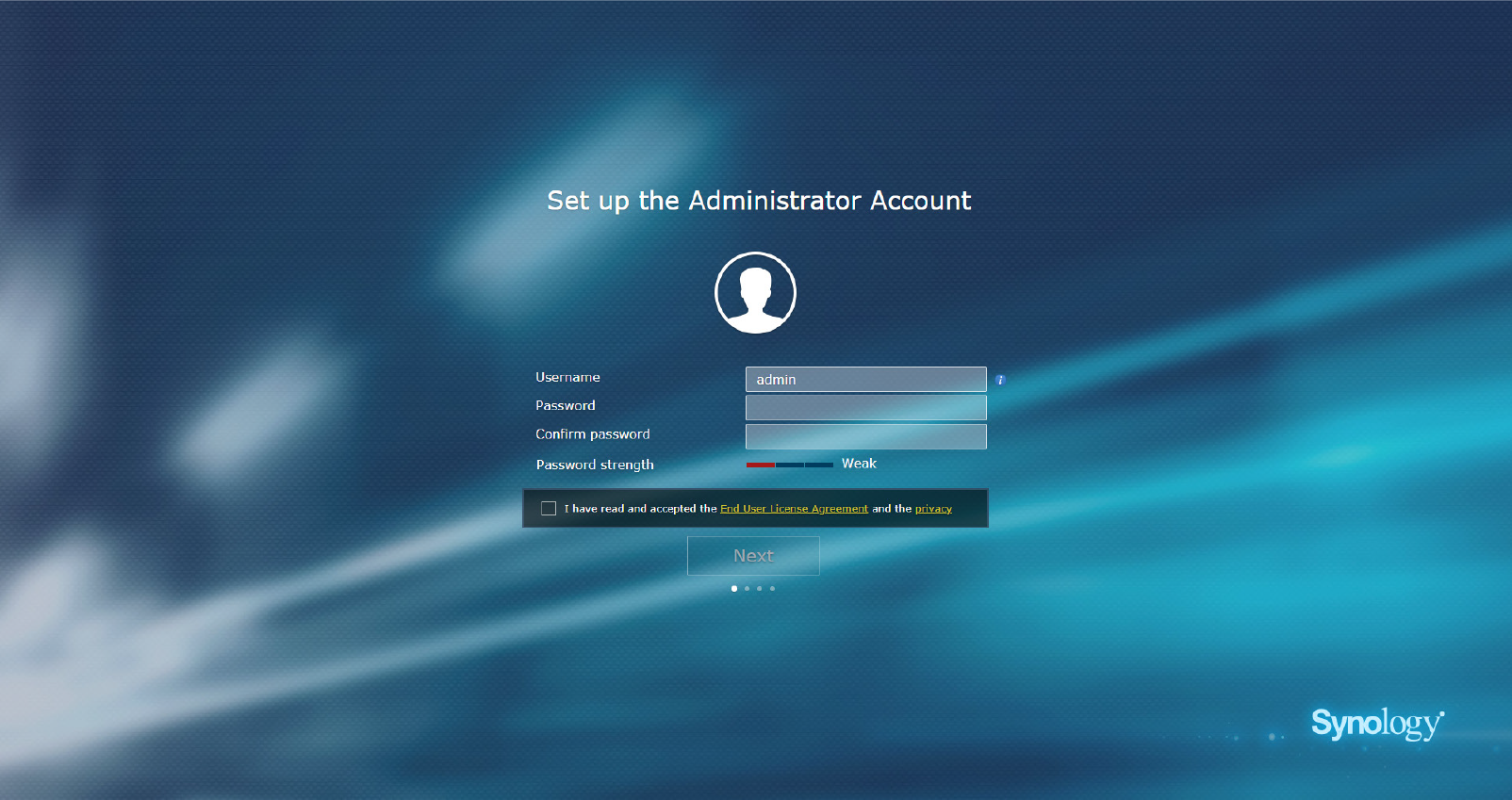

4. Fill in the information to set up the administrator account. Click Next to continue.

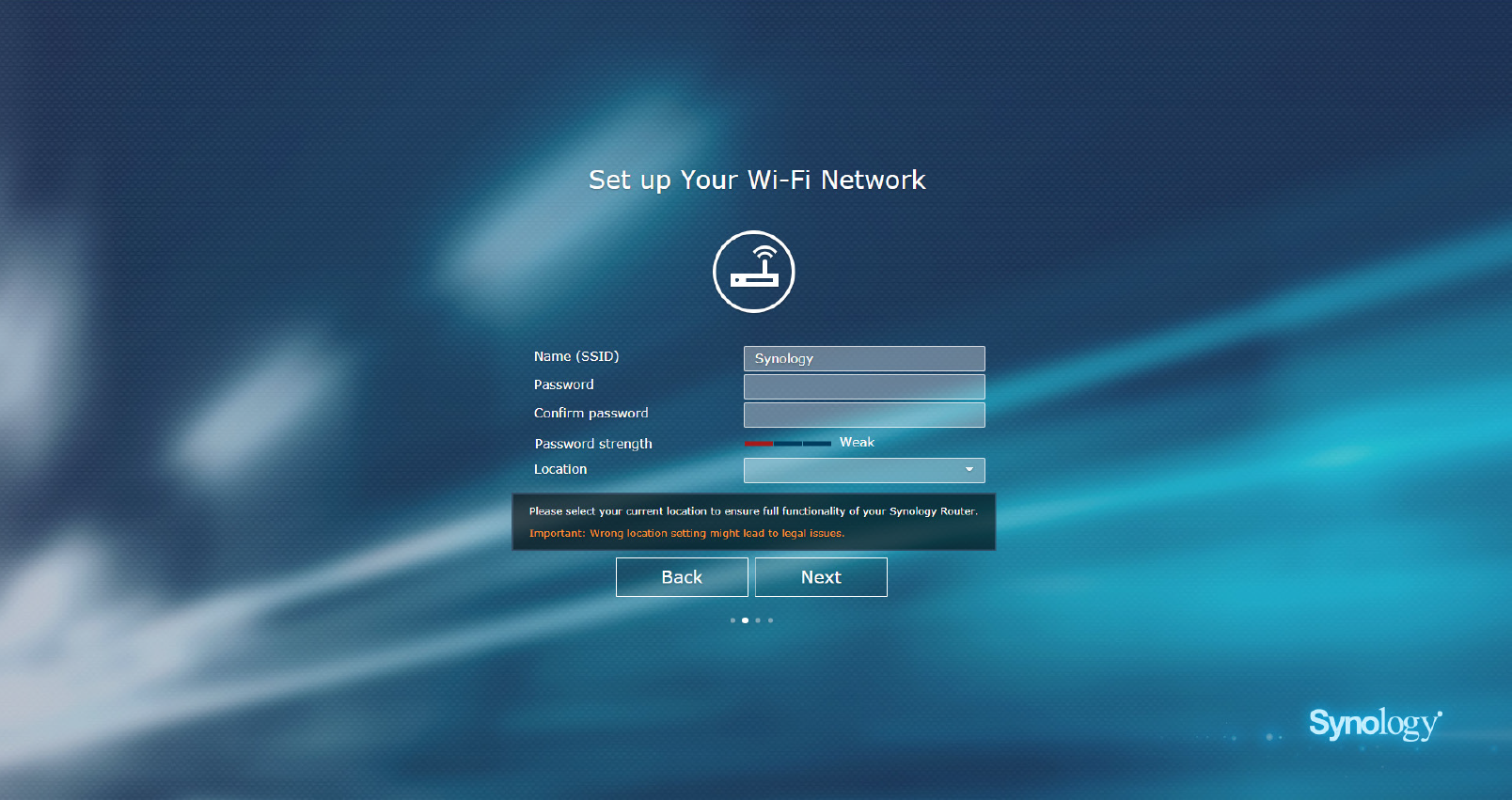

5. Fill in the information to set up the Wi-Fi network. Click Next to continue.

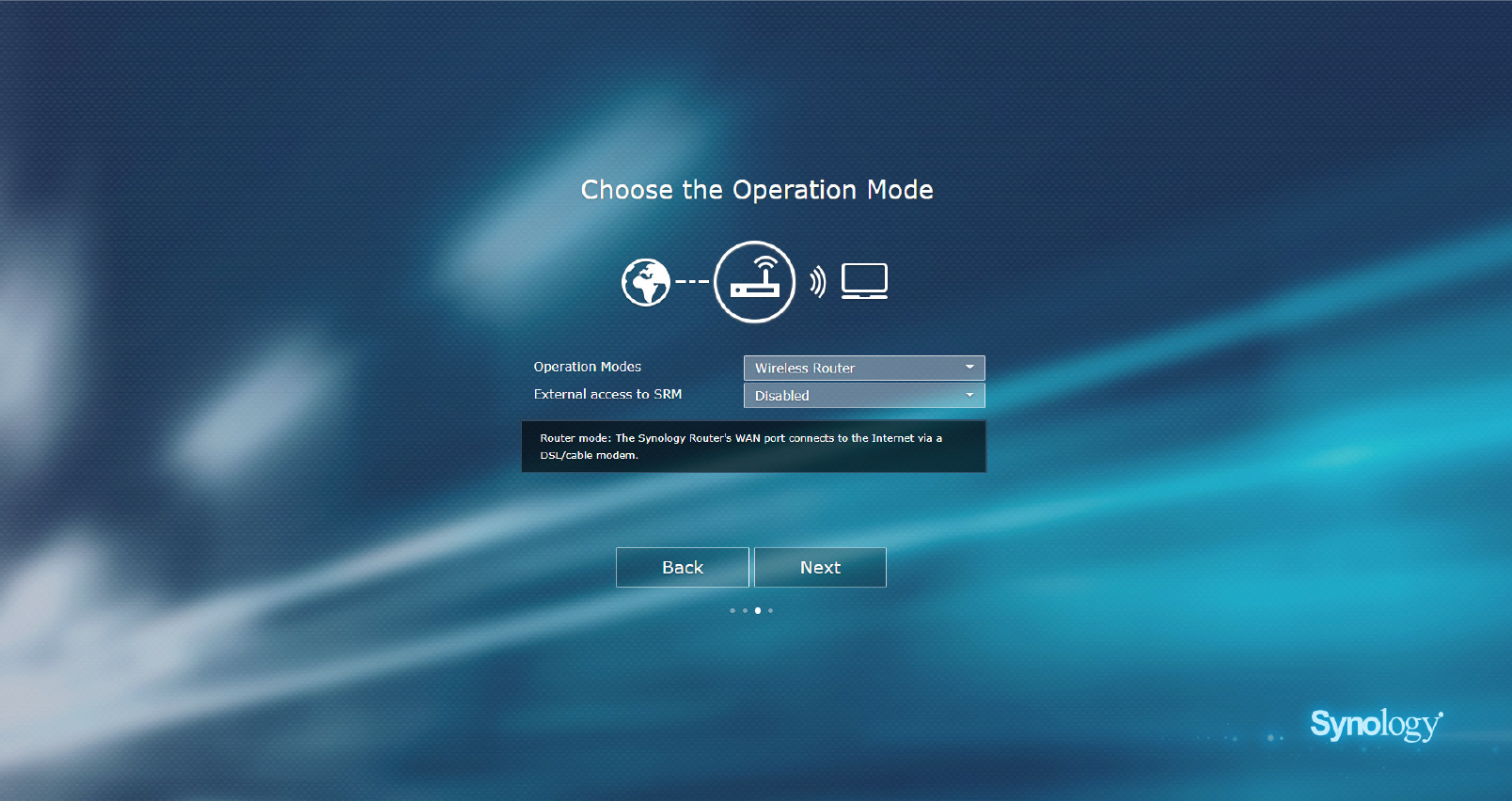

6. Set up the operation mode. When choosing the Wireless Router mode, you can also enable External access to SRM so that only external access via the HTTP(S) port (e.g. 8000/8001) can reach SRM.

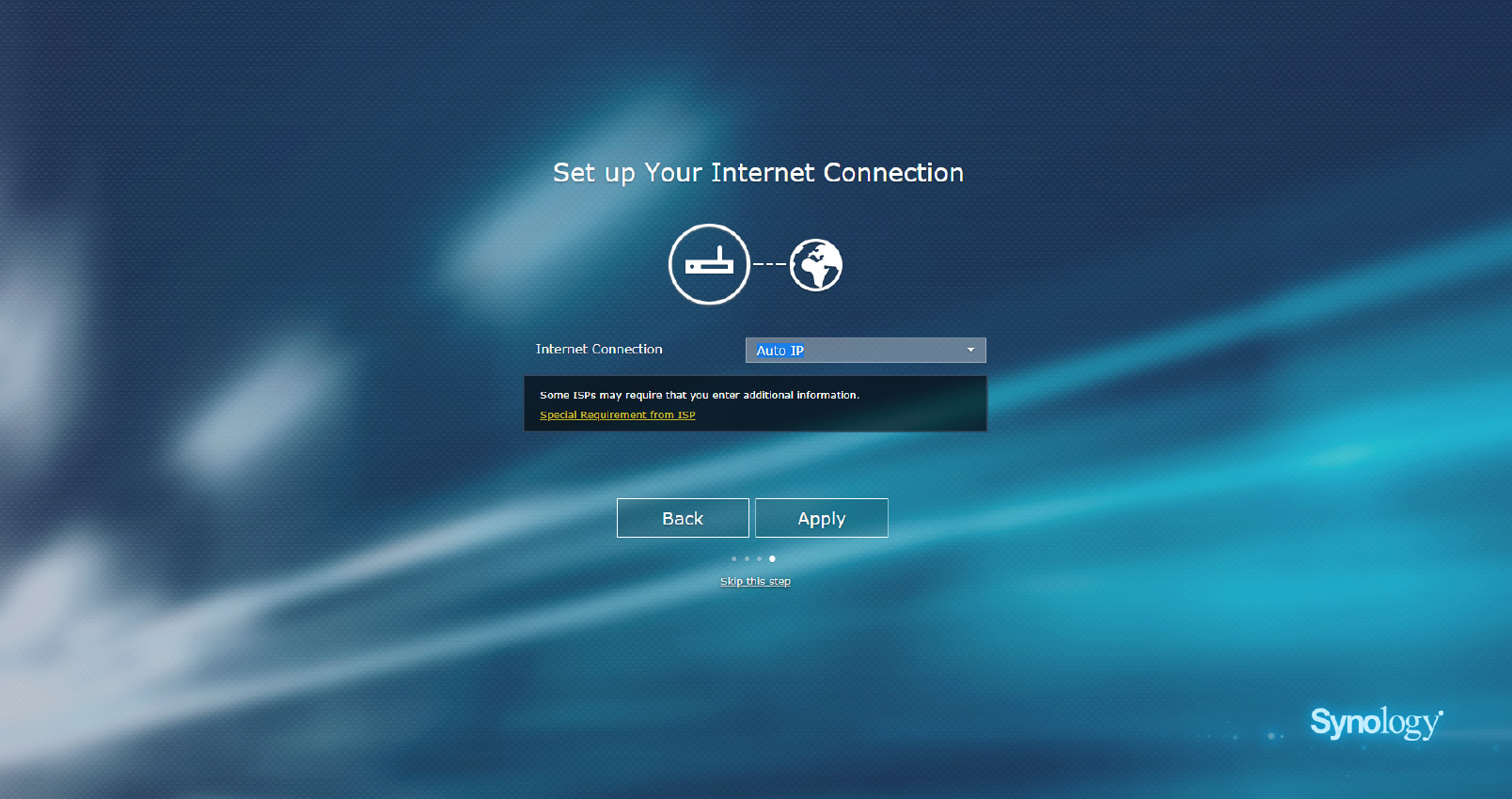

7. Choose an Internet connection type:

   • PPPoE: Choose this option if you have obtained PPPoE credentials from the ISP.

   • Manual IP: Choose this option if you have obtained an available IP address for use.

   • Auto IP: Choose this option if you rely on an ISP modem for automatic IP assignment.

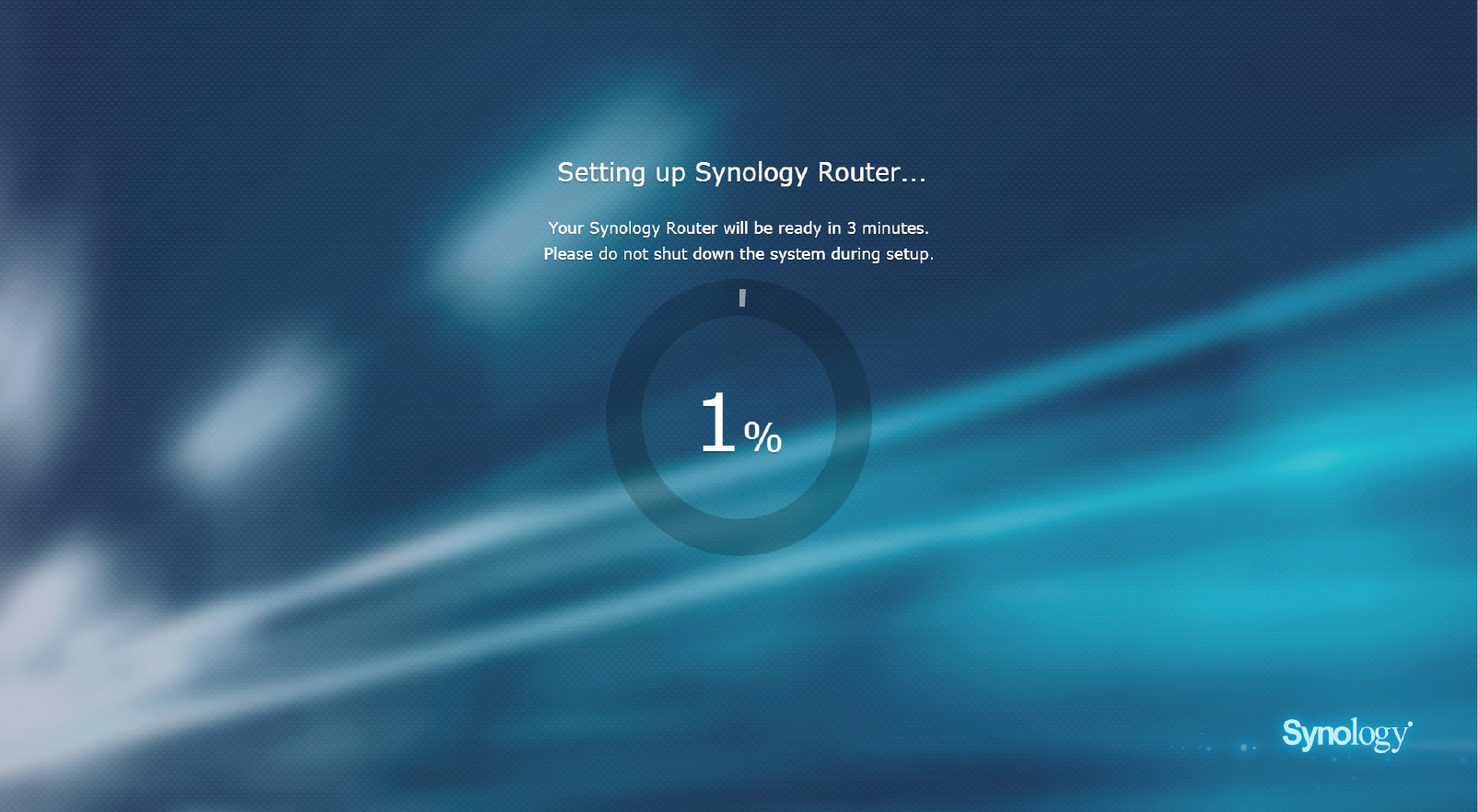

8. The wizard will continue to set up your Synology Router, and it may take up to three minutes to complete the setup.

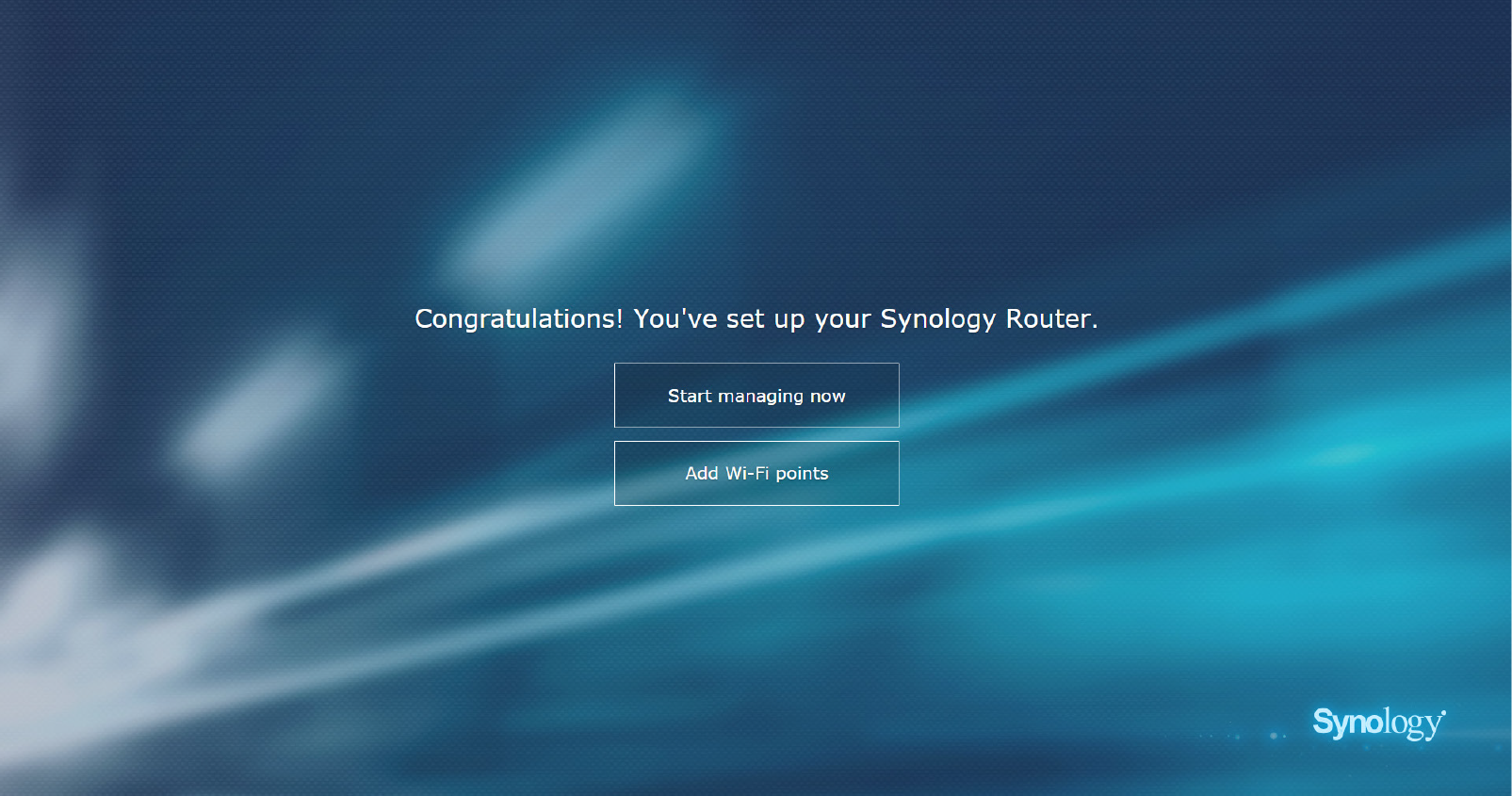

9. After the setup is complete, click Launch Synology Router to enjoy SRM and its various features.

📘

Note: Above is a general demonstration of the SRM setup steps. The steps and available options may somewhat vary depending on your device type (e.g. PC or wireless device), access type (LAN, WAN, or Wireless LAN), and chosen operation mode (Wireless Router or Wireless AP).

Appendix A: Specifications

Item	MR2200ac
Model Description	Synology Wi-Fi Router MR2200ac
External Port	USB 3.0 x 1
WAN Port	Gigabit WAN x 1
LAN Port	Gigabit LAN x 1
Power Adapter	12V/2A
Size (H x W x D) (mm)	154 x 199 x 65
Weight (kg)	0.45 kg
Supported Clients (for SRM management)	Windows 7 and 10 Mac OS X 10.10 onwards
File Systems	External: ext4, ext3, FAT, NTFS, HFS+
Wireless Standards	2.4GHz: 802.11 b/g/n 5GHz-1/5GHz-2: 802.11 a/n/ac
Operating Frequency Range	802.11n (2.4GHz): up to 400 Mbps 802.11ac (5GHz-1/5GHz-2): up to 867 Mbps
Wireless Operation Modes	Wireless Router Wireless AP (Access Point)
Wireless Security	64/128-bit WEP • WPS support WPA2-Personal • WPA/WPA2-Personal WPA2-Enterprise • WPA/WPA2-Enterprise Opportunistic Wireless Encryption (OWE) WPA3-Personal • WPA3-Enterprise WPA2/WPA3-Personal
Hidden Antennas	• 2T2R 2.4GHz/5GHz Tri Band
Buttons & Switches	• WPS • Power • Reset • Wi-Fi On/Off
Language Localization
Environment Requirements	Line voltage: 100V to 240V AC Frequency: 50/60Hz Operating Temperature: 40 to 104˚F (5 to 40˚C) Storage Temperature: -5 to 140˚F (-20 to 60˚C) Relative Humidity: 5% to 95% RH

📘

Note: Model specifications are subject to change without notice. Please refer to www.synology.com for the latest information.

Appendix B: LED Indicator Table

Not configured:

When set up as primary Wi-Fi point:

When set up as additional Wi-Fi point:

🚧

*Important:

1. Finding device: All three indicators will blink simultaneously.

2. Syncing: The three indicators will blink in turn.

📘

Note: Model specifications are subject to change without notice. Please refer to www.synology.com for the latest information.
