Synology NAS DS920+ User Manual Getting Started

Before You Start

Thank you for purchasing this Synology product! Before setting up your new Synology NAS, please check the package contents to verify that you have received the items below. Also, make sure to read the safety instructions carefully to avoid harming yourself or damaging your Synology NAS.

📘

Note: All images below are for illustrative purposes only, and may differ from the actual product.

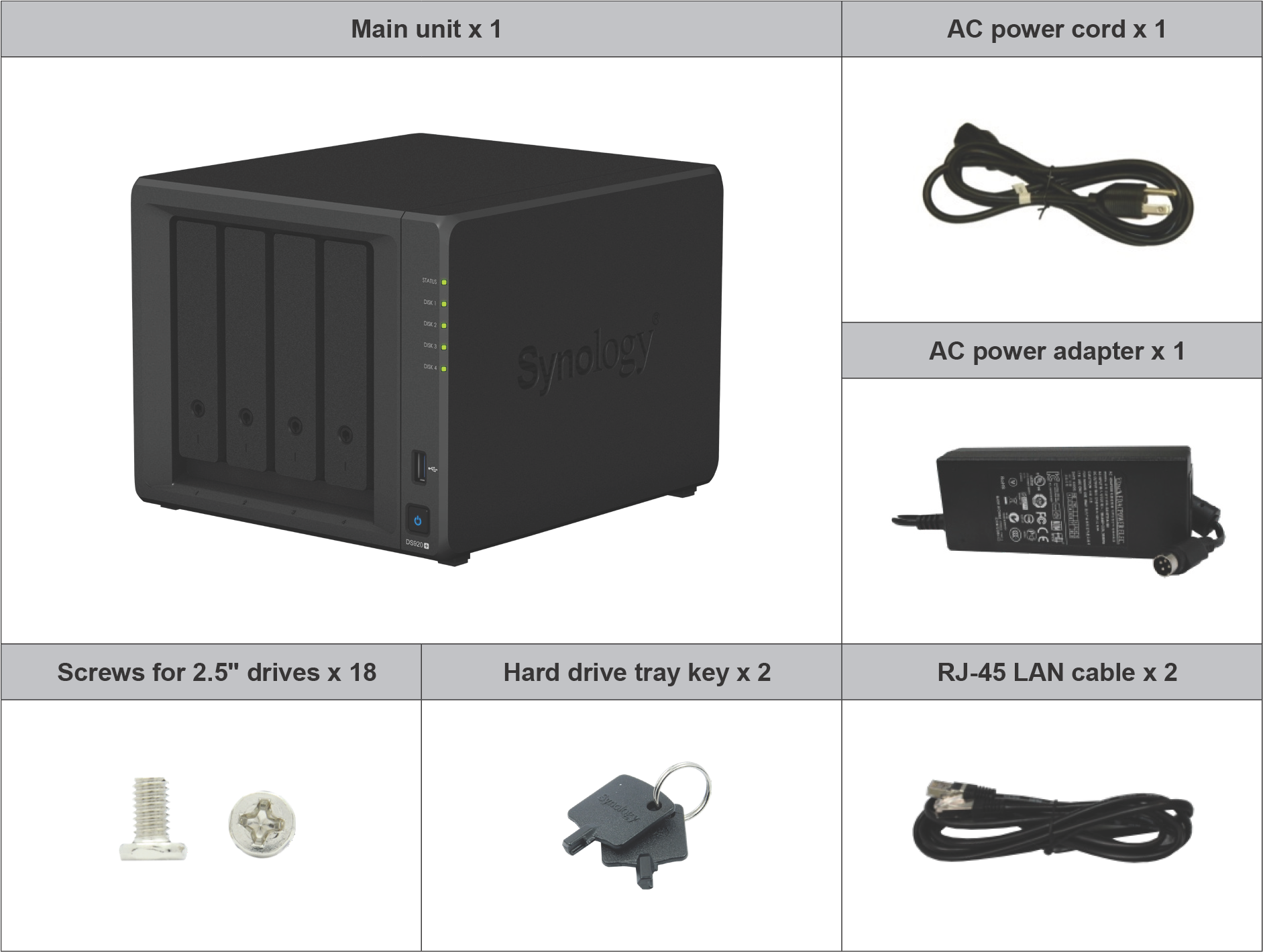

Package Contents

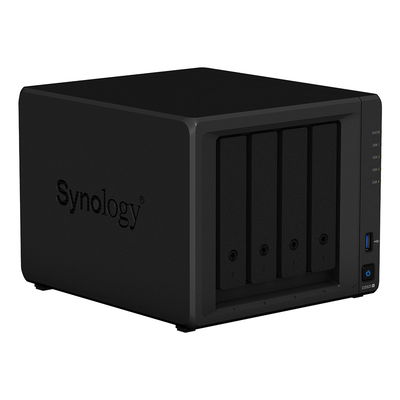

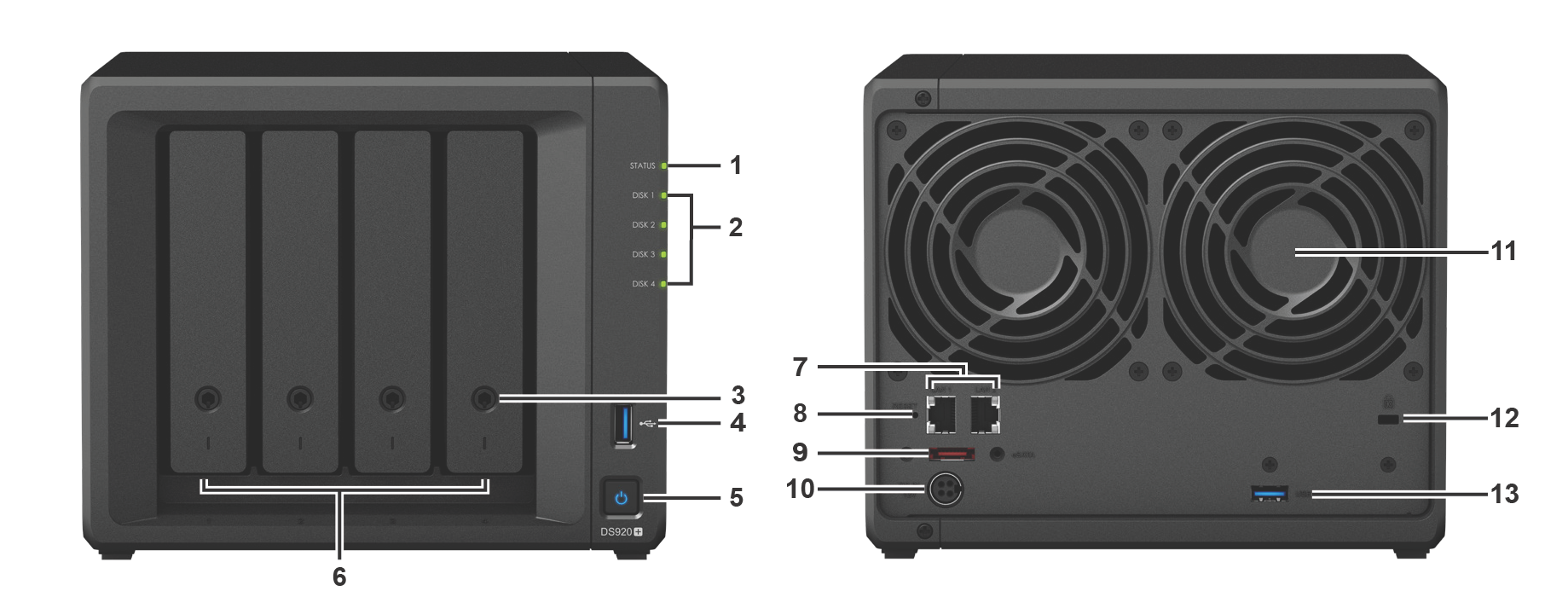

Synology DS920+ at a Glance

📘

1 For more information about Synology Expansion Unit supported by your Synology NAS, please visit www.synology.com.

LED Indicator Table

📘

Note: This table is applicable to Synology NAS running DSM 6.2.3 and earlier. For DSM 6.2.4 and above, please refer to this article for the latest information.

1 Please try to restart your Synology NAS or re-insert the drives, then run the HDD/SSD manufacturer's diagnostic tool to check the health status of the drives. If you can sign in to DSM, please run the built-in S.M.A.R.T. test to scan the drives. If the problem remains unresolved, please contact Synology Technical Support for help.

Hardware Specification

Item	DS920+
Compatible Drive Type	3.5"/2.5" SATA x 4 M.2 2280 NVMe SSD x 2
Maximum Internal Raw Capacity	64 TB (4 x16 TB HDD)
External Port	USB 3.0 x 2 eSATA x 1
LAN Port	1GbE (RJ-45) x 2
Size (H x W x D) (mm)	166 x 199 x 223
Weight (kg)	2.24
Supported Client	Windows 7 and 10 Mac OS X 10.11 onward
File System	Internal: Btrfs, ext4 External: Btrfs, ext4, ext3, FAT, NTFS, HFS+, exFAT1
Supported RAID Type	Basic • JBOD • RAID 0 • RAID 1 RAID 5 • RAID 6 • RAID 10 Synology Hybrid RAID (2-Disk Fault Tolerance)
Agency Certification	FCC Class B • CE Class B • BSMI Class B EAC • VCCI • CCC • RCM • RoHS Compliant
HDD Hibernation	Yes
Scheduled Power On/Off	Yes
Wake on LAN	Yes
Language Localization
Environment Requirement	Line voltage: 100 V to 240 V AC Frequency: 50/60 Hz Operating Temperature: 32 to 104˚F (0 to 40˚C) Storage Temperature: -5 to 140˚F (-20 to 60˚C) Relative Humidity: 5% to 95% RH

📘

Note: Model specifications are subject to change without notice. Please refer to www.synology.com for the latest information.

1 Support for exFAT can be enabled by purchasing and downloading exFAT Access in Package Center.

Optional Accessories

With Synology accessories, you can customize your Synology NAS to fit different business environments without worrying about compatibility and stability. Visit www.synology.com/compatibility for more information.

Memory Module

Model Name	Picture	Description

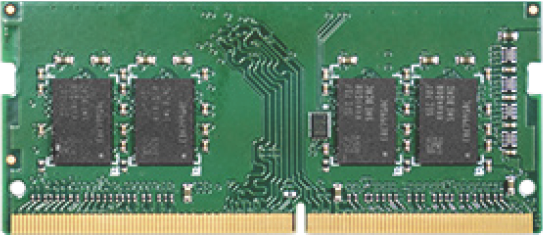

D4NESO-2666-4G		DDR4 non-ECC unbuffered SO-DIMM 4GB

Spare Parts

Visit www.synology.com/products/spare_parts if you need to replace system fans, disk trays, or power supply units.

Model Name	Picture	Description

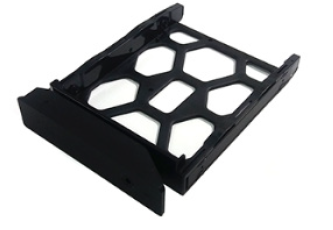

Disk Tray (Type D9)		3.5"/2.5" HDD Tray With Lock

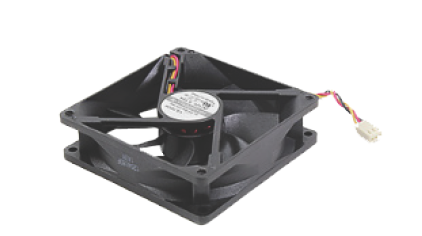

Fan 92*92*25_1		System Fan 92*92*25 mm

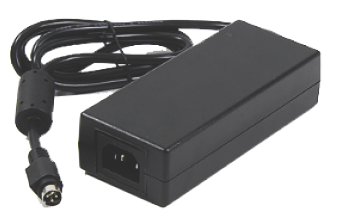

Adapter 100W_2		Adapter 100W Level VI

Safety Instructions

	Keep away from direct sunlight and from chemicals. Make sure the environment does not experience abrupt changes in temperature or humidity.
	Place the product right side up at all times.
	Do not place near any liquids.
	Before cleaning, unplug the power cord. Wipe with damp paper towels. Do not use chemical or aerosol cleaners.
	To prevent the unit from falling over, do not place on carts or any unstable surfaces.
	The power cord must plug in to the correct supply voltage. Make sure that the supplied AC voltage is correct and stable.
	To remove all electric current from the device, ensure that all power cords are disconnected from the power source.
	Risk of explosion if battery is replaced with an incorrect type. Dispose of used batteries appropriately.

Hardware Setup

Tools and Parts for Component Installation

Please prepare the following tools and parts before setting up your Synology NAS:

• A screwdriver (only for 2.5" drives)

• At least one 3.5" or 2.5" SATA drive (please visit www.synology.com/compatibility for compatible drive models)

🚧

Warning: If you install a drive that contains data, the system will format the drive and erase all existing data. Please back up any important data before installation.

Install Drives

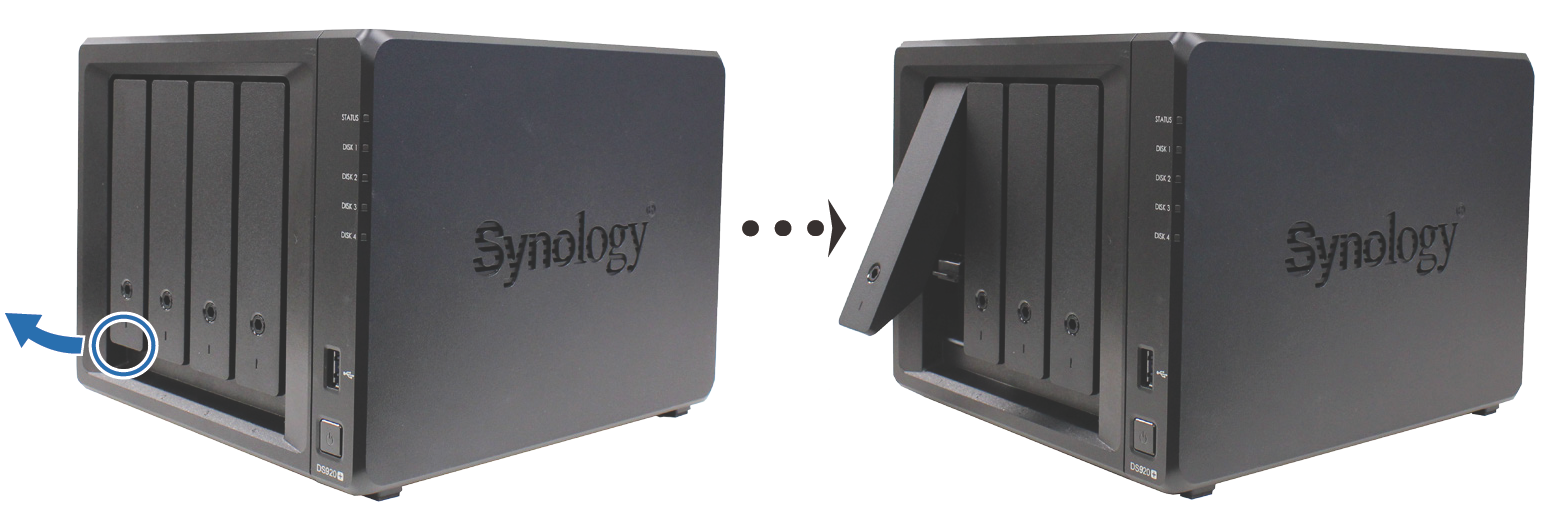

1. To remove the drive tray, pull on the circled area in the indicated direction as shown in the image below.

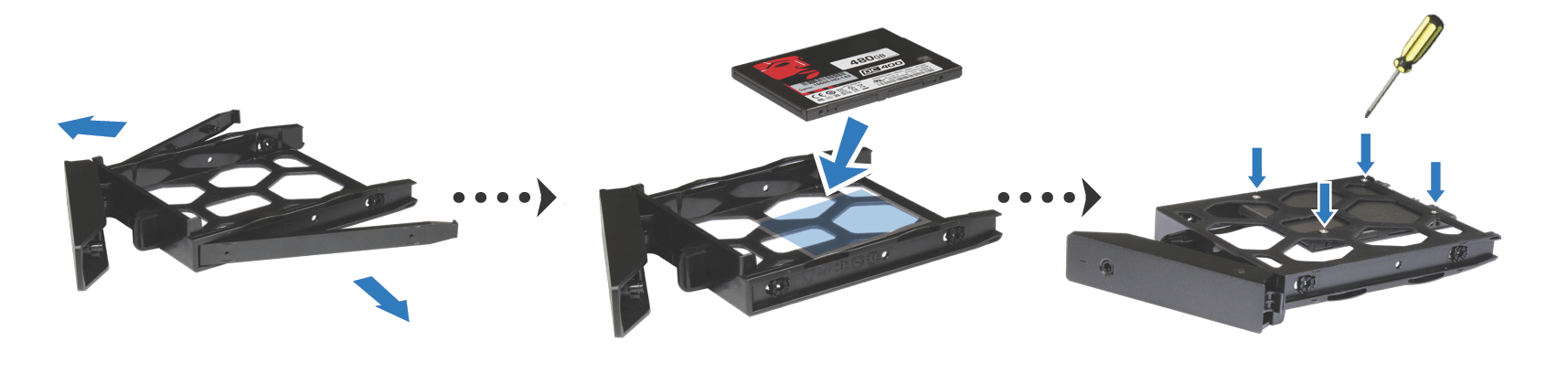

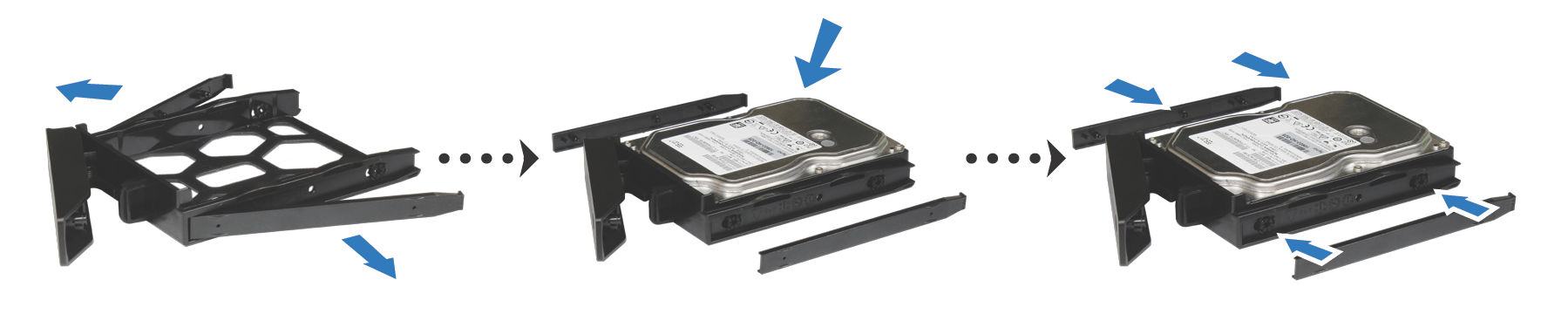

2. Load drives in the drive trays.

   • For 3.5" drives: Remove the fastening panels from the sides of the drive tray. Place the drive in the drive tray. Then insert the fastening panels to secure the drive in place.

   • For 2.5" drives: Remove the fastening panels from the sides of the drive tray and store them in a safe place. Place the drive in the area of the drive tray indicated by a blue rectangle below. Turn the tray upside down and tighten the screws to secure the drive in place.

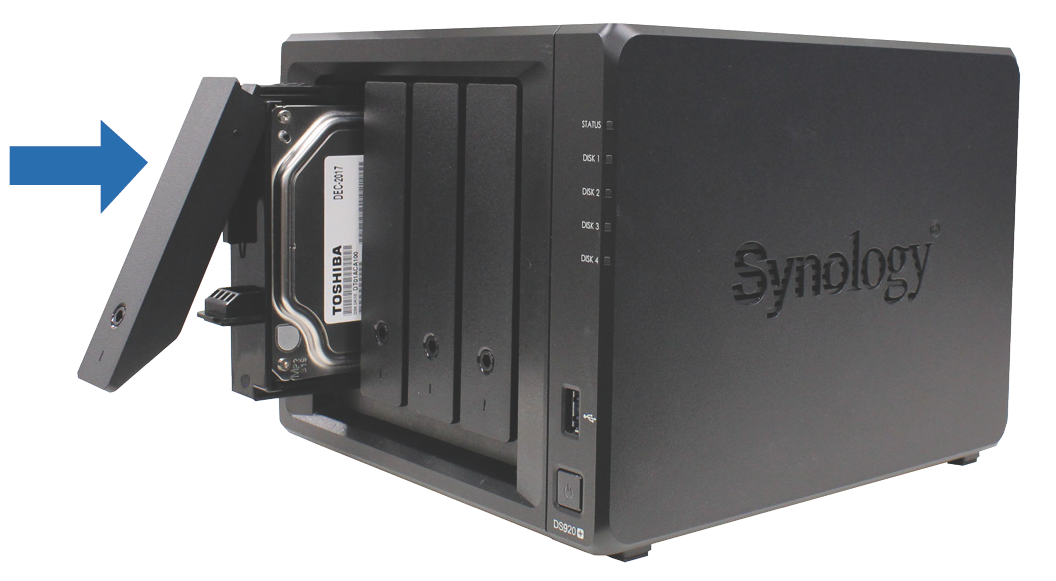

3. Insert the loaded drive tray into the empty drive bay and push it back until you hear a click when the tray is locked into place.

4. Repeat the steps above to install the other drives you have prepared.

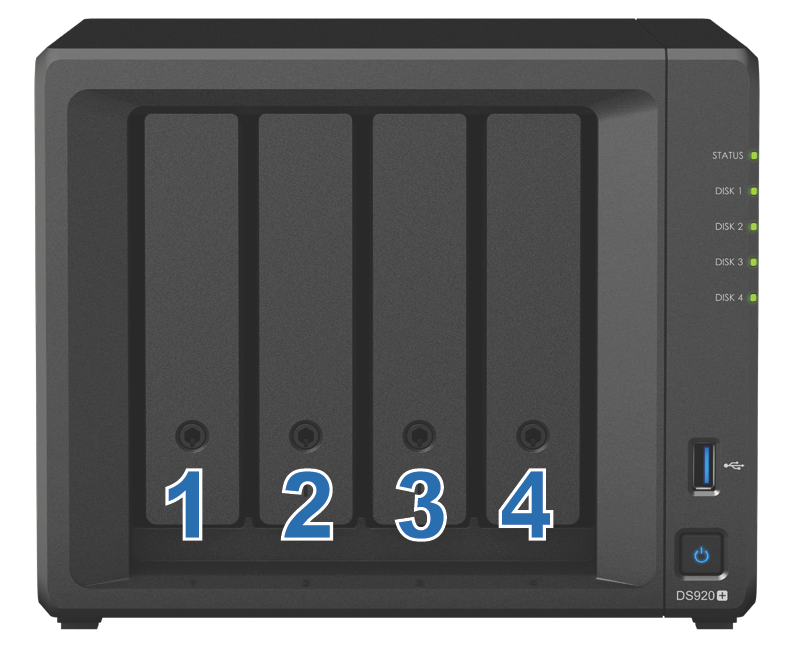

5. Drives are numbered as shown below.

📘

Note: If you plan to create a RAID volume, we recommend installing drives of identical size to make the best use of drive capacity.

Start Up Your Synology NAS

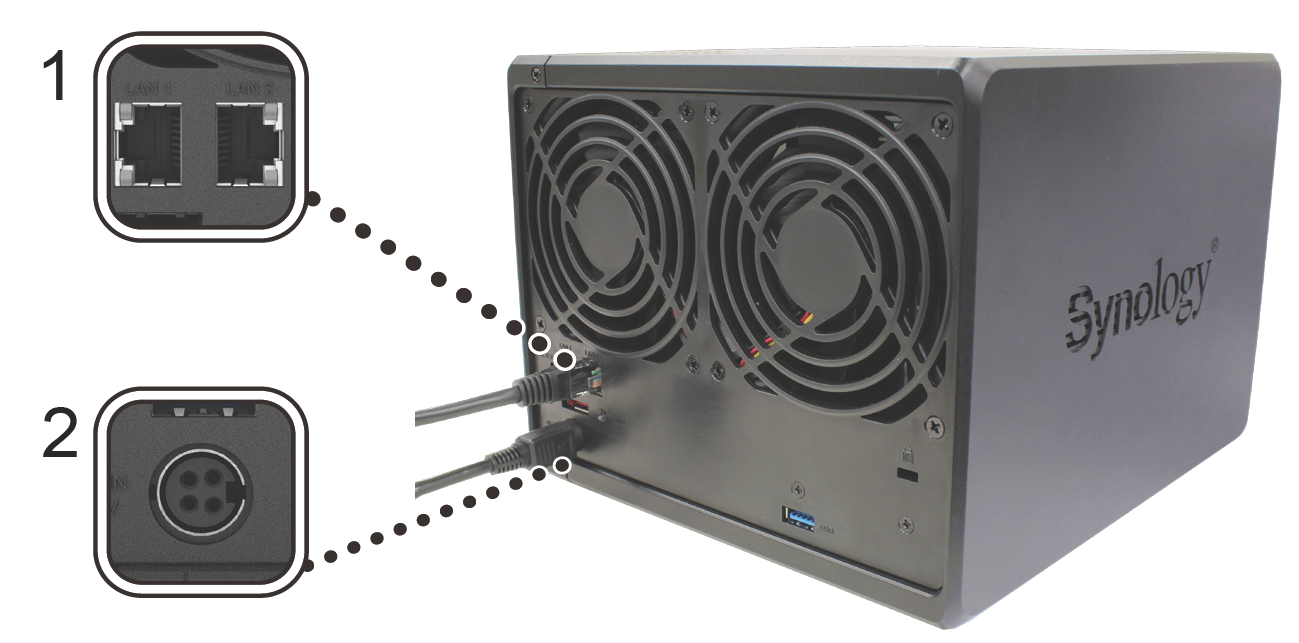

1. Use the LAN cable to connect the Synology NAS to your switch, router, or hub.

2. Connect one end of the AC power adapter to the power port of your Synology NAS. Connect one end of the AC power cord to the AC power adapter, and the other to the power outlet.

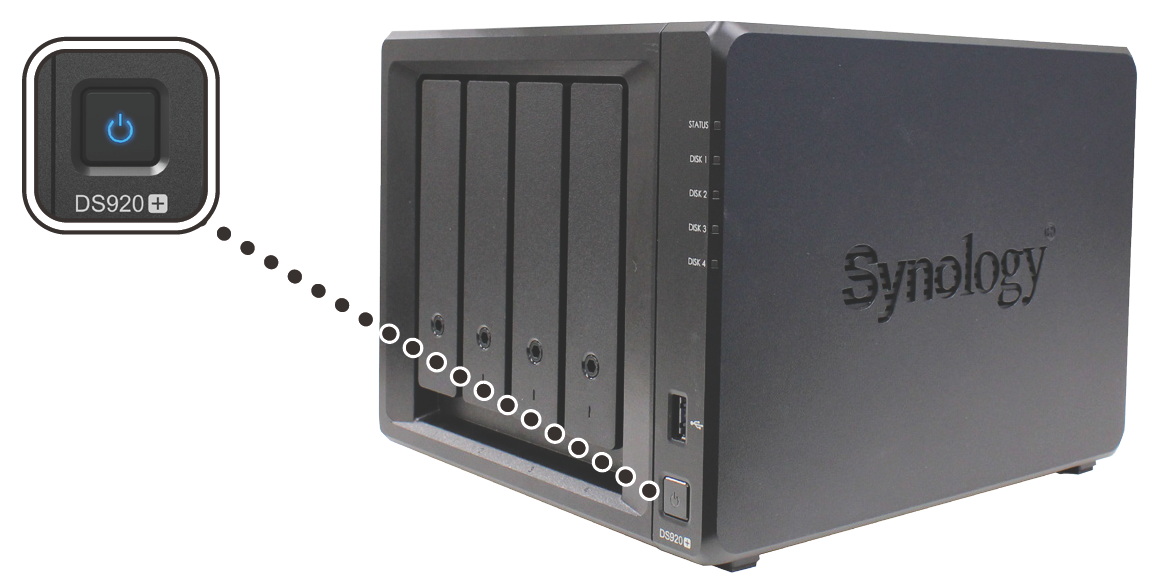

3. Press the power button to turn on your Synology NAS.



   Congratulations! Your Synology NAS is now online and detectable from a network computer.

Add a Memory Module to Synology NAS

Optional Synology memory modules are designed to expand the memory of your Synology NAS. Follow the steps below to install, check, or remove a memory module on your Synology NAS.

To install the memory module

1. Shut down your Synology NAS. Disconnect all cables from your Synology NAS to prevent possible damage.

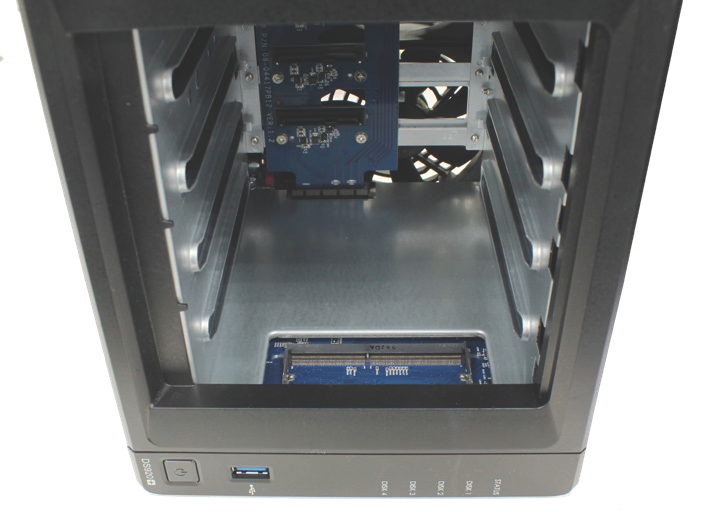

2. Remove the hard drive trays from the drive bays. An empty memory slot is located on the inner right side of your Synology NAS.



   📘

   Note: When you remove the drive trays, sensitive internal components are exposed. Avoid touching anything other than the memory assembly when removing or adding memory.

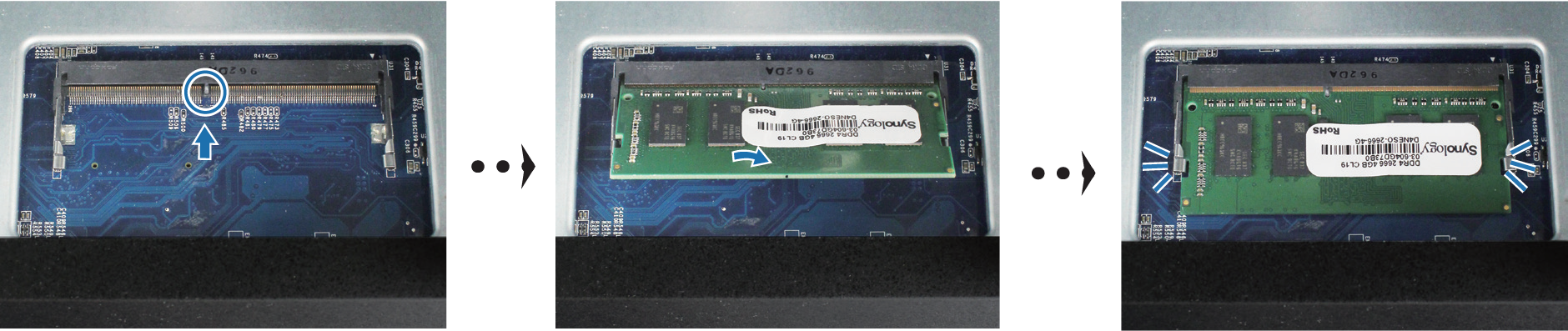

3. Insert the new memory module into the empty slot:

   • Align the small gap between the gold connectors of the memory module with the notch on the empty slot. Insert the memory module into the slot. Make sure that the module is properly inserted.

   • Gently push down the memory module until you hear a click.




   📘

   Note:

   • Hold the memory module by its edges and avoid touching the gold connectors.

   • Synology will not provide full product warranty or technical support if a non-Synology memory module is used for memory upgrade.

4. Insert the drive trays back into the drive bays.

5. Reconnect the cables removed in step 1, then press the power button to turn on your Synology NAS.

To make sure your Synology NAS recognizes the new memory capacity

1. Install DiskStation Manager (DSM). Please see "Install DSM on Synology NAS" for more information.

2. Sign into to DSM as admin or a user belonging to the administrators group.

3. Go to Control Panel > Info Center and check Total Physical Memory.

If your Synology NAS does not recognize the memory or does not start up successfully, please make sure that the memory module is installed correctly.

To remove the memory module

1. Follow step 1 and 2 of the "To install the memory module" section to shut down your Synology NAS, disconnect the cables and remove the drive trays.

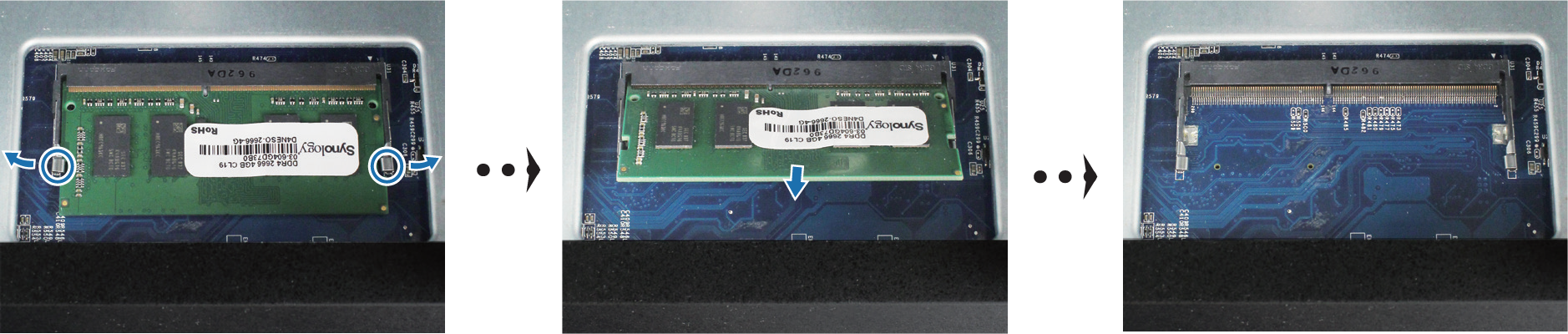

2. Push the levers on both sides of the memory module outward. The memory module will be released from its slot.

3. Hold the memory module by its edges and remove it from the slot.

4. Insert the drive trays back into the drive bays.

5. Reconnect the cables removed in step 1, then press the power button to turn on your Synology NAS.

Add an M.2 NVMe SSD to Synology NAS

You can install up to two M.2 NVMe 2280 SSDs on your Synology NAS to create an SSD cache volume. Follow the steps below for SSD module installation and removal.

To install an M.2 NVMe SSD module

1. Shut down your Synology NAS. Disconnect all cables from your Synology NAS to prevent possible damage.

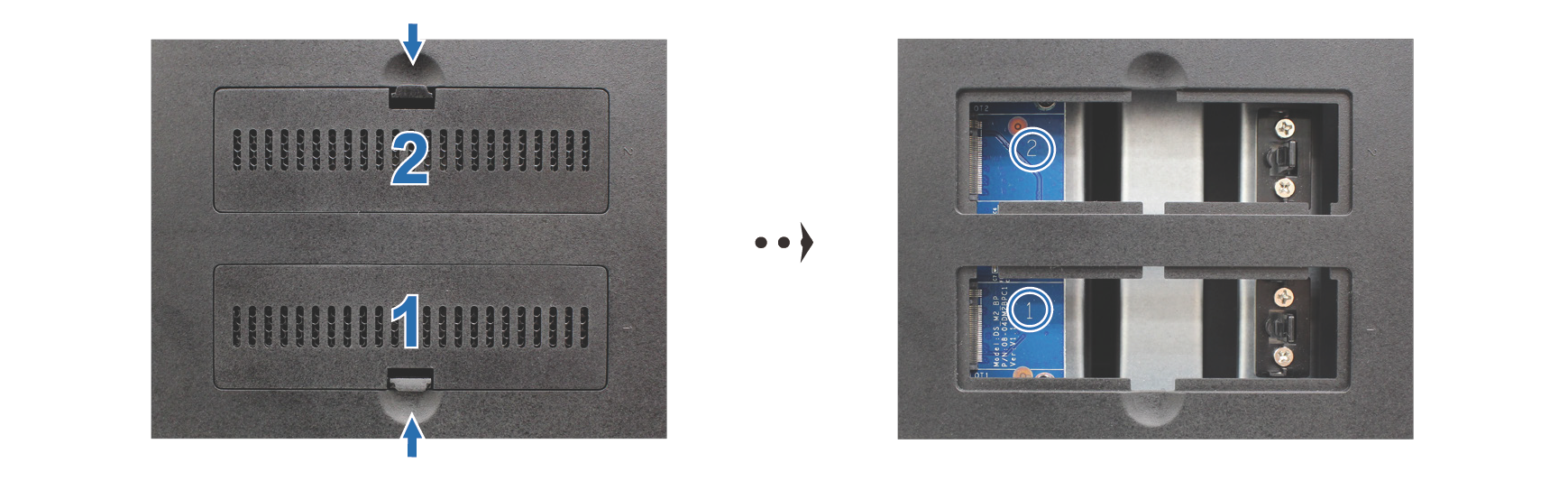

2. The SSD slots are located at the bottom of your Synology NAS.

3. Remove the two covers protecting the modules. You will see two empty slots that are numbered as shown below.

   📘

   Note: Hold the SSD module by its edge and avoid touching the gold connectors.

4. Start from the slot 1. Insert your SSD module into the empty slot:

   • Align the small gap between the gold connectors of the SSD module with the notch in the empty slot. Insert the module into the slot. Make sure that the module is properly inserted.

   • Push the lever outward as shown below. While holding the lever, push down the SSD module, then release the lever to secure the SSD module. Replace the covers.

5. If needed, repeat the steps above to install a second SSD module into the second slot.

6. Reconnect the cables removed in step 1, then press the power button to turn on your Synology NAS.

To remove the M.2 NVMe SSD module

1. Shut down your Synology NAS. Disconnect all cables from your Synology NAS to prevent possible damage.

2. Push the lever outward. The module will pop up and be released from the slot.

3. Hold the SSD module and remove it from the slot. Replace the covers.

4. Reconnect the cables removed in step 1, then press the power button to turn on your Synology NAS.

System Maintenance

Initial Troubleshooting Guide

We have selected several helpful articles on frequently asked questions to help you perform initial troubleshooting on your Synology NAS. To view the articles, please click the links provided below:

• General

• What can I do to troubleshoot NAS connection problems?

• Why does my Synology NAS make unusual noises?

• How to reset my Synology NAS

• Hard Disk Drive

• How to choose a suitable HDD for my Synology NAS/IP SAN

• How to diagnose drives' health status when receiving bad sector warning?

• How to fix drive failure and retrieve the data from your drives

• What should I do if my Synology NAS cannot recognize installed drives?

• How do I know whether the problem is with my Synology NAS or drive when drive errors occur?

• Memory

• How can I run a memory test on my Synology NAS?

• LED

• How do I recognize a hibernating Synology NAS via the LED indicators?

• What can I do if the STATUS LED keeps flashing orange?

• Why can't my Synology NAS be powered on and why is the POWER LED indicator blinking constantly?

• Fan

• What type of fan speed modes are available on my Synology NAS?

Install DSM on Synology NAS

After hardware setup is completed, please install DiskStation Manager (DSM) – Synology's browser-based operating system – on your DS920+.

Install DSM with Web Assistant

Your DS920+ comes with a built-in tool called Web Assistant that helps you download the latest version of DSM from the Internet and install it on your DS920+. To use Web Assistant, please follow the steps below.

1. Power on your DS920+.

2. Open a web browser on a computer connected to the same network as the DS920+.

3. Enter either of the following into the address bar of your browser:

   a find.synology.com
   b synologynas:5000

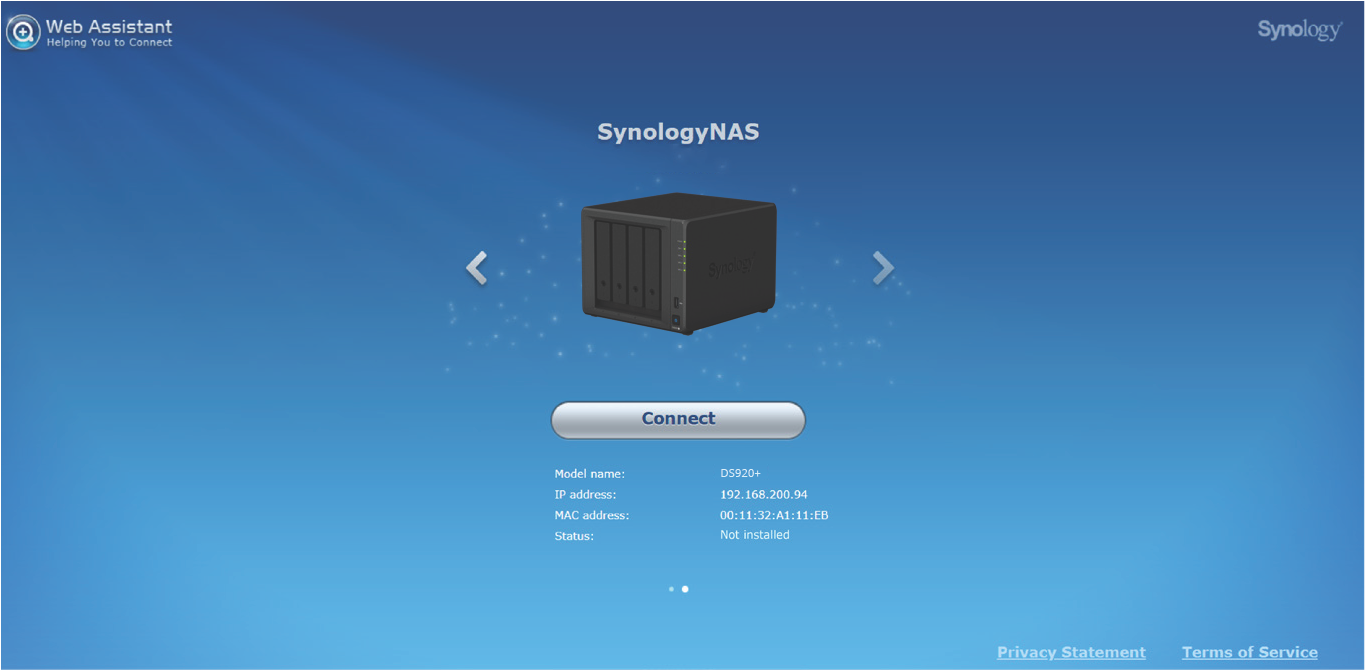

4. Web Assistant will be launched in your web browser. It will search for and find the Synology NAS within the local network. The status of the DS920+ should be Not Installed.



5. Click Connect to start the setup process and follow the onscreen instructions.

   📘

   Note:

   • The Synology NAS must be connected to the Internet to install DSM with Web Assistant.

   • Recommended browsers: Chrome, Firefox.

   • Both the Synology NAS and the computer must be in the same local network.

6. If you accidentally leave the installation process before it is finished, sign into DSM as admin (default administrative account name) with the password left blank.

Learn More

Your DS920+ is now ready for action. For more information or online resources about your DS920+, please visit www.synology.com.
