Blackmagic ATEM Mini Extreme Manual

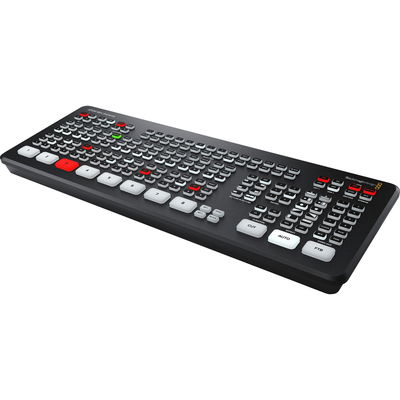

The ATEM Mini Extreme is a switcher designed for professionals that offers advanced features. In addition to the features of the ATEM Mini Pro, it includes 8 HDMI inputs, 2 HDMI outputs, 2 USB ports, and a headphone connection. It also has 4 chroma keyers, 6 picture-in-picture DVEs, 2 media players, and a multiview display with up to 16 views.
