Blackmagic HyperDeck Studio HD Plus Manual

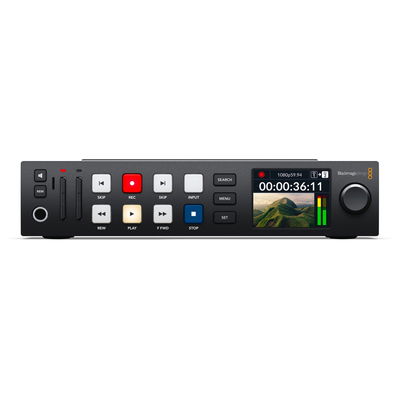

The HyperDeck Studio HD Plus, a larger variant of the Mini, includes additional controls and connections. It supports 6G-SDI for recording and playback of ProRes up to Ultra HD 30fps, and has SDI loop out and HDR support. Additional features include two 6G-SDI outputs for fill and key playback up to 1080p60, HDMI input, dedicated 3G-SDI monitoring output with overlays, and RS-422 remote output. The device includes enhanced front panel controls, a headphone jack, and a built-in speaker, with power provided through a broadcast-style XLR connector.
