Blackmagic HyperDeck Extreme Control Manual

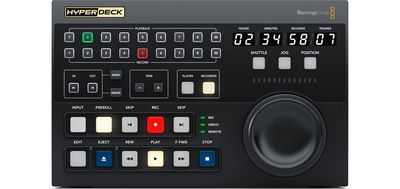

The HyperDeck Extreme Control brings traditional broadcast deck functionality to the HyperDeck Extreme 8K. With its intuitive layout, it mirrors the operation of a conventional broadcast deck. This system can control up to 8 decks, utilizing the industry-standard RS-422 control, making it a seamless addition to your professional broadcasting setup.
